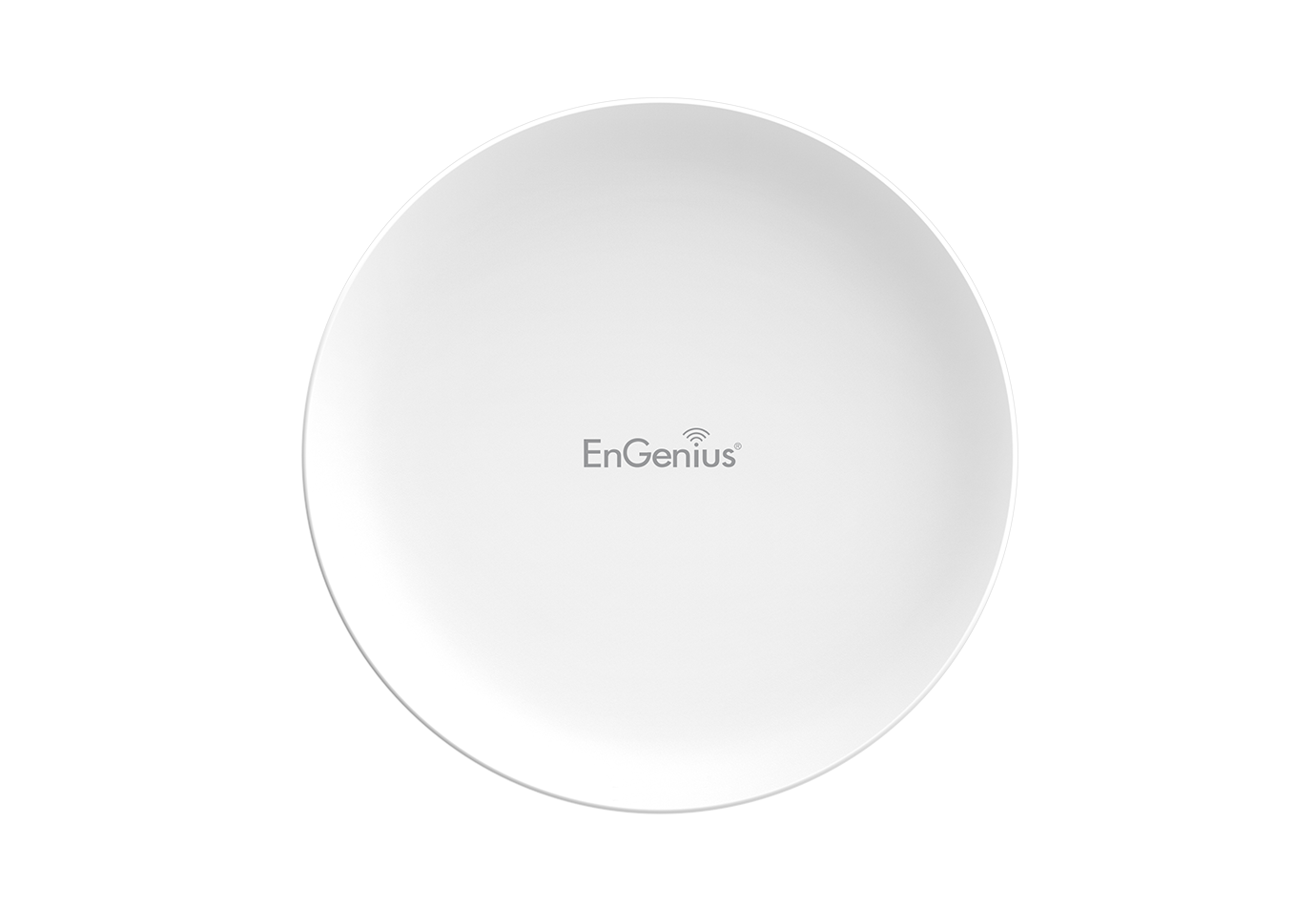

EOC610は、一般的なCPEを超える長距離通信が求められるラストマイル加入者リンク向けのブロードバンド屋外用CPEです。高利得19 dBi統合指向性アンテナが信号をより狭いビームに集束し、最大1.2 Gbpsのリンク容量を維持しながら、ポイント・ツー・ポイント（PtP）接続を最大3kmまで延伸します。
OFDMA、ビームフォーミング、MU-MIMOを採用したIEEE 802.11axにより、セクターの利用密度が高まった環境でも実用的なスループットを確保。自動チャネル選択、ダイナミックデータレート、継続的なRF補正により、長距離リンクやノイズの多いRF環境における接続安定性を向上します。専用モバイルアプリは、アンテナアライメントとトラブルシューティングを1人で効率的に実施できるよう支援します。
IPQ5018+QCN6102, QCA8337
IEEE 802.11a/n/ac/ax on 5 GHz
DDR3 512MB, Flash 128MB
2x 2.4GHz: –
2x 5GHz -: 19dBi
1 x 10/100/1000 BASE-T(Proprietary PoE)
1 x 10/100/1000 BASE-T
Proceed reset and reboot when pushing this button
Proprietary 54V (EPA5006GR)
Base station(BSU)/Subscriber(SU)
4
Proprietary polling based OFDMA Scheduling Protocol
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
20 / 40 / 80 / 160 MHz
5 MHz
Up to 26 dBm (Combined)
Automatically detect optimal data rate for given link
Selects optimal channel to operate to maintain SLAs (CIR & MIR)
Automatically adapt the transmit power
Auto Channel Selection(ACS), Dynamic Channel Selection(DCS), Background Scan(BG Scan) features aid to adapt to varying RF medium
AES 256
Provides RF medium statistics
2x 2:2
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
1x GE Proprietary PoE Port
1x GE Port
10/100/1000Mbps, Half/Full Duplex, Auto Negotiation
9K bytes
Passive 54V /0.6A
STP Cat5e: MAX 130 meters
FTP Cat6: MAX 180 meters
1KV
PoE: Max. 11W
v1, v2c, v3
Internal MAC Address Control List, Radius based Authentication
Downlink and Uplink traffic shaping
SSH, Web, TFTP, HTTP, HTTPS, Syslog
Android & IOS based Application for Radio Management
Alignment aid provided via variable audible tone generation algorithm
Bridging
IPv4, IPv6
802.1Q: Transparent, Access, Trunk, Q-in-Q
DHCP Server
To improve the multicast traffic performance, IGMP Snooping
Fault Link Management
MAC, IP, Protocol, Port
Stratum 1 NTP Server using external server – less than 1msec accuracy
Asymmetric UL/DL committed and maximum information rate per Service Flow
802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s
Real Time priority-based services
Operation: -20°C~60°C/-4°F~140°F
Storage: -40°C~80°C/-40°F~176°F
Storage: 90% or less
IP55
165 Kmph
Contact: 4KV Air: 8KV
558g
Φ190 x 38 mm
1 – EOC610 Outdoor CPE
1 – EPA5006GR with AC cord

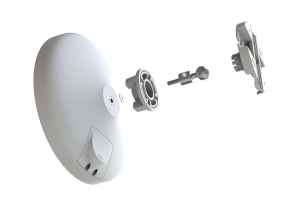

2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
1 – Product Card
CB
Yes
Yes
FCC
CE
IC
UKCA
VCCI
100K hours
Broadband Outdoor CPE |
Broadband Outdoor Access Point |
|||
|---|---|---|---|---|
| Model Number | EOC610 | EOC655-C18 | ||
| Chipset | IPQ5018+QCN6102, QCA8337 | IPQ5018 + QCN6102 + QCN9072 + QCA8081 | ||
| Radio | 5GHz | 5 GHz / 5GHz | ||
| Management Radio | 2.4GHz | 2.4GHz | ||
| Data Rate (2.4 GHz) | - | - | ||
| Data Rate (5 GHz) | 1200 Mbps | up to 2.4 Gbps | ||
| Radio Chains | 2 x 2:2 | 2 x 2:2 | ||
| Tx Power (2.4 GHz) | 15dBm | 25dBm | ||
| Tx Power (5 GHz) | 26dBm | 27dBm / 24dBm | ||
| Antennas (2.4 GHz) | 3.9dBi | 3.5dBi | ||
| Antennas (5 GHz) | 19 dBi (Port1: 25°x20°; Port2: 17°x24°) | 18dBi / N-Type | ||
| Antenna Beamwidth | Azimuth:25°, Elevation:24° | Azimuth:15°, Elevation:15° | ||
| Power-over-Ethernet | Proprietary 54V | 802.3af/at / Proprietary 56V | ||
| Ethernet Ports | 1x GE Proprietary PoE Port ; 1x GE Port | 1x 2.5G Proprietary Port ; 1x GE PoE+ Port ; 6KV Cable Surge Protection on all Ethernet Ports | ||

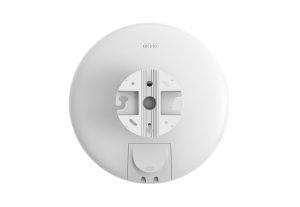

| Mounting Type | Wall/Pole mount | Pole mount | ||
| IP Rating | IP55 | IP67 | ||
| Dimensions | Φ190 x 38 mm | 267x227x82mm;267*255.1*82mm (w/n-type & cable gland) | ||
| Operating Modes | Base station(BSU)/Subscriber(SU) | - | ||
| MU-MIMO | Yes | Yes | ||
| GPS | - | Yes | ||
| Compass | - | Yes | ||
| Dying Gasp | - | Yes | ||
| Mobile app | Yes(SkyConnect) | Yes(SkyConnect) | ||
|
