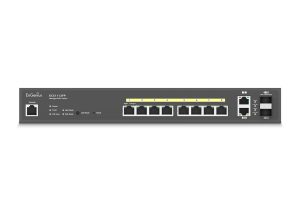

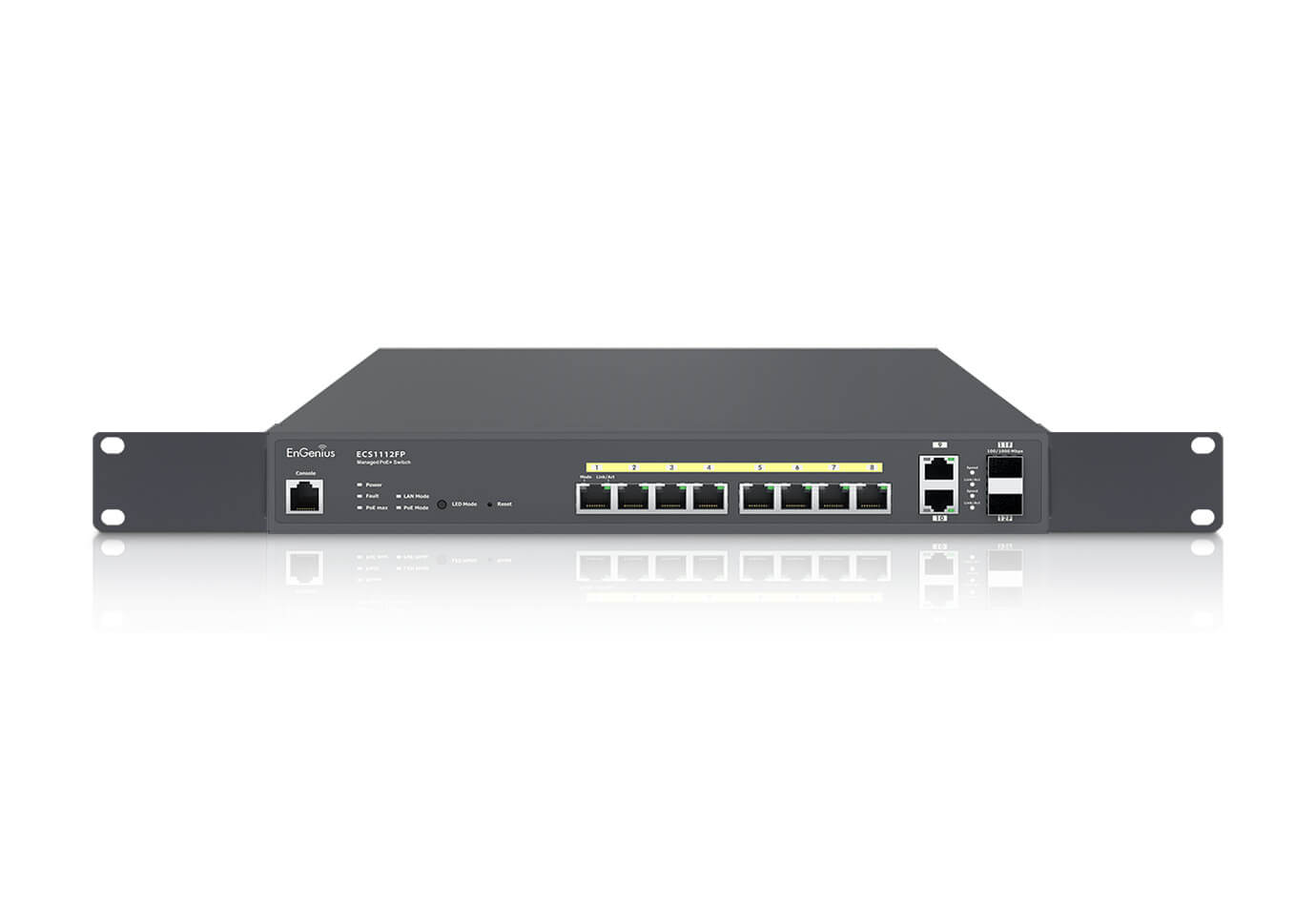

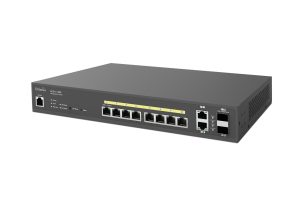

CloudSwitch L2Plus 8 Full PoE

雲端管理型 8埠130W PoE+網路交換器

ECS1112FP

Product Highlight

ECS1112FP 8埠PoE+管理型交換器提供130W的功率預算以及2個GbE和2個上行SFP連接埠。你可以實際根據網路架構、管理權限、技術能力甚至預算,選擇雲端或本地的網路管理。交換器的企業級功能優化了網路效率,讓中小企業能實現最佳的網路效能。

  • 可由EnGenius Cloud或 ezMaster平台管理
  • 8個 Gigabit PoE+連接埠
  • 連結埠1-8支援3af/at PoE+網路線供電,總功率預算為130W
  • 2個Gigabit有線網路埠和2個上行雙速SFP光纖連接埠
  • 13” 1U機架式,功能完整的Layer 2+網路交換器

Technical Specifications

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

10 10/100/1000 Mbps Ports + 2x SFP Ports

Switching Capacity

24Gbps

SDRAM

256MB

Flash Memory

32MB

PoE Capable Ports

1-8

Total PoE Budget

130w

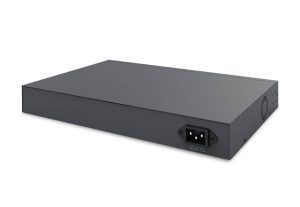

Power Source

100 ~ 240VAC, 50-60Hz

Physical Interface

System Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud

Local Web GUI

MAC Address Table

8K

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported/

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

Operating: 5% – 95%



Dimensions & Weight

ECS1112FP Device

Weight: 1.9Kg
Width: 330mm
Length: 230mm
Height: 44mm

Package Contents

1x Cloud Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

CloudSwitch L2Plus 8 Full PoE

CloudSwitch Aggregate 8XG Full PoE

CloudSwitch MGPlus 8 Full PoE

CloudSwitch L2Plus 48 Full PoE

CloudSwitch L2Plus 48

CloudSwitch L2Plus 24 Full PoE

CloudSwitch L2Plus 24

CloudSwitch L2Plus 8 PoE

Model Number ECS1112FP ECS5512FP ECS2512FP ECS1552FP ECS1552 ECS1528FP ECS1528T ECS1008P
交換器等級 Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
千兆(Gigabit)連接埠 10 - - 48 48 24 24 8
多兆(Multi-G)連接埠 - 8 x 10G 8 x 2.5G - - - - -
SFP光纖連接埠 2 x 1G - - - - - - -
SFP+光纖連接埠 - 4 4 4 4 4 4 -
RJ45網管介面連接埠 Yes Yes Yes Yes Yes Yes Yes -
PoE供電連接埠 Ports 1-8 Ports 1-8 Ports 1-8 Ports 1-48 - Ports 1 - 24 - Ports 1-8
PoE供電標準 802.3af/at 802.3af/at/bt 802.3af/at/bt 802.3af/at - 802.3af/at - 802.3af/at
PoE總功率預算 130W 420 W 240 W 740W - 410W - 55W
安裝形式 13” 1U 13” 1U 13” 1U 19” 1U 19"1U 19” 1U 13"1U 9.45" (Desktop)
交換能力 24Gbps 240 Gbps 120 Gbps 176 Gbps 176 Gbps 128 Gbps 128 Gbps 16 Gbps
Packet Forwarding Rate 17.856Mpps 178.57 Mpps 89.29 Mpps 130.95Mpps 130.95Mpps 95.23Mpps 95.23Mpps 11.904Mpps
MAC地址大小 8k 32K 16k 32K 32K 16k 16K 8k
Packet Buffer Memory 512KB 2MB 512KB 2MB 2MB 1.5MB 1.5MB 512KB
Full load Power consumption 152.8 Watts 506.7 Watts 299 Watts 885 Watts 43.92 Watts 500.46 Watts 24.41 Watts 62.05 Watts
Continuous PoE Power Yes - - Yes Yes Yes - Yes
尺寸 330 x 230 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 440 x 310 x 44 mm 440 x 260 x 44 mm 440 x 260 x 44 mm 330 x 230 x 44 mm 240 x 105 x 27 mm
雲端管理模式 Yes Yes Yes Yes Yes Yes Yes Yes
本地管理模式 Yes Yes Yes Yes Yes Yes Yes Yes
單機運作模式 Yes Yes Yes Yes Yes Yes Yes Yes
