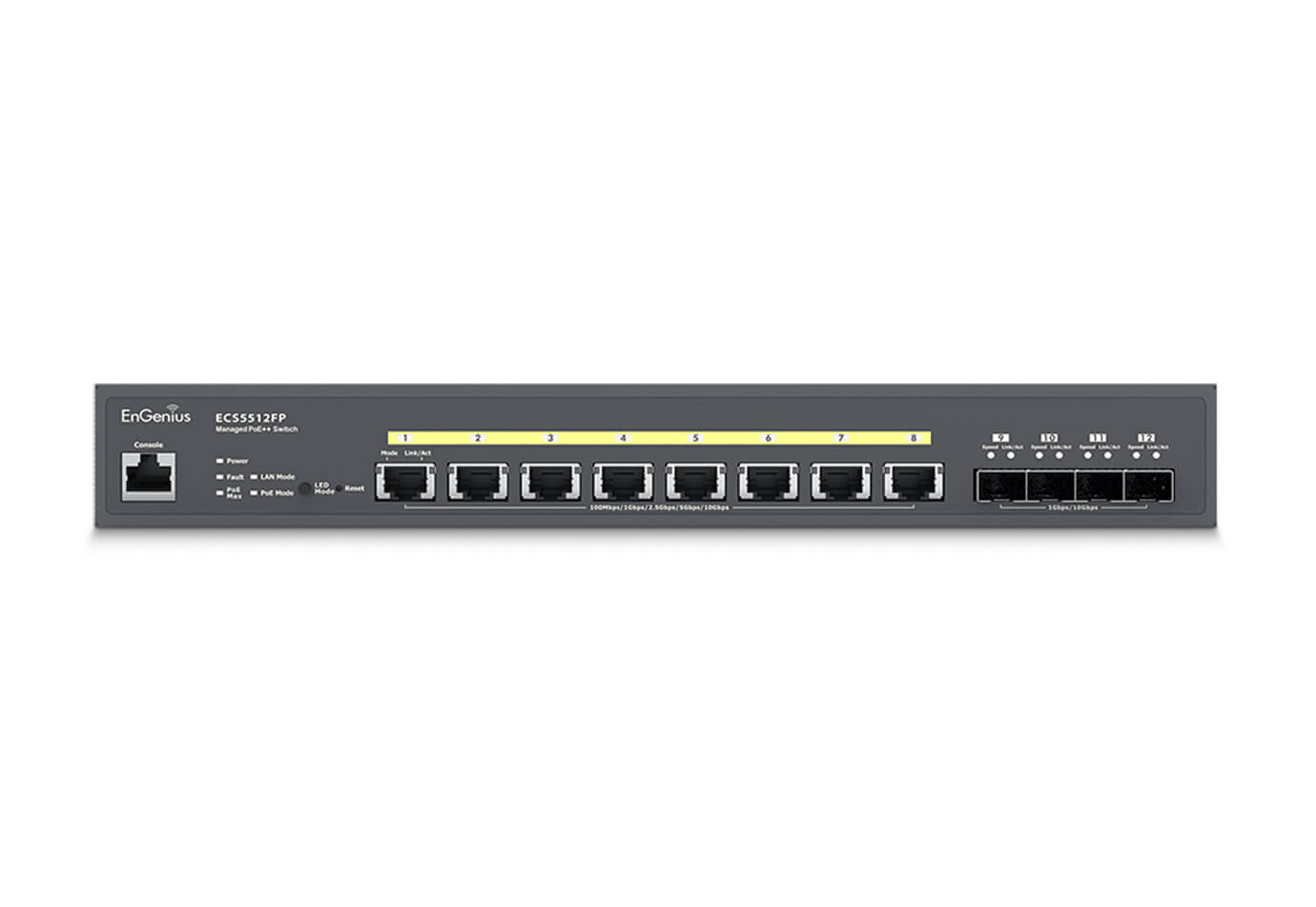

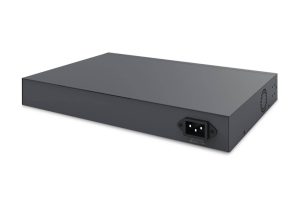

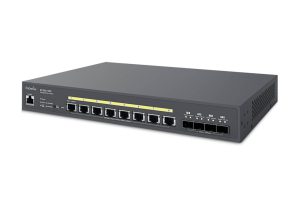

CloudSwitch Aggregate 8XG Full PoE

雲端管理型 8埠10G PoE++ 及 4埠 SFP+ 網路交換器

ECS5512FP

EnGenius Cloud Switch Features Cloud-managed Switch Solution

Product Highlight

EnGenius 雲端管理型Layer 2+ Aggregate 網路交換器 ECS5512FP ，是一款可靠且易於管理的 8 個 10G PoE++ 連接埠，具有 4 個 SFP+ 上行連接埠網路交換器，可為您的網路設備提供 420W 功率預算的高速連接。其零接觸配置和集中式雲端管理，使您可以隨時隨地輕鬆設置和管理網路。憑藉其Voice-VLAN 功能和強大的安全性，您可以確保高品質的語音和視訊流量，同時防止惡意攻擊。

8 個 10G連接埠，支援超高頻寬應用

4 個雙速 10G SFP+（光纖）上行連接埠連接到高速 NAS 和伺服器，以實現高性能網路

8 個 802.3af/at/bt PoE++ 連接埠，PoE總供電量為 420W

自動配置、集中式雲端管理，以及可視化監控

混合雲網路交換器支援靈活的管理選項，例如EnGenius Cloud 雲端管理或單機運作

具備支援基於連接埠/基於MAC的存取控制清單（ACL）風暴控制、DHCP竊聽防護、DOS攻擊預防、802.1X和RADIUS身份驗證等強大安全功能

透過Voice-VLAN 功能針對高品質語音和視訊流量進行優化

Downloads

檔案名稱	類型
規格手冊_Cloud Enabled Network Switches	Data Sheet
規格手冊_EnGenius Cloud Management	Data Sheet
簡介手冊_EnGenius Cloud Solution	Brochure
簡介手冊_Cloud Solution	White Paper (Marketing Collaterals)
ECSx5xx(FP) FW v1.1.40	Firmware
ECSx5xx(FP) FW v1.1.42	Firmware
快速入門指南_CloudSwitch Aggregate 8XG Full PoE_ECS5512FP_QSG_EN	Quick Guide
規格手冊_CloudSwitch Aggregate 8XG Full PoE_ECS5512FP Datasheet	Data Sheet
使用手冊_EnGenius Cloud User Manual	User Manual

Technical Specifications

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

8×100/1000/2500/5000/10000 Mbps Ports

Switching Capacity

240 Gbps

SDRAM

512 MB

Flash Memory

128 MB

Power Source

100 ~ 240VAC, 50/60Hz

Physical Interface

System Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud

Local Web GUI

MAC Address Table

32K

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
Voice VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS2512FP Device

Weight: 3.1 kg
Width: 230 mm
Length: 330 mm
Height: 44 mm

Package Contents

1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

	CloudSwitch Aggregate 8XG Full PoE	CloudSwitch MGPlus 8 Full PoE	CloudSwitch L2Plus 48 Full PoE	CloudSwitch L2Plus 48	CloudSwitch L2Plus 24 Full PoE	CloudSwitch L2Plus 24	CloudSwitch L2Plus 8 Full PoE	CloudSwitch L2Plus 8 PoE
Model Number	ECS5512FP	ECS2512FP	ECS1552FP	ECS1552	ECS1528FP	ECS1528T	ECS1112FP	ECS1008P
交換器等級	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+
千兆(Gigabit)連接埠	-	-	48	48	24	24	10	8
多兆(Multi-G)連接埠	8 x 10G	8 x 2.5G	-	-	-	-	-	-
SFP光纖連接埠	-	-	-	-	-	-	2 x 1G	-
SFP+光纖連接埠	4	4	4	4	4	4	-	-
RJ45網管介面連接埠	Yes	Yes	Yes	Yes	Yes	Yes	Yes	-
PoE供電連接埠	Ports 1-8	Ports 1-8	Ports 1-48	-	Ports 1 - 24	-	Ports 1-8	Ports 1-8
PoE供電標準	802.3af/at/bt	802.3af/at/bt	802.3af/at	-	802.3af/at	-	802.3af/at	802.3af/at
PoE總功率預算	420 W	240 W	740W	-	410W	-	130W	55W
安裝形式	13” 1U	13” 1U	19” 1U	19"1U	19” 1U	13"1U	13” 1U	9.45" (Desktop)
交換能力	240 Gbps	120 Gbps	176 Gbps	176 Gbps	128 Gbps	128 Gbps	24Gbps	16 Gbps
Packet Forwarding Rate	178.57 Mpps	89.29 Mpps	130.95Mpps	130.95Mpps	95.23Mpps	95.23Mpps	17.856Mpps	11.904Mpps
MAC地址大小	32K	16k	32K	32K	16k	16K	8k	8k
Packet Buffer Memory	2MB	512KB	2MB	2MB	1.5MB	1.5MB	512KB	512KB
Full load Power consumption	506.7 Watts	299 Watts	885 Watts	43.92 Watts	500.46 Watts	24.41 Watts	152.8 Watts	62.05 Watts
Continuous PoE Power	-	-	Yes	Yes	Yes	-	Yes	Yes
尺寸	330 x 230 x 44 mm	330 x 230 x 44 mm	440 x 310 x 44 mm	440 x 260 x 44 mm	440 x 260 x 44 mm	330 x 230 x 44 mm	330 x 230 x 44 mm	240 x 105 x 27 mm
雲端管理模式	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
本地管理模式	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
單機運作模式	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
