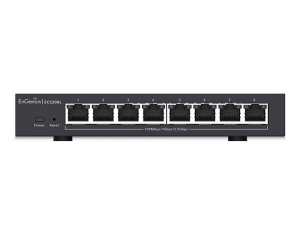

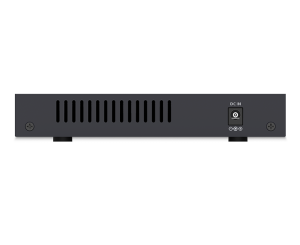

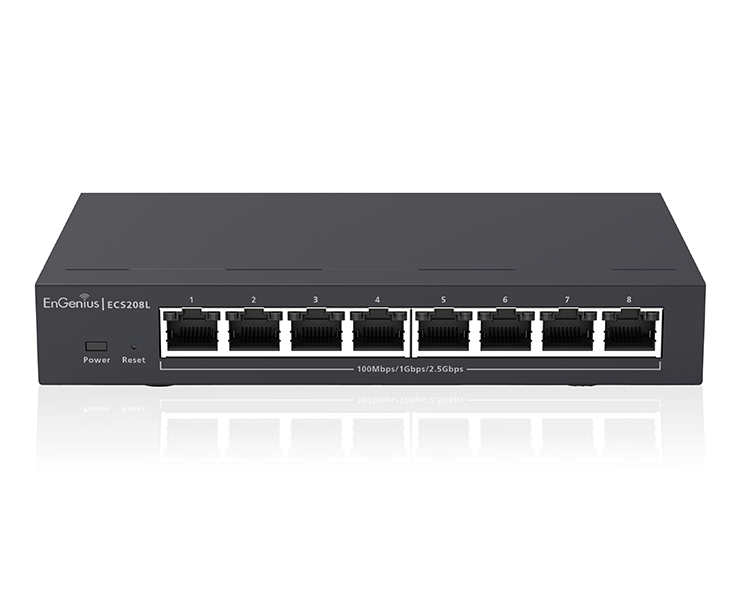

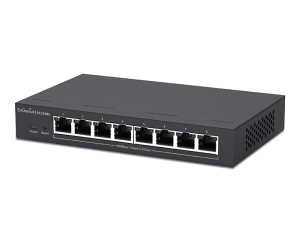

CloudSwitch MGLite 8
EnGenius ECS208L Cloud-Lite 多重速率2.5Gb 交換器為中小企業提供直覺且經濟實惠的網路解決方案。配備 8 個 2.5G 埠，提供高速數據傳輸，特別適用於高頻寬應用。支援零接觸部署和全面的雲端管理，ECS208L 可簡化網路運作，提高效率並縮短設定時間。
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control
8×100/1000/2500 Mbps Ports
40Gbps
128MB
32MB
100 to 240 VAC, 50/60Hz
Power LED
Link/Activity/Speed (per Ethernet port)
EnGenius Cloud
Local Web GUI
4K
12K
Max 8 groups
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Strict / WRR/ Strict + WRR
Port-based bandwidth control (Ingress/Egress)
HTTP IPv4
HTTPS IPv4
Time Setting/Daylight saving
802.1w Rapid Spanning Tree
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
Voice VLAN
Port-based VLAN
CoS Mapping
IPv4 Settings
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control
Operating: 32°F to 104°F (0°C to 40°C)
5% – 95%
Weight: 0.8 Ibs (0.4 kg)
Width: 4.13” (105 mm)
Length: 9,45” (240 mm)
Height: 1.06” (27 mm)
1x Cloud Managed Switch
1x Product Card
1x Power Adapter
1x Wall Mount Kit
1x Rubber Feet Cushion
CloudSwitch MGLite 8 |
CloudSwitch L2Plus 8 PoE |
CloudSwitch L2Plus 8 Full PoE |
CloudSwitch L2Plus 24 |
CloudSwitch L2Plus 24 PoE |
CloudSwitch L2Plus 24 Full PoE |
CloudSwitch L2Plus 48 |
CloudSwitch L2Plus 48 PoE |
CloudSwitch L2Plus 48 Full PoE |
|
|---|---|---|---|---|---|---|---|---|---|
| Model Number | ECS208L | ECS1008P | ECS1112FP | ECS1528T | ECS1528P | ECS1528FP | ECS1552 | ECS1552P | ECS1552FP |
| 交換器等級 | Websmart | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ |
| 千兆(Gigabit)連接埠 | - | 8 | 10 | 24 | 24 | 24 | 48 | 48 | 48 |
| 多兆(Multi-G)連接埠 | 8 | - | - | - | - | - | - | - | - |
| SFP光纖連接埠 | - | - | 2 x 1G | - | - | - | - | - | - |
| SFP+光纖連接埠 | - | - | - | 4 | 4 | 4 | 4 | 4 | 4 |
| RJ45網管介面連接埠 | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PoE供電連接埠 | - | Ports 1-8 | Ports 1-8 | - | Ports 1-24 | Ports 1 - 24 | - | Ports 1-48 | Ports 1-48 |
| PoE供電標準 | - | 802.3af/at | 802.3af/at | - | 802.3af/at | 802.3af/at | - | 802.3af/at | 802.3af/at |
| PoE總功率預算 | - | 55W | 130W | - | 240W | 410W | - | 410W | 740W |
| 安裝形式 | 6.7” (desktop) | 9.45" (Desktop) | 13” 1U | 13"1U | 19" 1U | 19” 1U | 19"1U | 19" 1U | 19” 1U |
| 交換能力 | 25Gbps | 16 Gbps | 24Gbps | 128 Gbps | 128 Gbps | 128 Gbps | 176 Gbps | 176 Gbps | 176 Gbps |
| Packet Forwarding Rate | 29.76 Mpps | 11.904Mpps | 17.856Mpps | 95.23Mpps | 95.23Mpps | 95.23Mpps | 130.95Mpps | 130.95Mpps | 130.95Mpps |
| MAC地址大小 | 4K | 8k | 8k | 16K | 16k | 16k | 32K | 32K | 32K |
| Packet Buffer Memory | 1MB | 512KB | 512KB | 1.5MB | 1.5MB | 1.5MB | 2MB | 2MB | 2MB |
| Full load Power consumption | 8.1 Watts | 62.05 Watts | 152.8 Watts | 24.41 Watts | 297.6 Watts | 500.46 Watts | 43.92 Watts | 476.3 Watts | 885 Watts |
| PD Lifeguard | - | - | - | - | - | - | - | - | - |
| Continuous PoE Power | - | Yes | Yes | - | Yes | Yes | Yes | Yes | Yes |
| 尺寸 | 170mm x 105mm x 27mm | 240 x 105 x 27 mm | 330 x 230 x 44 mm | 330 x 230 x 44 mm | 440 x 260 x 44 mm | 440 x 260 x 44 mm | 440 x 260 x 44 mm | 440 x 310 x 44 mm | 440 x 310 x 44 mm |
| 雲端管理模式 | EnGenius Cloud | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 本地管理模式 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 單機運作模式 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
|
