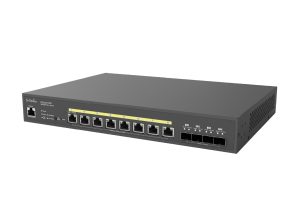

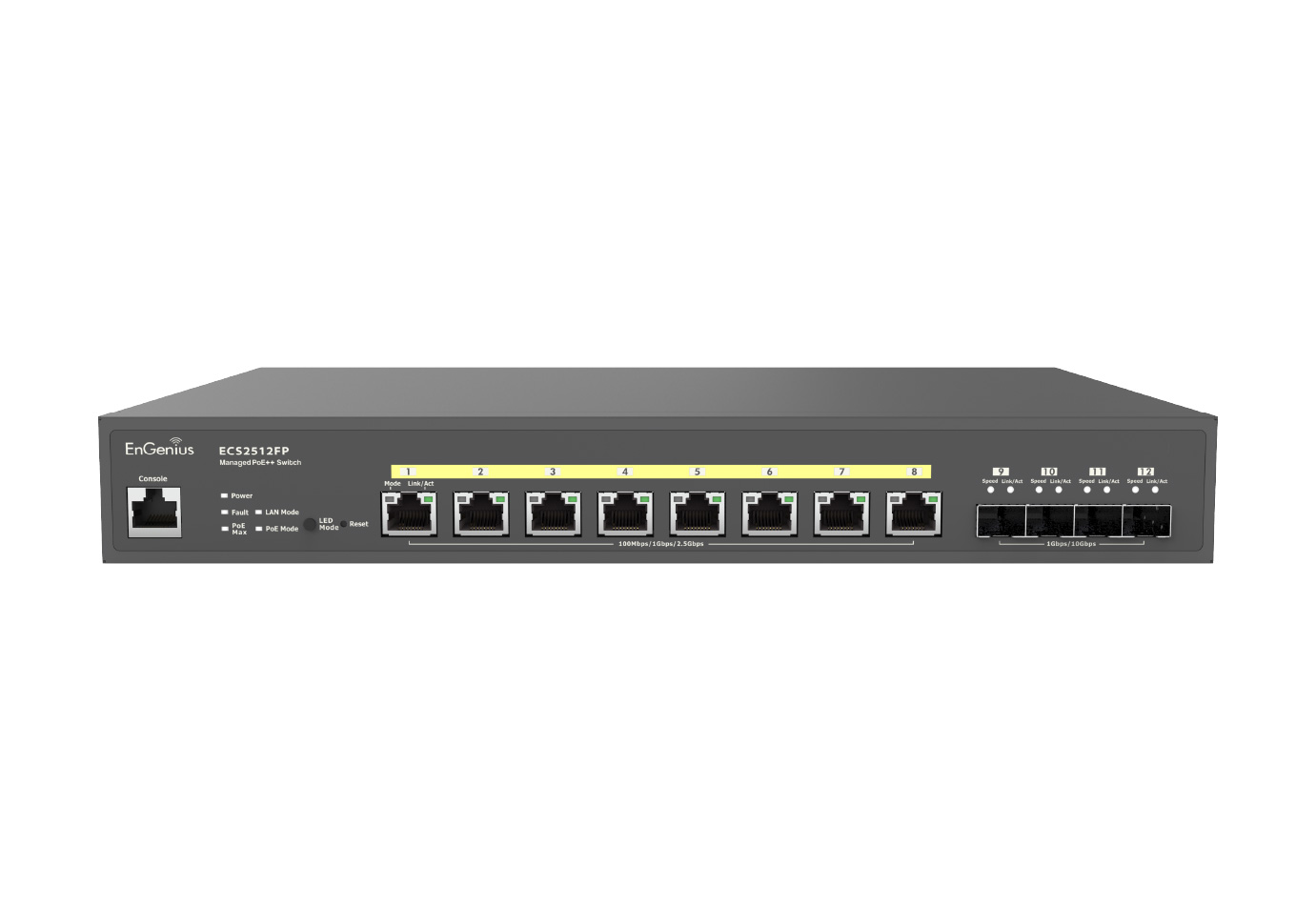

CloudSwitch MGPlus 8 Full PoEEnGenius 雲端管理型Layer 2+ Multi-Gigabit 2.5Gb 網路交換器 ECS2512FP ，為中小型企業提供易於使用且經濟高效的網路解決方案。憑藉其 8 個 2.5G PoE++ 連接埠以及 240W 總功率預算的 4 個 10G SFP+ 上行連接埠，它可確保頻寬密集型應用的高速數據傳輸。透過零接觸配置和集中式雲端管理，它簡化了網路管理並節省了時間。
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control
8×100/1000/2500 Mbps Ports
4x SFP+ Ports
120Gbps
512MB
128MB
Ports 1-8 (802.3af/at/bt)
240w
100 to 240 VAC, 50/60Hz
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
EnGenius Cloud
Local Web GUI
16k
10K
Max 256 groups
MLD Snooping: v1
Queue 8
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Strict / WRR/ Strict + WRR
Port-based bandwidth control (Ingress/Egress)
Max. 256 Entries
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SNMP v1/v2c/v3 Support
RMON 1,2,3,9
Time Setting/Daylight saving
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
20 IPv6 address
Max. 192 ARP entries
Max. 63 entries
Max. 21 entries
Operating: 32°F to 122°F (0°C to 50°C)
Operating: 5% – 95%
Weight: 5.7Ibs (2.6 kg)
Width: 9.05” (230 mm)
Length: 12.99” (330 mm)
Height: 1.73” (44 mm)”
1x Cloud Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
CloudSwitch MGPlus 8 Full PoE |
CloudSwitch Aggregate 8XG Full PoE |
CloudSwitch L2Plus 48 Full PoE |
CloudSwitch L2Plus 48 |
CloudSwitch L2Plus 24 Full PoE |
CloudSwitch L2Plus 24 |
CloudSwitch L2Plus 8 Full PoE |
|
|---|---|---|---|---|---|---|---|
| Model Number | ECS2512FP | ECS5512FP | ECS1552FP | ECS1552 | ECS1528FP | ECS1528T | ECS1112FP |
| 交換器等級 | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ | Layer 2+ |
| 千兆(Gigabit)連接埠 | - | - | 48 | 48 | 24 | 24 | 10 |
| 多兆(Multi-G)連接埠 | 8 x 2.5G | 8 x 10G | - | - | - | - | - |
| SFP光纖連接埠 | - | - | - | - | - | - | 2 x 1G |
| SFP+光纖連接埠 | 4 | 4 | 4 | 4 | 4 | 4 | - |
| RJ45網管介面連接埠 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PoE供電連接埠 | Ports 1-8 | Ports 1-8 | Ports 1-48 | - | Ports 1 - 24 | - | Ports 1-8 |
| PoE供電標準 | 802.3af/at/bt | 802.3af/at/bt (up to 90W) | 802.3af/at | - | 802.3af/at | - | 802.3af/at |
| PoE總功率預算 | 240 W | 410 W | 740W | - | 410W | - | 130W |
| 安裝形式 | 13” 1U | 13” 1U | 19” 1U | 19"1U | 19” 1U | 13"1U | 13” 1U |
| 交換能力 | 120 Gbps | 240 Gbps | 176 Gbps | 176 Gbps | 128 Gbps | 128 Gbps | 24Gbps |
| Packet Forwarding Rate | 89.29 Mpps | 178.57 Mpps | 130.95Mpps | 130.95Mpps | 95.23Mpps | 95.23Mpps | 17.856Mpps |
| MAC地址大小 | 16k | 32K | 32K | 32K | 16k | 16K | 8k |
| Packet Buffer Memory | 512KB | 2MB | 2MB | 2MB | 1.5MB | 1.5MB | 512KB |
| Full load Power consumption | 299 Watts | 506.7 Watts | 885 Watts | 43.92 Watts | 500.46 Watts | 24.41 Watts | 152.8 Watts |
| PD Lifeguard | - | - | - | - | - | - | - |
| Continuous PoE Power | - | - | Yes | Yes | Yes | - | Yes |
| 尺寸 | 330 x 230 x 44 mm | 330 x 230 x 44 mm | 440 x 310 x 44 mm | 440 x 260 x 44 mm | 440 x 260 x 44 mm | 330 x 230 x 44 mm | 330 x 230 x 44 mm |
| 雲端管理模式 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 本地管理模式 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 單機運作模式 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
|
