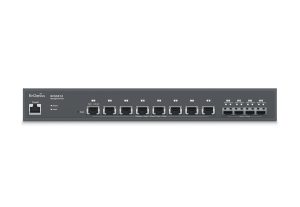

CloudSwitch Aggregate 8XG

雲端管理型 8 埠 10G 網路交換器，配備 4 埠 SFP+

ECS5512

Product Highlight

EnGenius 雲端管理型 Layer 2+ 匯聚交換器 ECS5512 是一款可靠且易於管理的交換器，配備 8 個 10G 埠與 4 個 10G SFP+ 上行埠，為您的網路設備提供高速連線。支援零接觸部署和集中式雲端管理，讓您隨時隨地輕鬆設定與管理網路。透過語音 VLAN 功能與強大的安全性，不僅能確保語音與視訊流量的高品質傳輸，還能有效防禦惡意攻擊。

  • 8 個 10G 埠，支援超高頻寬應用
  • 4 個 10G SFP+ (光纖) 上行埠，連接高速 NAS 和伺服器，打造高效能網路
  • 支援零接觸部署、集中式雲端管理及可視化監控
  • 混合雲交換器，提供 EnGenius Cloud 或獨立運作等靈活管理選項
  • 強大安全性，支援基於埠 / MAC 的 ACL 風暴控制、DHCP Snooping、DoS 攻擊防護、802.1X 及 RADIUS 認證等功能
  • 語音 VLAN功能，優化語音與視訊流量品質

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control

Network Port – Multi-Gigabit Ethernet Ports

8×100/1000/2500/5000/10000 Mbps Ports

Network Port – SFP+ Ports/

4x SFP+ Ports

Switching Capacity

240Gbps

SDRAM

512MB

Flash Memory

128MB

Power Source

100 to 240 VAC, 50/60Hz

Physical Interface

System Indicators

Power LED
Fault LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L3 Software Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

L2 Software Features

Network Management

EnGenius Cloud
SkyKey
ezMaster
Local Web GUI

MAC Address Table

32k

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

Operating: 5% – 95%

Device Dimensions & Weight

Device Dimensions & Weights

Weight: 5.7Ibs (2.6 kg)
Width: 9.05” (230 mm)
Length: 12.99” (330 mm)
Height: 1.73” (44 mm)

Package Contents

1x Cloud Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

CloudSwitch Aggregate 8XG

CloudSwitch L2Plus 8 PoE

CloudSwitch L2Plus 8 Full PoE

CloudSwitch MGPlus 8

CloudSwitch MGPlus 8 Full PoE

CloudSwitch Aggregate 8XG Full PoE

CloudSwitch L2Plus 24

CloudSwitch L2Plus 24 Full PoE

CloudSwitch L2Plus 48

CloudSwitch L2Plus 48 Full PoE

Model Number ECS5512 ECS1008P ECS1112FP ECS2512 ECS2512FP ECS5512FP ECS1528T ECS1528FP ECS1552 ECS1552FP
交換器等級 Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
千兆(Gigabit)連接埠 - 8 10 - - - 24 24 48 48
多兆(Multi-G)連接埠 8 x 10G - - 8 x 2.5G 8 x 2.5G 8 x 10G - - - -
SFP光纖連接埠 - - 2 x 1G - - - - - - -
SFP+光纖連接埠 4 - - 4 4 4 4 4 4 4
QSFP28 Ports - - - - - - - - - -
MGNT Port - - - - - - - - - -
RJ45網管介面連接埠 Yes - Yes Yes Yes Yes Yes Yes Yes Yes
PoE供電連接埠 - Ports 1-8 Ports 1-8 - Ports 1-8 Ports 1-8 - Ports 1 - 24 - Ports 1-48
PoE供電標準 - 802.3af/at 802.3af/at - 802.3af/at/bt 802.3af/at/bt (up to 90W) - 802.3af/at - 802.3af/at
PoE總功率預算 - 55W 130W - 240 W 410 W - 410W - 740W
安裝形式 13” 1U 9.45" (Desktop) 13” 1U 13” 1U 13” 1U 13” 1U 13"1U 19” 1U 19"1U 19” 1U
交換能力 240 Gbps 16 Gbps 24Gbps 120 Gbps 120 Gbps 240 Gbps 128 Gbps 128 Gbps 176 Gbps 176 Gbps
最大封包轉送率 178.57 Mpps 11.904Mpps 17.856Mpps 89.29 Mpps 89.29 Mpps 178.57 Mpps 95.23Mpps 95.23Mpps 130.95Mpps 130.95Mpps
MAC地址大小 32k 8k 8k 16K 16k 32K 16K 16k 32K 32K
封包緩衝記憶體 2MB 512KB 512KB 512KB 512KB 2MB 1.5MB 1.5MB 2MB 2MB
滿載功耗 29.22 Watts 62.05 Watts 152.8 Watts 23.52 Watts 299 Watts 410.35 Watts 24.41 Watts 500.46 Watts 43.92 Watts 885 Watts
PD Lifeguard - - - - - - - - - -
持續供電 - Yes Yes - - - - Yes Yes Yes
尺寸 330 x 230 x 44 mm 240 x 105 x 27 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 440 x 260 x 44 mm 440 x 260 x 44 mm 440 x 310 x 44 mm
雲端管理模式 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
本地管理模式 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
單機運作模式 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
