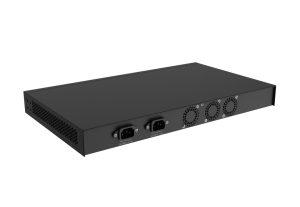

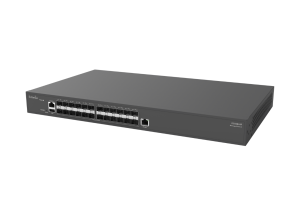

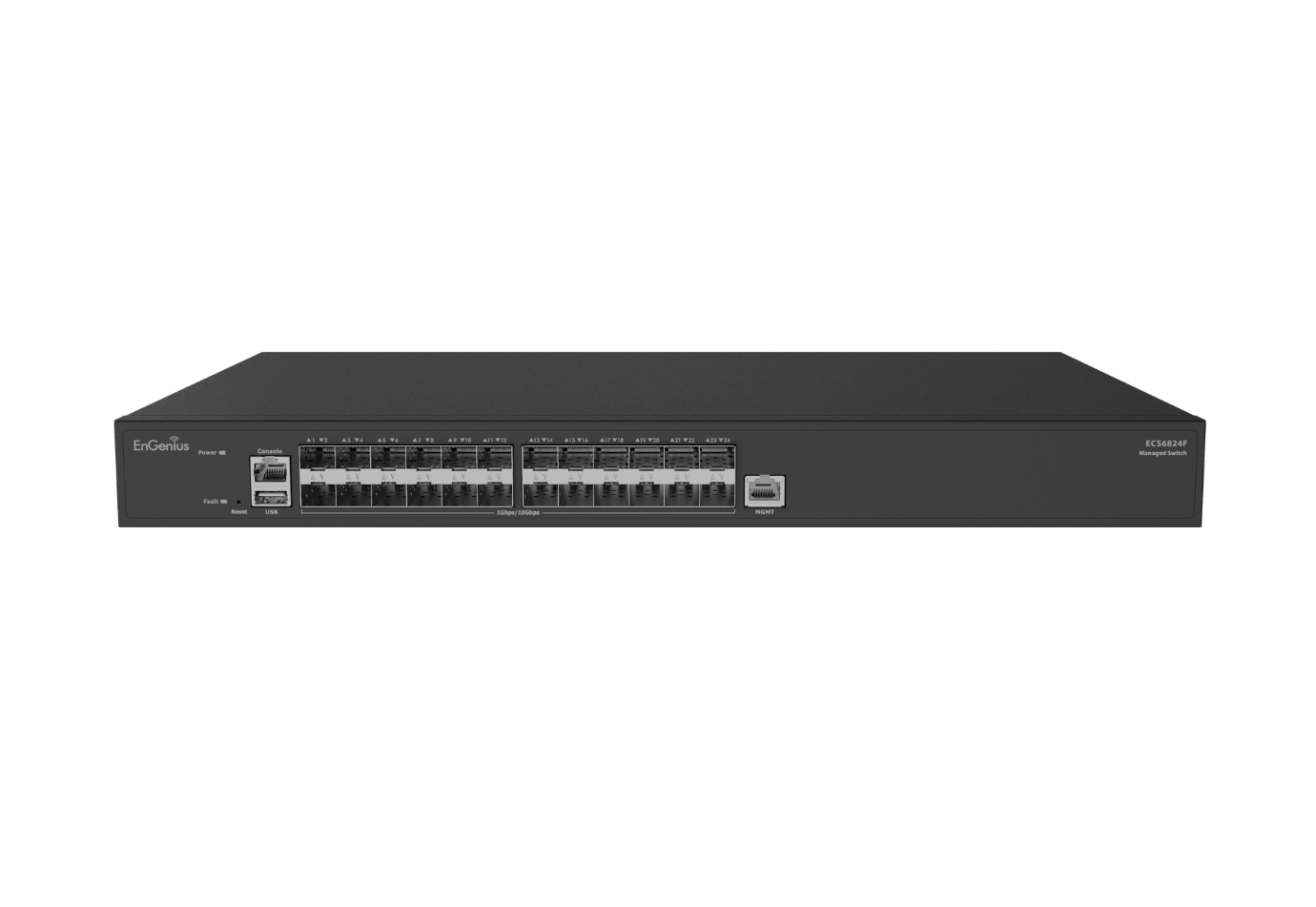

Cloud Managed 24x SFP+ L3 Switch

Technical Specifications

Port Standards

802.3z 1000Base-X
802.3ae 10GBase-R

Network Port – SFP+ Ports

24

Console

RJ-45 Console x1

MGMT Port

1

USB

USB 2.0 x1

Switching Capacity

480Gbps

Forwarding Rate (64Bytes)

Up to 810 Mpps

SDRAM

DDR4 2GB

Flash Memory

SPI NOR Flash: 8MB + NAND Flash: 256MB

Power Source

AC in

L2 Features

Jumbo Frame

Up to 10K bytes

MAC address Table

Max. 16K

STP

Support STP/RSTP/MSTP
Port Fast/ BPDU Guard/ Root Guard

Port Channel

Support Static / LACP
Max. 8 trunks/ Max. 8 ports per trunk

VLAN

Max. 4K 802.1Q VLAN
GVRP, Voice VLAN, Surveillance VLAN

LLDP/LLDP-MED

Yes/Yes

Port isolation

Yes

Port Limited

Based on Tx/Rx

Loopback detection

Yes

L3 Features

Routing Table

IPv4: up to Max. 1000 entries (512 entries is for static route)
IPv6: up to Max. 1500 entries (256 entries is for static route)

IP Interface

128 for IPv4, 128 for IPv6

ARP

4K for IPv4, 8K for IPv6
Support ARP aging

IPv4/IPv6 Ping/ Traceroute

Yes

VRRP

Yes

L2/L3 Multicast Features

MLD

Max. 255 entries, shared by MLD/IGMP
MLD v1/v2
MLD Snooping

IGMP

Max. 255 entries, shared by MLD/IGMP
IGMP v1/v2/v3
IGMP Snooping

Routing Features

IPv4/IPv6 Static Route

Yes

RIP/RIPng

Yes/No

OSPFv2/v3

Yes

ACL Features

ACL entry

Max.256 entries is shared by IPv4 ingress/egress, and IPv6 ingress
Max.512 entries is shared by MAC ingress/egress, and IPv6 egress

Access List

Support IPv4/IPv6 standard and extended ACL
Support MAC ACL

QoS Features

Hardware queue

8

Based on 802.1q/ DSCP/ IP precedence

Yes (Based on 802.1q/ DSCP)

Queue scheduling

Support SP/ WRR

Bandwidth control

Based on Tx/Rx per port
