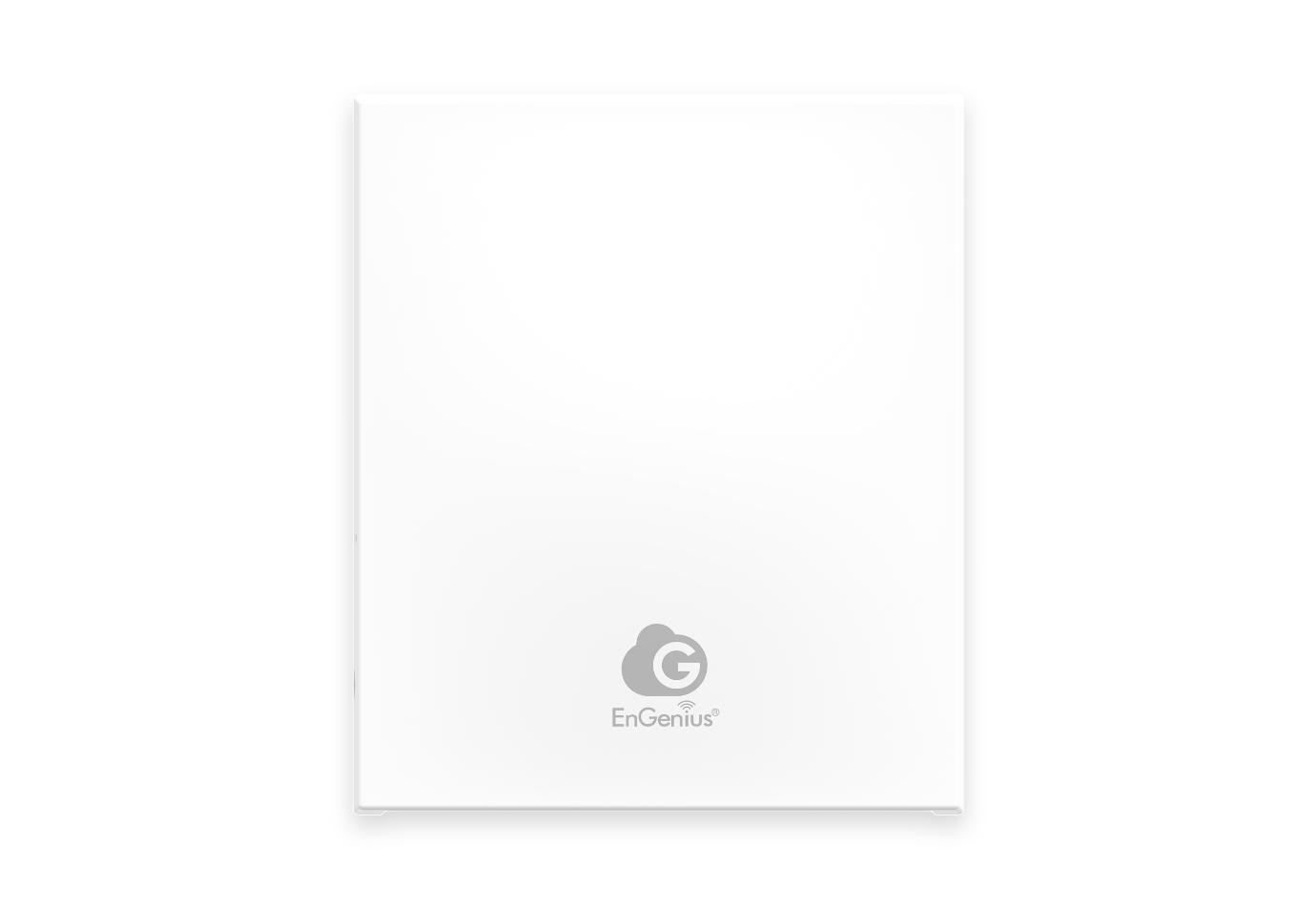

Cloud 7 2×2 Wallplate

雲端管理 Wi-Fi 7 2x2 壁掛式無線基地台

ECW515
Dual-Band
BE3600

Product Highlight

EnGenius 雲端管理型 Wi-Fi 7 2x2 無線存取點 ECW515，於 5 GHz 頻段最高可達 2,900 Mbps，於 2.4 GHz 頻段最高可達 700 Mbps。支援 WPA3／WPA2-AES 安全機制、Mesh 網狀網路架構與遠端管理功能，並內建 4 埠 Gigabit 交換器，提供安全且穩定的有線與無線連線能力。透過 EnGenius Cloud 平台可進行集中管理，適用於飯店、宿舍、教室及多租戶環境部署。

  • 雙頻並行 802.11be Wi-Fi 7 架構，並向下相容既有標準
  • 最高可達 2,900 Mbps（5 GHz）與最高可達 700 Mbps（2.4 GHz）的高速傳輸效能
  • 2.5 GbE 提供更高傳輸吞吐量，並支援 802.3at 及 PoE 注入器供電，可於最遠 100 公尺（328 英尺）距離內進行彈性部署
  • 支援 54V DC 電源輸入，提供彈性的供電選項
  • 透過 PoE Out 為 VoIP 電話或其他 PoE 設備供電
  • 支援 WPA3 與 WPA2-AES 驗證機制
  • 採雲端管理，支援 AP 與 Mesh 運作模式
  • 支援快速掃描裝置註冊與設定，並提供遠端監控與故障排除功能
  • 透過 EnGenius Cloud App，可隨時隨地集中管理不限數量的 AP
  • 支援 Mesh 無線網路架構，簡化部署流程、最佳化訊號效能，並具備自我修復機制

Technical Specifications

Standards

IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab

Antenna

2 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
2 x 5 GHz: 5 dBi(Integrated Omni-Directional)

Physical Interfaces

1 x 2.5GE Port (PoE+)
4 x 1GE Port
1 x DC Jack
1 x Reset Button

LED Indicators​

1 x Multi-color LED

Power Source

Power-over-Ethernet: 802.3at Input
54VDC / 1A Power Adapter

Maximum Power Consumption

DC in 26W, PoE in 18W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 21 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

2 × 2:2

SU-MIMO Capability

Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 2,900 Mbps wireless data rate with EHT160 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO Capability

Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream MU-MIMO for up to 2,900 Mbps wireless data rate with EHT160 to a 2×2 wireless device under the 5GHz radio simultaneously.

Supported Data Rates

802.11be:
2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 2)
5 GHz: Max 2,900 (MCS0 to MCS13, NSS = 1 to 2)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1,200 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User

512

Client Balancing

Yes

Auto Channel Selection

Yes

Management Features

Multiple BSSID

8 SSIDs on both 2.4GHz and 5GHz bands

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliance With IEEE 802.11e Standard
WMM

SNMP

Compliance With IEEE 802.11e Standard
WMM

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Interface

IPv4, IPv6

Local Web Access

Supports HTTP or HTTPS

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

Weight

328g

Dimensions

Width: 110 mm
Length: 130 mm
Height: 42mm

Package Contents

1 – ECW515 Cloud Managed Indoor Access Point
1 – Mount Bracket
1 – Bracket Screws
1 – Product Card

Regulatory Compliance

FCC
CE
IC
UKCA
VCCI
AU

Model Comparison

Cloud 7 2x2 Wallplate

Cloud7 2x2

Cloud7 2x2x2

Cloud7 2x2x2

Cloud7 2x3x3 Lite

Cloud7 4x4x4

Model Number ECW515 ECW510 ECW520 ECW526 ECW516L ECW536
無線網路標準 11be 11be 11be 11be(Wi-Fi 7) Wi-Fi 7 (11be) 11be(Wi-Fi 7)
無線頻段 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6GHz 2.4 GHz & 5 GHz & 6 GHz
2.4 GHz最大傳輸速率 700 Mbps 700 Mbps 700 Mbps 700 Mbps 700 Mbps 1,400 Mbps
5 GHz最大傳輸速率 2,900 Mbps 4,300 Mbps 4,300 Mbps 2,900 Mbps 4,300 Mbps 5,800 Mbps
6 GHz最大傳輸速率 - - 5,800 Mbps 5,800 Mbps 8,700 Mbps 11,600 Mbps
空間串流 2x2:2 2x2:2 2x2:2 2x2:2 2 x 2:2(2.4GHz), 3x 3:3(5GHz & 6GHz) 4 × 4:4
2.4 GHz傳輸能力 21 dBm 23 dBm 23 dBm 23 dBm 22 dBm 25 dBm
5 GHz傳輸能力 22 dBm 21 dBm 23 dBm 22 dBm 22 dBm 24 dBm
6 GHz傳輸能力 - - 20 dBm 22 dBm 22 dBm 24 dBm
天線 2.4 GHz:2 x 3 dBi Omni;5 GHz:2 x 4 dBi Omni; 2.4 GHz:2.02 x 3 dBi Omni;5 GHz:2 x 5 dBi Omni; 2.4 GHz:2 x 6 dBi Omni;5 GHz:2 x 6 dBi Omni;6 GHz:2 x 6 dBi Omni; 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); 2 x 5 dBi (2.4 GHz) ; 3 x 5 dBi (5 GHz) ; 3 x 5 dBi 6 GHz) 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz);
網路線供電標準 802.3at 802.3at 802.3at 802.3at 802.3at 802.3bt
Scanning Radio - - - - - -
BLE - - - - - -
Power Consumption (Peak) DC in 26W, PoE in 18W 15.5 W 25.4 W 21W 20.7W 38W
有線網路連接埠 1x 2.5GE PoE+port ;4 x GE port; 1x 2.5GE PoE+port 1x 2.5GE PoE+port 1x 10GE PoE+port 1x 2.5GE PoE+ port 1x 10GE PoE++port ; 1x 10GE port
安裝方式 Wall Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceiling
尺寸 110 x 130 x 39.1 mm 160 x 160 x 32 mm 158 x 158 x 35.8 mm 190 x 190 x 39 mm 205 x 205 x 33 mm 230 x 230 x 37mm
網狀無線網路技術 Yes Yes - Yes Yes Yes
Cloud To-Go app Yes Yes Yes Yes Yes Yes
EnWiFi app - - - - - -
購買
購買
購買
購買
購買
購買
View
View
View
View
View
View
產品
網路配件

Related Products

Downloads

類型
檔名
Version
Release Date
下載
Checksum
Data Sheet 規格手冊_Cloud Managed Access Points Datasheet v5.8 15 10 月, 2025
Brochure 簡介手冊_Brochure EnGenius Cloud Solution v4.3 19 1 月, 2026
User Manual 使用手冊_EnGenius Cloud User Manual v1.0 14 1 月, 2026
Data Sheet 規格手冊_Cloud 7 2×2 Wallplate_ECW515 Datasheet v1.2 12 2 月, 2026
Firmware Cloud7_2x2_ECW515_firmware_v1.9.104-2.bin v1.9.104-2 10 3 月, 2026
×

Checksum

MD5

ce4f4bd9e886f1a7b013c8e6354131c5

SHA2

c15c9273e4fd6402187868c8019acef76a938dcc634ce73347dda75e9fcd5697

Close
Firmware Cloud7_2x2_ECW515_firmware_v1.9.104-4.bin v1.9.104-4 08 4 月, 2026
×

Checksum

MD5

17784e32002b04ebe57c3ba2e90513c8

SHA2

bbe89e72c387f3575a093e8616b0b07b5482d53177d85bc8f0c7866a9e7dab50

Close
Firmware Cloud7_2x2_ECW515_firmware_v1.9.105-6.bin v1.9.105-6 04 5 月, 2026
×

Checksum

MD5

ae1e962c7689b7c2f47c69e15891a799

SHA2

49c778a9776f267babdce77ac136ddf231b8731aaa27c406a946b8bb12e3ca81

Close
MIB ENGENIUS_ECW_FIT_MIB v1.0 04 5 月, 2026
