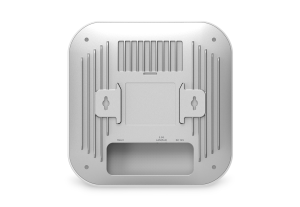

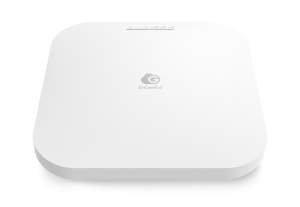

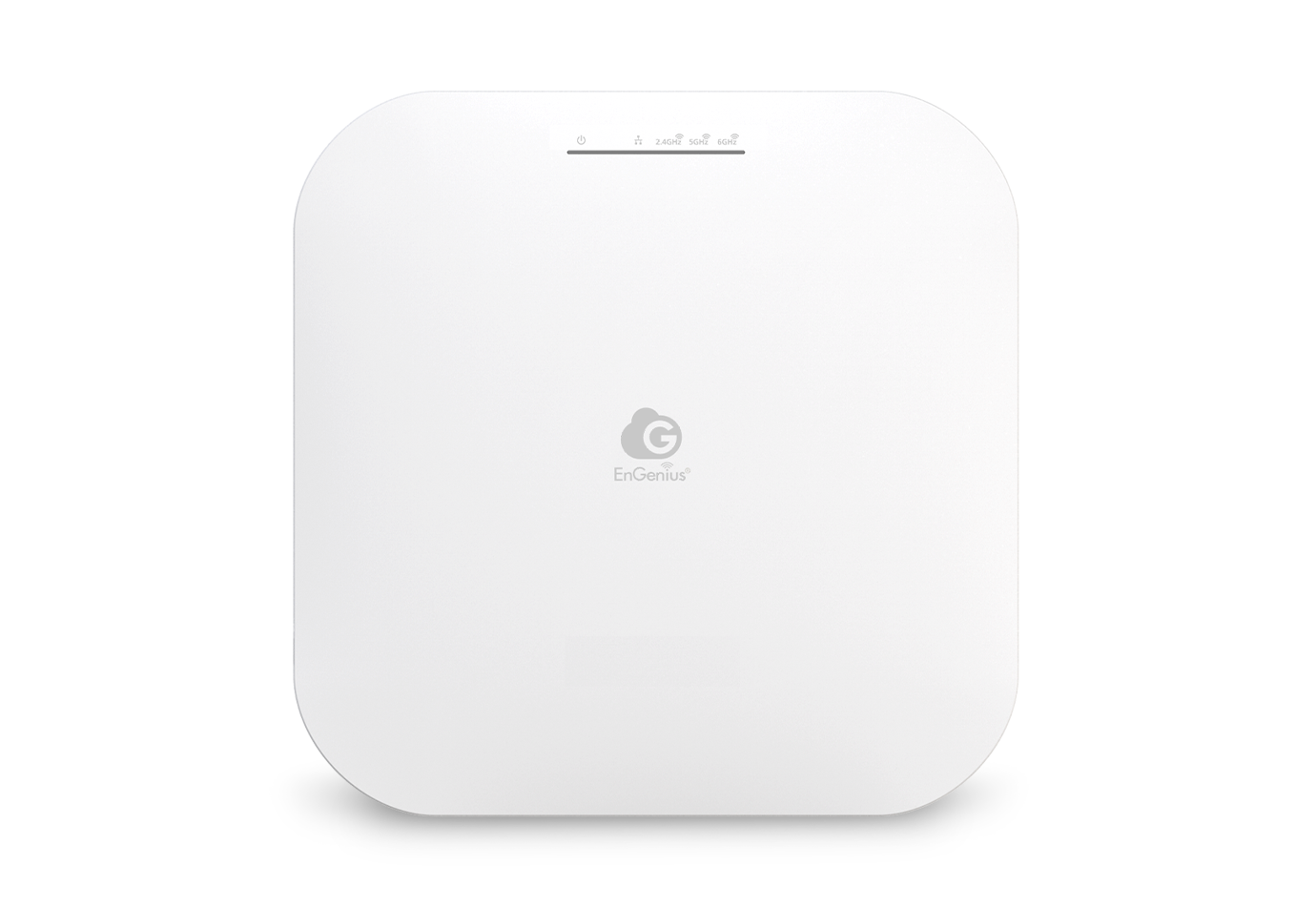

Cloud Lite 802.11be 2x3x3 三頻室內無線基地台

Operating Frequency

Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5925-7125MHz

Transmit Power

Up to 22 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
Up to 22 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

2 x 2:2
3 x 3:3

SU-MIMO Capability

Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Three(3) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with HE160 to a 3×3 wireless device under the 5GHz radio.
Three(3) spatial stream Single User (SU) MIMO for up to 8,700 Mbps wireless data rate with EHT320 to a 3×3 wireless device under the 6GHz radio.

MU-MIMO Capability

Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Three(3) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with HE160 to a 3×3 wireless device under the 5GHz radio simultaneously.
Three(3) spatial stream MU-MIMO for up to 8,700 Mbps wireless data rate with EHT320 to a 3×3 wireless device under the 6GHz radio simultaneously.

Supported Data Rates

802.11be:
2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: Max 4,300 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: Max 8,700 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 1,800 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 3,600 (MCS0 to MCS11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256- QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

DFS Certification

N/A

AirGuard (WIPS/WIDS)

N/A

Zero-wait DFS

N/A

Dedicated Scanning Radio

N/A

Max Concurrent User

128 Per radio

Client Balancing

Yes

Auto Channel Selection

Yes
