Cloud6 4×4 Lite

Cloud Lite 802.11ax 4×4 雙頻室內無線基地台

ECW212L
EnGenius Wi-Fi 6 Solution ECW Lite Access Point License

Product Highlight

EnGenius 雲端管理型 Wi-Fi 6 4x4 無線基地台 ECW212L，是為中小型企業設計的經濟實惠機型。支援雙頻 802.11ax 架構，提供高達 1,148 Mbps（2.4GHz）和 2,400 Mbps（5GHz）傳輸速度，帶來高效能連接體驗。無縫整合至 EnGenius 雲端平台，提供簡單管理和 WPA3 安全防護，適合尋求經濟型企業級效能的使用者。

  • Wi-Fi 6 技術：支援雙頻 802.11ax 架構，與舊款 Wi-Fi 設備向下相容。
  • 高效能速度：提供 2,400 Mbps（5GHz）和 1,148 Mbps（2.4GHz）傳輸量。
  • 進階安全性：整合 WPA3 和 WPA2-AES 認證保護。
  • 專業級天線：內建 5 dBi 4x4 天線系統。
  • 多功能連接：2.5GE PoE+ 連接埠支援高效能電力和高速網路。
  • 雲端管理：透過 EnGenius 雲端提供免費本地和遠端管理。
  • 靈活部署：支援多種操作模式，包括 AP、STA 和 Mesh 模式。

Technical Specifications

Standards

IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
IEEE 802.3 u/ab

Antenna

4 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
4 x 5 GHz: 5 dBi(Integrated Omni-Directional)

Scanning Radio

N/A

BLE

N/A

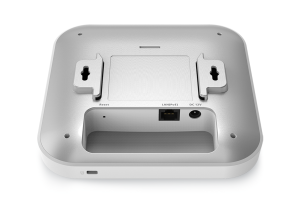

Physical Interfaces

1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button

LED Indicators​

1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source

Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter

Maximum Power Consumption

17W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

4 × 4:4

SU-MIMO Capability

Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.

MU-MIMO Capability

Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates

802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

DFS Certification

FCC/CE/IC

AirGuard (WIPS/WIDS)

N/A

Zero-wait DFS

N/A

Dedicated Scanning Radio

N/A

Max Concurrent User

128 Per radio

Client Balancing

Yes

Auto Channel Selection

Yes

Management Features

Multiple BSSID

8 SSIDs on both 2.4GHz and 5GHz bands

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliance With IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA3-PSK
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Interface

IPv4

Local Web Access

Supports HTTP or HTTPS

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

Weight

570 g

Dimensions

Width: 205mm
Length: 205mm
Height: 33mm

Package Contents

1 – ECW212L Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card

Regulatory Compliance

FCC
CE
IC
UKCA
UK PSTI
AU

Model Comparison

Cloud6 4x4 Lite

Cloud7 2x3x3 Lite

Cloud6 2x2

Cloud6 2x2 Lite

Cloud6 4x4

Model Number ECW212L ECW516L ECW220 ECW210L ECW230
無線網路標準 Wi-Fi 6 (11ax) Wi-Fi 7 (11be) Wi-Fi 6 (11ax) Wi-Fi 6 (11ax) Wi-Fi 6 (11ax)
無線頻段 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz & 6GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz
2.4 GHz最大傳輸速率 1200 Mbps 700 Mbps 600 Mbps 600 Mbps 1,200 Mbps
5 GHz最大傳輸速率 2400 Mbps 4,300 Mbps 1,200 Mbps 2400 Mbps 2,400 Mbps
6 GHz最大傳輸速率 - 8,700 Mbps - - -
空間串流 4 × 4:4 2 x 2:2(2.4GHz), 3x 3:3(5GHz & 6GHz) 2 x 2:2 2 × 2:2 4 x 4:4
2.4 GHz傳輸能力 23 dBm 22 dBm 22 dBm 21 dBm 23 dBm
5 GHz傳輸能力 23 dBm 22 dBm 22 dBm 21 dBm 23 dBm
6 GHz傳輸能力 - 22 dBm - - -
天線 4 x 5 dBi (2.4 GHz) ; 4 x 5 dBi (5 GHz) 2 x 5 dBi (2.4 GHz) ; 3 x 5 dBi (5 GHz) ; 3 x 5 dBi 6 GHz) 2 x 4 dBi (2.4 GHz) ; 2 x 5 dBi (5 GHz) 2 x 4 dBi (2.4 GHz) ; 2 x 5 dBi (5 GHz) 4 x 3 dBi (2.4 GHz); 4 x 3 dBi (5 GHz)
網路線供電標準 802.3at 802.3at 802.3af/at 802.3af 802.3af/at
Scanning Radio - - - - -
BLE - - - - -
Power Consumption (Peak) - 20.7W - - -
有線網路連接埠 1x 2.5GE PoE+ port 1x 2.5GE PoE+ port 1x GE PoE port 1x GE PoE port 1x 2.5GE PoE+ port
安裝方式 Wall/ Ceilling Wall/ Ceilling Wall / Ceiling Wall/ Ceilling Wall / Ceiling
尺寸 205 x 205 x 33 mm 205 x 205 x 33 mm 160 x 160 x 33 mm 160 x 160 x 30 mm 205 x 205 x 33.2 mm
網狀無線網路技術 Yes Yes Yes Yes Yes
Cloud To-Go app Yes Yes Yes Yes Yes
EnWiFi app - - - - -
