New Enterprise

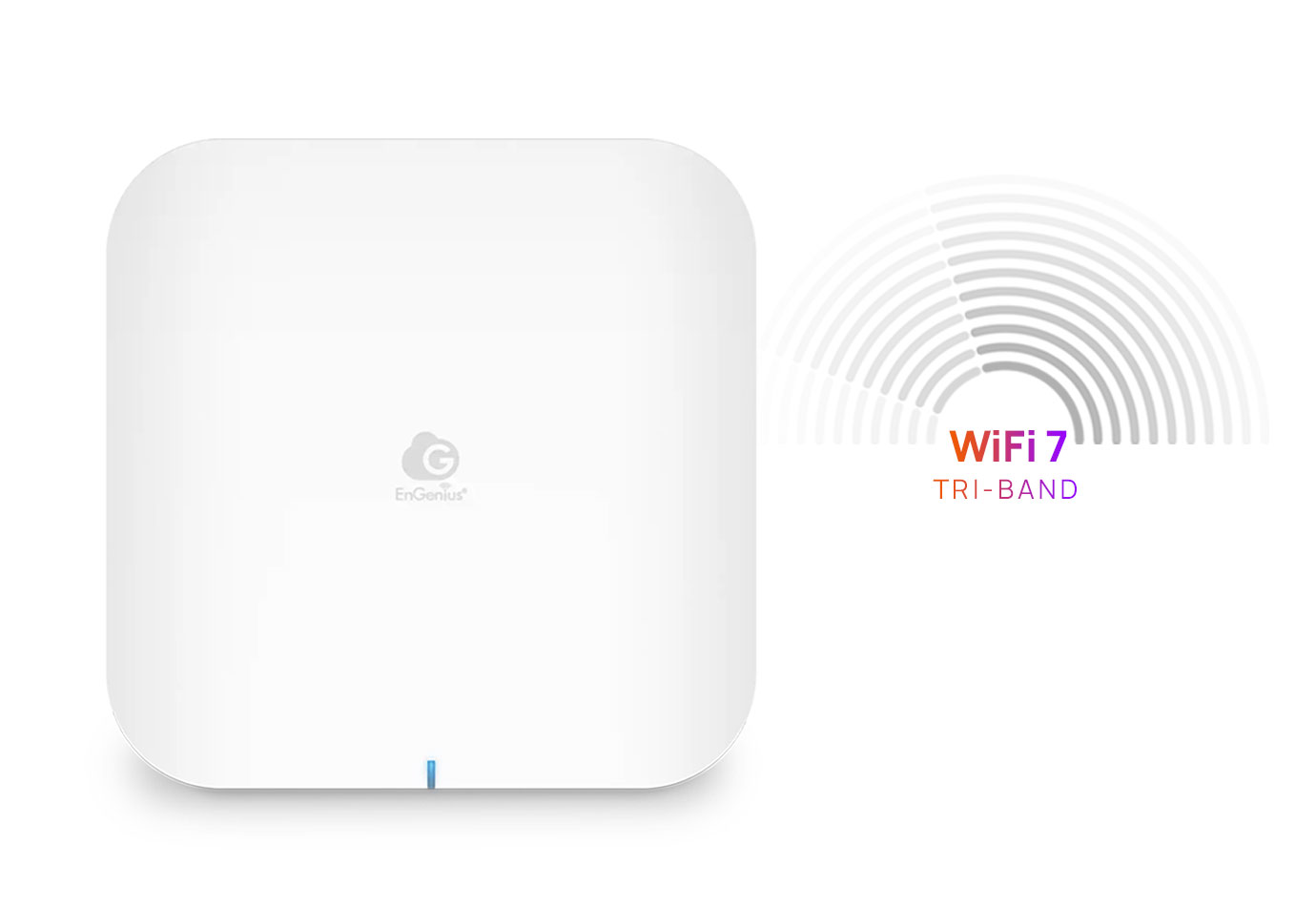

Cloud7 4x4x4 S

雲端管理 Wi-Fi 7 4×4×4 室內無線基地台

ECW536S
Tri-Band
BE19000

Product Highlight

EnGenius 雲端管理型 Wi-Fi 7 4x4x4 無線存取點 ECW536S，採三頻並行 802.11be Wi-Fi 7 架構，於 6 GHz 頻段最高可達 11,600 Mbps、5 GHz 頻段最高可達 5,800 Mbps，2.4 GHz 頻段最高可達 1,400 Mbps。支援 WPA3 與 WPA2-AES 驗證機制，並提供遠端監控與故障排除功能。結合 Mesh 無線網路支援以最佳化訊號品質，透過 EnGenius Cloud App 可輕鬆部署與集中管理不限數量的 AP。

  • 採用三頻並行 802.11be Wi-Fi 7 架構，並向下相容既有 Wi-Fi 標準
  • 於 6 GHz 頻段最高可達 11,600 Mbps、5 GHz 頻段最高可達 5,800 Mbps，2.4 GHz 頻段最高可達 1,400 Mbps 的高速傳輸效能
  • 10 GbE 提供更高傳輸吞吐量，並支援 802.3bt 及 60W PoE 注入器供電，可於最遠 100 公尺（328 英尺）距離內進行彈性部署
  • 支援 WPA3 與 WPA2-AES 驗證機制
  • 透過 WIPS 專用射頻模組提供無線安全偵測與防護機制
  • 透過 Beacon 掃描提供 BLE 用戶端清單
  • 採雲端集中管理，支援 AP 與 Mesh 運作模式
  • 支援快速掃描裝置註冊與設定，並提供遠端監控與故障排除功能
  • 透過 EnGenius Cloud App，可隨時隨地集中管理不限數量的 AP
  • 支援 Mesh 無線網路架構，簡化部署流程、最佳化訊號效能，並具備自我修復機制

Technical Specifications

Standards

IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab

Antenna

4 x 2.4 GHz: 5 dBi (Integrated Omni-Directional)
4 x 5 GHz: 6 dBi (Integrated Omni-Directional)
4 x 6 GHz: 5 dBi (Integrated Omni-Directional)

Scanning Radio

Yes

BLE

Yes

Physical Interfaces

1 x 10GE Port (PoE++)
1 x 10GE Port
1 x DC Jack
1 x Reset Button

LED Indicators

1 x Multi-color LED

Power Source

Power-over-Ethernet: 802.3bt Input
12VDC / 3A Power Adapter

Maximum Power Consumption

37W

Wireless & Radio Specifications

Operating Frequency

Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5925 ~ 7125 MHz

Transmit Power

Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

4 × 4:4

SU-MIMO Capability

Four (4) spatial stream SU-MIMO up to 1,400 Mbps @ VHT40 (2.4 GHz)
Four (4) spatial stream SU-MIMO up to 5,800 Mbps @ HE160 (5 GHz)
Four (4) spatial stream SU-MIMO up to 11,600 Mbps @ EHT320 (6 GHz)

MU-MIMO Capability

Four (4) spatial stream MU-MIMO up to 1,400 Mbps @ VHT40 (2.4 GHz)
Four (4) spatial stream MU-MIMO up to 5,800 Mbps @ HE160 (5 GHz)
Four (4) spatial stream MU-MIMO up to 11,600 Mbps @ EHT320 (6 GHz)

Supported Data Rates

802.11be:
2.4 GHz: Max 1,400 (MCS0–MCS13, NSS=1–4)
5 GHz: Max 5,800 (MCS0–MCS13, NSS=1–4)
6 GHz: Max 11,600 (MCS0–MCS13, NSS=1–4)

802.11ax:
2.4 GHz: 9–1,148 (MCS0–MCS11, NSS=1–4)
5 GHz: 18–4,800 (MCS0–MCS11, NSS=1–4)
6 GHz: 18–4,800 (MCS0–MCS11, NSS=1–4)

802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5–600 (MCS0–MCS31)
802.11ac: 6.5–1,733 (MCS0–MCS9, NSS=1–4)

Supported Radio Technologies

802.11be/ax: OFDMA
802.11a/g/n/ac: OFDM
802.11b: DSSS

Channelization

802.11be: EHT 20/40/80/160/320 MHz
802.11ax: HE 20/40/80/160 MHz
802.11ac: VHT 20/40/80 MHz
802.11n: HT 20/40 MHz
802.11n (2.4 GHz): HT40 MHz (256-QAM)
802.11n/ac/ax: Packet aggregation (A-MPDU, A-SPDU)

Supported Modulation

802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

DFS Certification

FCC / CE / IC

AirGuard (WIPS/WIDS)

Yes

Zero-wait DFS

Yes

Dedicated Scanning Radio

Yes

Max Concurrent User

512

Client Balancing

Yes

Auto Channel Selection

Yes

Management Features

Multiple BSSID

8 SSIDs on both 2.4GHz, 5GHz and 6GHz bands

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliance With IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Interface

IPv4, IPv6

Local Web Access

Supports HTTP or HTTPS

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~50 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

Weight

1270g

Dimensions

Width: 230 mm
Length: 230 mm
Height: 39.5mm

Package Contents

1 – ECW536S Cloud Managed Indoor Access Point
1 – Ceiling Mount Base
1 – Ceiling and Wall Mount Screw Kit
1 – T-rail Mount kit
1 – Product Card

Regulatory Compliance

FCC
CE
IC
UKCA

Model Comparison

Cloud7 4x4x4 S

Cloud7 2x2

Cloud7 2x2x2

Cloud7 2x2x2

Cloud7 2x3x3 Lite

Cloud7 4x4x4

Model Number ECW536S ECW510 ECW520 ECW526 ECW516L ECW536
無線網路標準 11be 11be 11be 11be(Wi-Fi 7) Wi-Fi 7 (11be) 11be(Wi-Fi 7)
無線頻段 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6GHz 2.4 GHz & 5 GHz & 6 GHz
2.4 GHz最大傳輸速率 1,400 Mbps 700 Mbps 700 Mbps 700 Mbps 700 Mbps 1,400 Mbps
5 GHz最大傳輸速率 5,800 Mbps 4,300 Mbps 4,300 Mbps 2,900 Mbps 4,300 Mbps 5,800 Mbps
6 GHz最大傳輸速率 11,600 Mbps - 5,800 Mbps 5,800 Mbps 8,700 Mbps 11,600 Mbps
空間串流 4 x 4:4 2x2:2 2x2:2 2x2:2 2 x 2:2(2.4GHz), 3x 3:3(5GHz & 6GHz) 4 × 4:4
2.4 GHz傳輸能力 25 dBm 23 dBm 23 dBm 23 dBm 22 dBm 25 dBm
5 GHz傳輸能力 24 dBm 21 dBm 23 dBm 22 dBm 22 dBm 24 dBm
6 GHz傳輸能力 24 dBm - 20 dBm 22 dBm 22 dBm 24 dBm
天線 2.4 GHz:4 x 5 dBi Omni;5 GHz:4 x 6 dBi Omni;6 GHz:4 x 5 dBi Omni; 2.4 GHz:2.02 x 3 dBi Omni;5 GHz:2 x 5 dBi Omni; 2.4 GHz:2 x 6 dBi Omni;5 GHz:2 x 6 dBi Omni;6 GHz:2 x 6 dBi Omni; 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); 2 x 5 dBi (2.4 GHz) ; 3 x 5 dBi (5 GHz) ; 3 x 5 dBi 6 GHz) 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz);
網路線供電標準 802.3bt 802.3at 802.3at 802.3at 802.3at 802.3bt
Scanning Radio Yes - - - - -
BLE Yes - - - - -
Power Consumption (Peak) 37 W 15.5 W 25.4 W 21W 20.7W 38W
有線網路連接埠 1x 10GE PoE++port;1x 10GE port 1x 2.5GE PoE+port 1x 2.5GE PoE+port 1x 10GE PoE+port 1x 2.5GE PoE+ port 1x 10GE PoE++port ; 1x 10GE port
安裝方式 Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceiling
尺寸 230 x 230 x 39.5mm 160 x 160 x 32 mm 158 x 158 x 35.8 mm 190 x 190 x 39 mm 205 x 205 x 33 mm 230 x 230 x 37mm
網狀無線網路技術 Yes Yes - Yes Yes Yes
Cloud To-Go app Yes Yes Yes Yes Yes Yes
EnWiFi app - - - - - -
