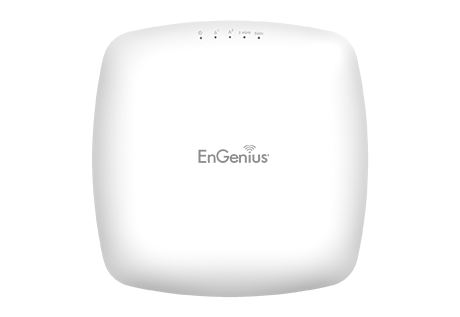

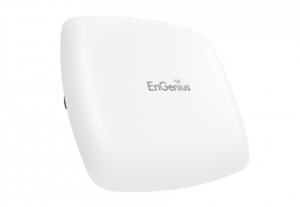

EnGenius EWS375AP 室內無線基地台採用先進的Wi-Fi和波束成形天線技術，可最大限度地提高性能，同時包含EnGenius企業級管理的靈活性和可擴展性。
| 檔案名稱 | 類型 |
|---|---|
 EWS375AP Datasheet
|
Data Sheet |
|
EWS375AP QIG
|
Quick Guide |
|
EWS375AP User Manual
|
Data Sheet |
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.11r
IEEE 802.11k
IEEE 802.11i
IEEE 802.11x
Internal Omni-Directional Antennas
3 dBi on 2.4 GHz & 5 GHz

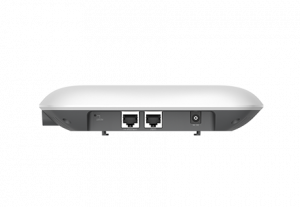

2 x 10/100/1000 Gigabit Ethernet Ports
(Link Aggregation achieves 2Gbps Throughput)
– LAN1: Supports 802.3at PoE Input
– LAN2: Data Pass Through
1 x Reset Button
1 x Power Connector
Kensington Security Slot
1 x Power
2 x WLAN (Wireless Connection)
2 x LAN (2.4GHz & 5GHz)
Power Source
External Power Adapter
DC IN, 12V/ 2A
IEEE 802.3at Compliant Source
Active Ethernet (PoE)

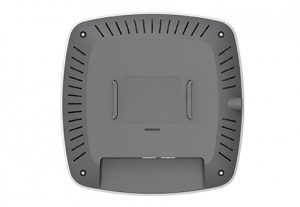

Ceiling Mount
Wall Mount
Dual-Radio Concurrent 2.4GHz & 5GHz
Access Point
2.4GHz: 2400MHz ~ 2835MHz
5GHz: 5150MHz ~ 5250MHz, 5470 ~ 5725MHz, 5725MHz ~ 5850MHz
Up to 21W
Up to 27 dBm on 2.4 GHz
Up to 27 dBm on 5 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams
4×4:4
Four (4) Spatial Stream SU-MIMO up to 1733 Mbps to a single client
Three (3) Spatial Stream MU-MIMO up to 1300 Mbps to three (3) MU-MIMO capable wireless devices simultaneously
2.4 GHz: Max 800
5 GHz: Max 1733
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS23)
802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS=1~4)
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
802.11ac supports very high throughput (VHT) – VHT 20/60/80 MHz channel width
802.11n supports high throughput (HT) – HT 20/40 MHZ channel width
802.11n supports very high throughput under the 2.4 GHz radio – VHT 40 MHz (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU
802.11b: BPSK, QPSK, CCK
802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Supports up to 16 SSIDs, 8 SSIDs per radio
Supports 802.1q SSID-to-VLAN Tagging
VLAN Pass-through
QoS
Compliant with IEEE 802.11e Standard
WMM
v1, v2c, v3
I/II, Private MIB
Standalone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster)
(with ezMaster & Neutron Switch)
AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Cluster Management
Remote AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP – Multiple SSIDs
Secured Guest Network
Captive Portal
Access Point Status Monitoring
Rogue AP Detection
Wireless Client Monitoring
Background Scanning
Auto Transmit Power
Auto Channel
Email Alert
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
SmartSync Redundancy
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Traffic Shaping
Web Interface (HTTP)
CLI (Telnet)
Managed Mode (by Neutron Switch/ezMaster)
Auto Reboot
One-Click Firmware Upgrade
Firmware Upgrade: Web interface or CLI (FTP/HTTP)
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in beacons
MAC Address Filtering, up to 64 MACS per SSID
Https Support
SSH Support
Client Isolation
L2 Isolation
Operating: 32°F to 122°F, 0°C to 50°C
Storage: -22°F to 176°F, -30°C to 80 °C
Operating: 90% or less
Storage: 90% or less
Weight: 3.7 lbs.
Width: 8.46″ (215 mm)
Length: 8.46″ (215 mm)
Height: 2.2″ (55.88 mm)
Weight: 5.07 lbs. (2.29 kg)
Width: 10.4″ (266 mm)
Length: 12.87″ (327 mm)
Height: 4.46″ (116 mm)
1 – EWS375AP 11ac Outdoor AP
1 – 12V/ 2A Power Adapter
1 – Ceiling Mounting Bracket Set
1 – T-Rail Mounting Kits
1 – Wall Mounting Screw Set
1 – Quick Installation Guide
FCC
IC
1 Year
EWS375AP |
EWS377AP |
EWS360AP |
EWS357AP |
EWS330AP |
|
|---|---|---|---|---|---|
| Model Number | |||||
| 無線網路標準 | 802.11ac Wave2 | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac |
| 無線頻段 | - | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz |
| 2.4 GHz最大傳輸速率 | 800 Mbps | 1,148 Mbps | 450 Mbps | 574 Mbps | 400 Mbps |
| 5 GHz最大傳輸速率 | 1,733 Mbps | 2,400 Mbps | 1,300 Mbps | 1,200 Mbps | 867 Mbps |
| 6 GHz最大傳輸速率 | - | - | - | - | - |
| 空間串流 | 4x4:4 | 4 x 4:4 | 3 x 3:3 | 2 x 2:2 | 2 x 2:2 |
| 2.4 GHz傳輸能力 | - | Up to 23 dBm | Up to 28 dBm | Up to 22 dBm | Up to 26 dBm |
| 5 GHz傳輸能力 | - | Up to 23 dBm | Up to 28 dBm | Up to 22 dBm | Up to 25 dBm |
| 6 GHz傳輸能力 | - | - | - | - | - |
| 天線 | 4x 3dBi (2.4 GHz) Omni ; 4x 3dBi (5 GHz) Omni | 4 x 3 dBi (2.4 GHz); 4 x 3 dBi (5 GHz) | 3 x 5 dBi (2.4 GHz); 3x 5 dBi (5 GHz) | 2 x 3 dBi (2.4 GHz); 2 x 3 dBi (5 GHz) | 2 x 5 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) |
| 網路線供電標準 | - | 802.3af/at | 802.3af/at | 802.3af/at | 802.3af |
| Scanning Radio | - | - | - | - | - |
| BLE | - | - | - | - | - |
| 有線網路連接埠 | - | 1 x 10/100/1000/2500 Ethernet Port | 1 x 10/100/1000 Ethernet Port | 1 x 10/100/1000 Ethernet Port | 1 x 10/100/1000 Ethernet Port |
| 安裝方式 | - | Ceiling / Wall | Ceiling / Wall | Ceiling / Wall | Ceiling / Wall |
| 尺寸 | 215*215*55.8 mm | 205 x 205 x 33.2 mm | 162 x 162 x 42 mm | 160 x 160 x 27 mm | φ 132.4 x 37.44 mm |
| 網狀無線網路技術 | - | Yes | Yes | Yes | Yes |
| Cloud To-Go app | - | - | - | - | - |
| EnWiFi app | - | Yes | Yes | Yes | Yes |
|
