FreeStyl 2 Handset

Physical Interface

FreeStyl 2 Handset

Buttons
Left & Right Soft Keys
Broadcast
Up/Down
Caller ID/Hold
Talk/Flash
End/Power
0 – 9, #
Speakerphone
Intercom

Jacks
Headset (2.5 mm)
DC in (on charger)

LED Indicators
N/A

Electrical Specifications

FreeStyl 2 Handset

Frequency
902-928 MHz

RF Power
Peak - 26 dBm; Average - 20 dBm

Channel Spacing
101 kHz

Number of Channels
252

Modulation
Differentially Encoded MSK

Multiple Access
Frequency Hopping TDD

Frequency Hopping Rate
100 per second

TDMA Frame Length
10 ms

Number of Talk Paths
1

Receiver Sensitivity
< -111 dBm (@ BER 10-2)

Antenna Connector
Proprietary

Antenna Gain
1.5 dBi (Short Antenna)
2.5 dBi (Long Antenna)

TX Power Control Range
400 mW

Telephone Interface
N/A

Speech Coding
8 kbps G.729A

Channel Coding
8 kbps Convolutional + CRC

Transmission Data Rate
85.333 kbps

User Data Rate
64 kbps duplex

Duplex
Time Division Duplex (TDD)

Voice Quality
TIA/EIA-470B

Number of System ID
65,536

Ring Signal
N/A

Auto-Attendant Coding
N/A

Flash Time
N/A

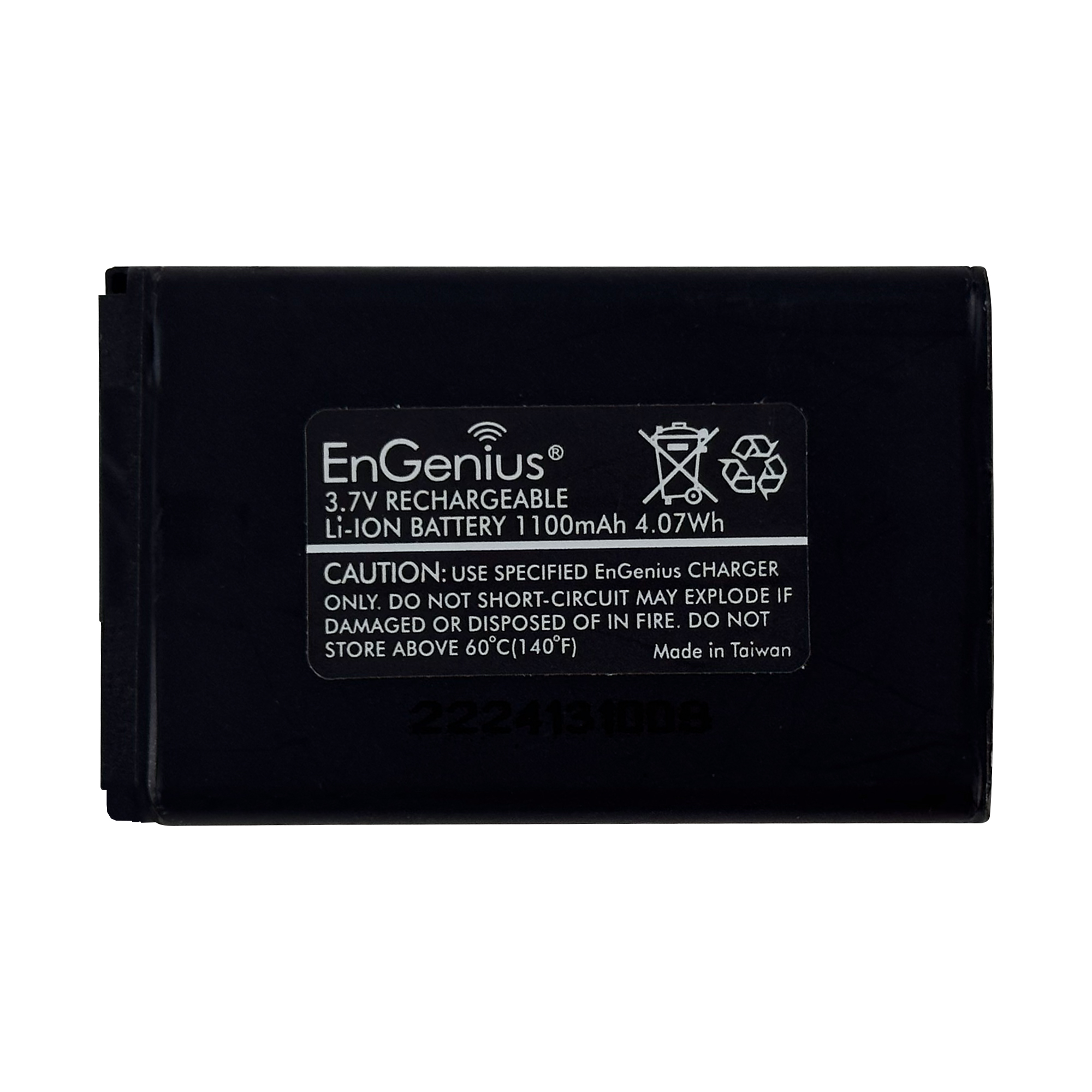

Power Source
1100mA Li-ion Battery

Charge Time
3 hours (from empty)

Charge Current
550/850 mA (charging cradle)

Battery Talk & Standby Time
~ 5.5 Hours/60 Hours

Environmental Specifications

FreeStyl 2 Handset

Regulation Compliance
FCC Part 15, Part 68;
CAN/DOC RSS210, CS03;
Hearing Aid Compatible

Operating Temperature
14 – 140 °F (-10 – 60 °C)

Storage Temperature
-40 – 158 °F (-40 – 70 °C)

Humidity
20 – 75 %

IP Rating
N/A

Dimensions
7.64” x 1.83” x 1.31” (194.05 x 46.59 x 33.35 mm)

Device Weight
.34 lbs. (156g) incl. battery
