New
Cam5MP Bullet IP66 256GB

Cloud Managed AI Outdoor Bullet with 256GB Storage

ECC120

Product Highlight

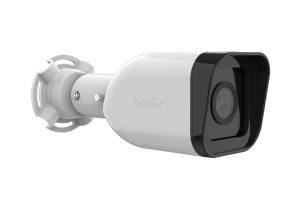

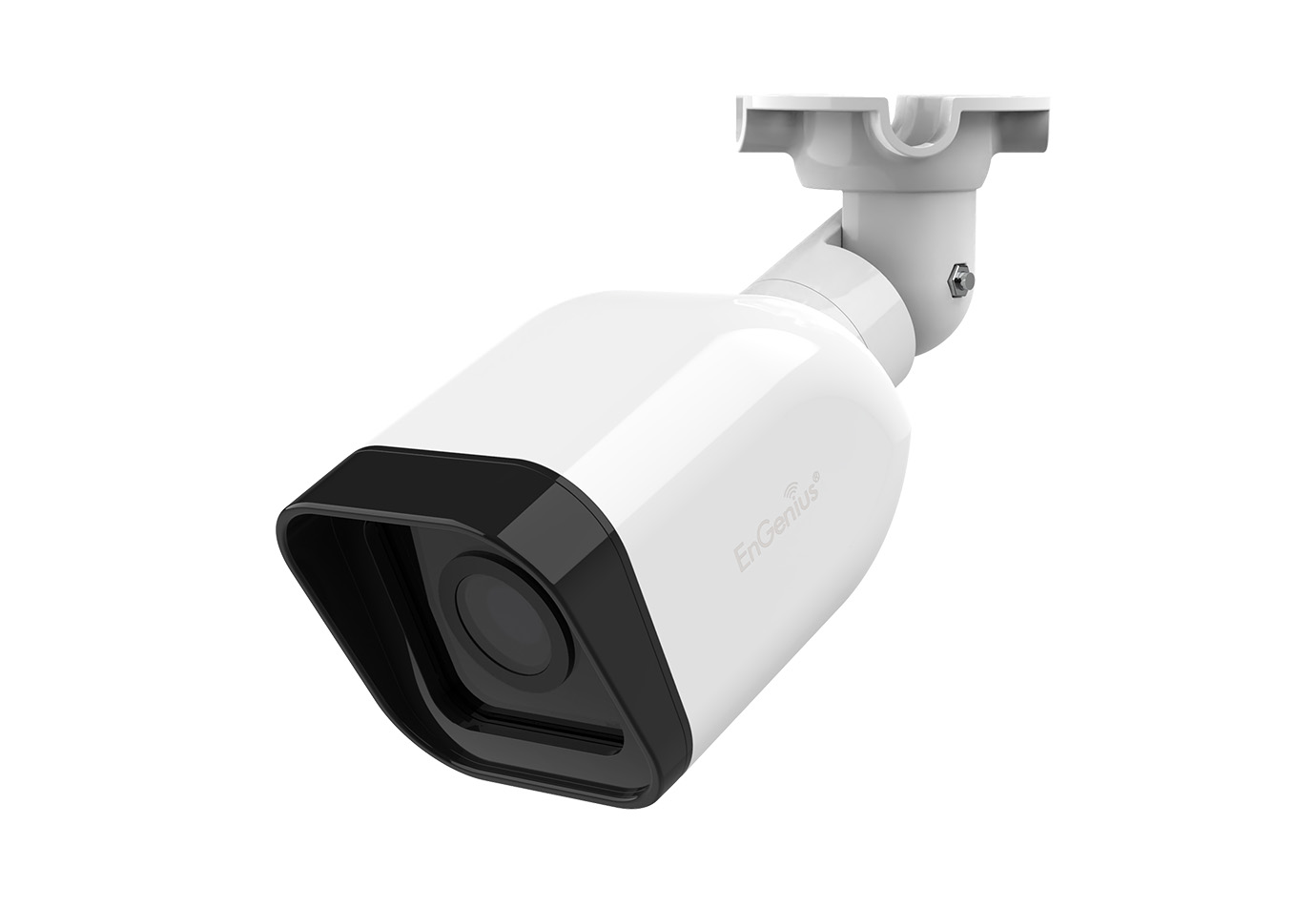

The EnGenius Cloud Camera Cam5MP Bullet (ECC120) is a cloud-managed outdoor surveillance solution for SMBs seeking scalable security. It enables seamless remote monitoring via the cloud dashboard and mobile app. This camera includes 256GB of built-in storage for reliable HD video recording, reducing reliance on traditional NVRs. Enhanced with a 5MP Sony Starvis sensor with HDR and a 30m IR range, it delivers crystal-clear imaging in low-light conditions. Built for durability, it is IP66-rated for harsh environments. Advanced AI technology detects unusual people and vehicles in real time, triggering instant alerts and enabling AI-powered searches to reduce footage review time from hours to minutes.

  • Cloud Dashboard Management and Mobile App monitoring anywhere
  • 5MP Sony Starvis sensor with HDR of crystal clear image quality day and night
  • 3DNR and long IR distance of 30m of excellent night vision
  • Camera durable 256GB storage for event and continuous recording 24x7
  • IP66 and working -20°C ~ 50°C / -4°F ~ 122°F for tough weather conditions
  • AI NPU of people and vehicle detection for instant alert, search, and statistics

Product Intro Video

Technical Specifications

HW version

V1.3

Optics

Sensor

1/2.8 “ Sony Starvis 5MP CMOS

Lens

Fixed 4mm

View Angle

H: 78°, V: 56°, D: 103°

Night Vision

Built-in IR LED illumination and IR cut filter

IR Distance

30m / 98ft

Lens Adjustment Range

Manual, Tilt: 0°~90°, Roll: 0°~180°

Video

Resolution

5MP 2592 x 1944 (4:3)

Frame Rate

20 FPS

Video Compression

H.265, H.264

Streaming Bitrate

768Kbps, 1.5Mbps, 2Mbps (Optional)

Video Processing

AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation

Audio

Microphone

Not supported

Speaker

Not supported

Advanced AI Analytics

AI NPU

Built-in

People Detection and Tracking

History search, People counting

Vehicle Detection and Tracking

History search, Vehicle counting

Tampering Detection

Event alert

Restricted Area Detection

Event alert, Object counting

Cross Line Detection

Event alert, Object counting

Room Occupation

Event alert

EnGenius Cloud AI

Support

Storage

Storage Size

256GB on board

Retention Method

24/7 seamless, Auto Recycling

Retention Days

Based on video quality and bitrate: 18 days (768kbps), 14 days (1.5Mbps), 7 days (2Mbps)

Storage Redundancy

Support EnGenius NVS and Cloud storage

System

LED Indicator

System power and status indicator

RTSP

Supported

Reset Button

External line

Networking Interface

10/100 MbE RJ45 port

Power Method

PoE 802.3af Class 3

Max. Power Consumption

7.5W

Operating Temperature

-20°C ~ 50°C / -4°F ~ 122°F

Humidity

98％

Certifications

CE, FCC

Mechanical

Enclosure material

Polycarbonate

Weatherproofing

IP66

Dimensions

Ø76x 200 mm (Ø2.99 x 7.88″)

Weight

330g / 11.64oz

Management Software

Web Browser

Chrome, Safari, Edge

Mobile App

Cloud To-Go on iOS and Android

TV App

EnGenius Sight on Google TV

Model Comparison

Cam5MP Bullet IP66 256GB

Cam5MP Bullet IP66 256GB

Cam5MP Bullet IP66

Cam5MP Dome IP67 256GB

Cam5MP Dome IP67

Cam8MP Dome IP67 512GB

Cam8MP Dome IP67 NS

Model Number ECC120 ECC120 ECC120Z ECC100 ECC100Z ECC500 ECC500Z
Resolution 5MP 5MP 5MP 5MP 5MP 4K 4K
Field of View H: 78° H: 78° H: 78° H: 102° H: 102° H: 97° ~ 35.3° H: 108.1° ~ 30.3°
Optical Zoom - - - - - 3x 3x
IR Night Vision 30m / 98ft 30m / 98ft 30m / 98ft >20m / 66ft >20m / 66ft 30m / 98ft 30m / 98ft
Audio - - - Microphone Microphone Microphone Microphone
Object Detection and Tracking V V - V Yes Yes Yes
Object Attribute - - - - - - -
Facial Recognition - - - - - Yes Yes
License Plate Recognition - - - - - Yes -
Storage 256GB 256GB - 256GB - 512GB -
Deployment PoE PoE PoE PoE PoE PoE PoE+
Weatherproofing IP66 IP66 IP66 IP67 IP67 IP67 IP67
Resistance - - - IK10 IK10 IK10 IK10
