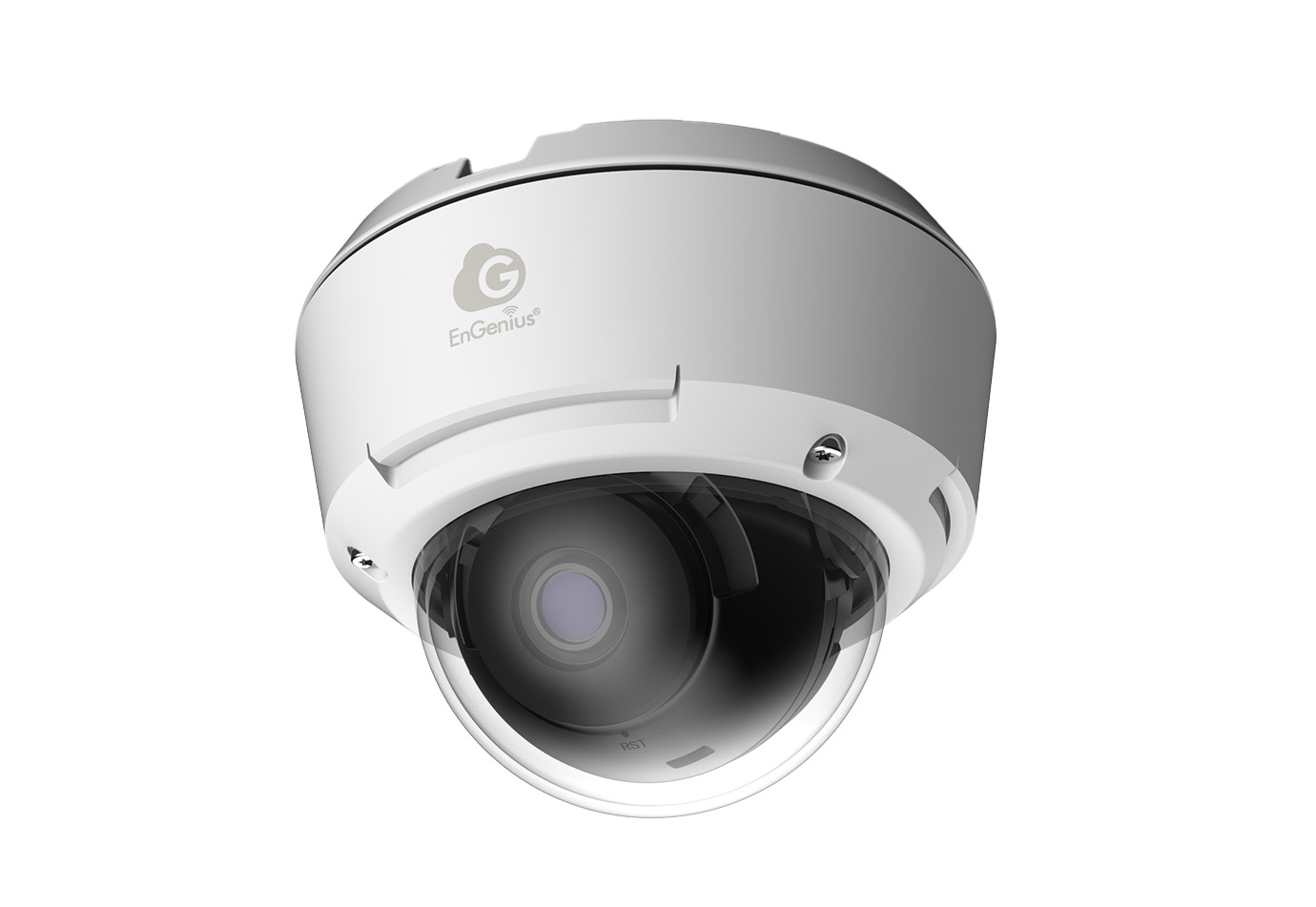

Cam5MP Dome IP67 256GB
EnGenius Cloud Camera Cam5MP Dome（ECC100）是一款專為中小型企業打造、具備擴充彈性的雲端管理戶外監控解決方案，可透過雲端管理介面與行動 App，輕鬆進行遠端監控。內建 256GB 儲存空間，可提供可靠的高畫質影像錄製，降低對傳統 NVR 的依賴。搭載 500 萬畫素 Sony STARVIS 感光元件、HDR、132° 視角及 20 公尺紅外線照明距離，可在各種光線環境下提供清晰影像。具備 IP67 防塵防水與 IK10 防暴等級，可因應嚴苛環境。進階 AI 技術可即時偵測異常人員與車輛並發出即時警示，搭配 AI 智慧搜尋，將錄影畫面檢視時間從數小時縮短至數分鐘。
V1.3
1/2.8 “ Sony Starvis 5MP CMOS
Fixed 3.16mm
H: 102°, V: 71.6°, D: 132°
Built-in IR LED illumination and IR cut filter
>20m / 66ft
Manual, Pan: 0° ~ 350°, Tilt: 0° ~ 90°, Roll: 0° ~ 350°
5MP 2592 x 1944 (4:3)
20 FPS
H.265, H.264
768Kbps, 1.5Mbps, 2Mbps (Optional)
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation
AAC, G.711
Built-in, 5m / 15ft distance
Not supported
Built-in
History search, People counting
History search, Vehicle counting
Event alert
Event alert, Object counting
Event alert, Object counting
Event alert
Support
V1.3
1/2.8 “ Sony Starvis 5MP CMOS
Fixed 3.16mm
H: 102°, V: 71.6°, D: 132°
Built-in IR LED illumination and IR cut filter
>20m / 66ft
Manual, Pan: 0° ~ 350°, Tilt: 0° ~ 90°, Roll: 0° ~ 350°
5MP 2592 x 1944 (4:3)
20 FPS
H.265, H.264
768Kbps, 1.5Mbps, 2Mbps (Optional)
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation
AAC, G.711
Built-in, 5m / 15ft distance
Not supported
Built-in
History search, People counting
History search, Vehicle counting
Event alert
Event alert, Object counting
Event alert, Object counting
Event alert
Support
256GB on board
24/7 seamless, Auto Recycling
Based on video quality and bitrate: 18 days (768kbps), 14 days (1.5Mbps), 7 days (2Mbps)
Support EnGenius NVS and Cloud storage
System power and status indicator
Supported
Internal
10/100 MbE RJ45 port
PoE 802.3af Class 3
6.5W
-20°C ~ 50°C / -4°F ~ 122°F
98％
CE, FCC
Aluminum alloy, Polycarbonate
IP67
IK10
Ø121.7 x 94.8 mm (Ø4.79 x 3.73″)
525g / 18.5oz
Chrome, Safari, Edge
Cloud To-Go on iOS and Android
EnGenius Sight on Google TV
256GB on board
24/7 seamless, Auto Recycling
Based on video quality and bitrate: 18 days (768kbps), 14 days (1.5Mbps), 7 days (2Mbps)
Support EnGenius NVS and Cloud storage
System power and status indicator
Supported
Internal
10/100 MbE RJ45 port
PoE 802.3af Class 3
6.5W
-20°C ~ 50°C / -4°F ~ 122°F
98％
CE, FCC
Aluminum alloy, Polycarbonate
IP67
IK10
Ø121.7 x 94.8 mm (Ø4.79 x 3.73″)
525g / 18.5oz
Chrome, Safari, Edge
Cloud To-Go on iOS and Android
EnGenius Sight on Google TV
Cam5MP Dome IP67 256GB |
Cam5MP Dome IP67 |
Cam5MP Bullet IP66 256GB |
Cam5MP Bullet IP66 |
Cam8MP Dome IP67 512GB |
Cam8MP Dome IP67 NS |
|
|---|---|---|---|---|---|---|
| Model Number | ECC100 | ECC100Z | ECC120 | ECC120Z | ECC500 | ECC500Z |
| Resolution | 5MP | 5MP | 5MP | 5MP | 4K | 4K |
| Field of View | H: 102° | H: 102° | H: 78° | H: 102° | H: 97° ~ 35.3° | H: 108.1° ~ 30.3° |
| Optical Zoom | - | - | - | - | 3x | 3x |
| IR Night Vision | >20m / 66ft | >20m / 66ft | 30m / 98ft | >20m / 66ft | 30m / 98ft | 30m / 98ft |
| Audio | Microphone | Microphone | - | Microphone | Microphone | Microphone |
| Object Detection and Tracking | V | Yes | - | Yes | V | Yes |
| Room Occupation | Yes | Yes | Yes | Yes | Yes | Yes |
| Hands-up Detection | - | - | - | - | Yes | Yes |
| Facial Recognition | - | - | - | - | V | Yes |
| License Plate Recognition | - | - | - | - | V | - |
| Storage | 256GB | - | 256GB | - | 512GB | - |
| Deployment | PoE | PoE | PoE | PoE | PoE | PoE+ |
| Weatherproofing | IP67 | IP67 | IP66 | IP67 | IP67 | IP67 |
| Resistance | IK10 | IK10 | - | - | IK10 | IK10 |
|
