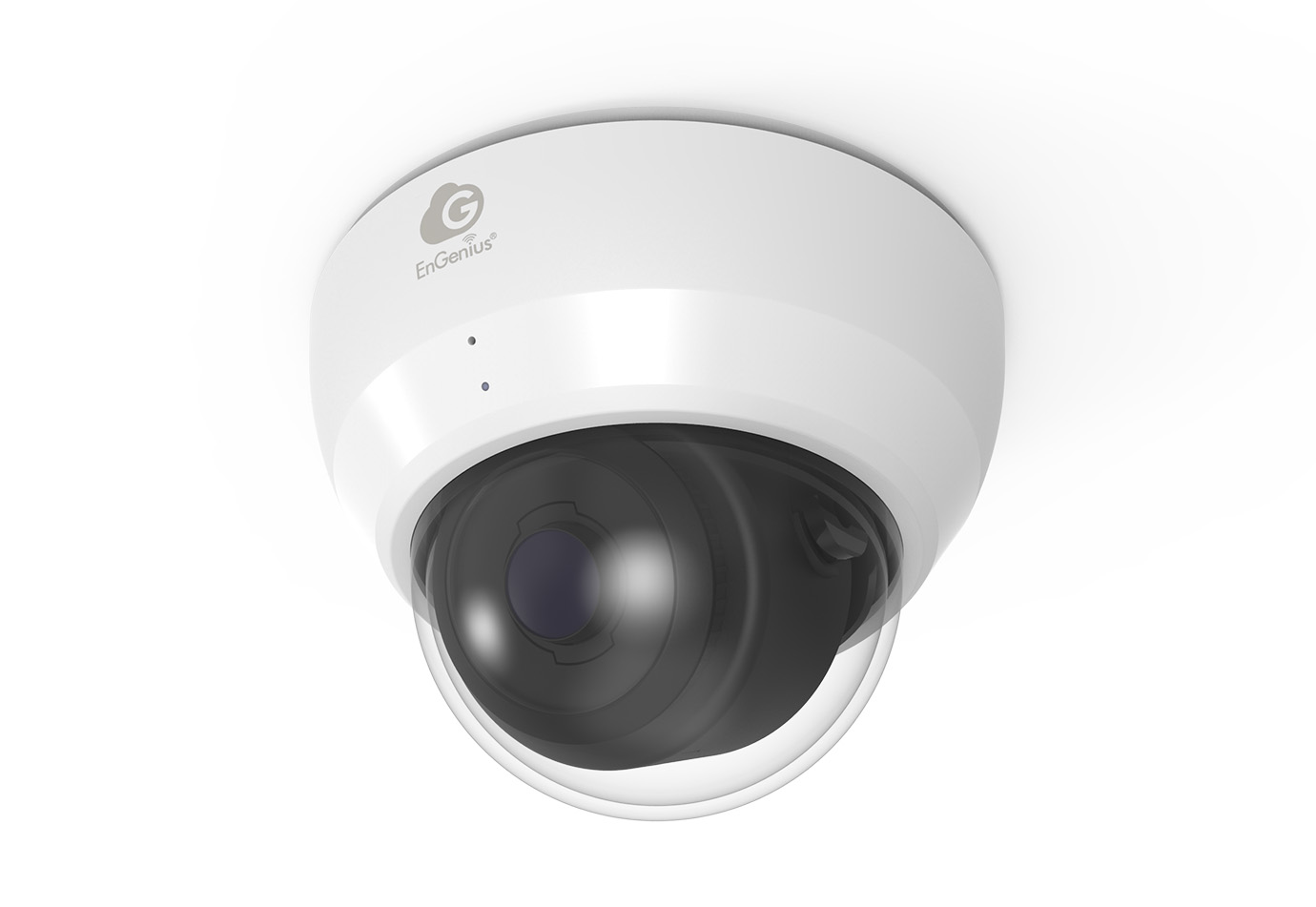

Cam8MP Dome IP67 NS
EnGenius Cloud Camera Cam8MP Dome IP67 NS（ECC500Z）搭載 AI 人臉辨識功能，可透過即時警示提升企業安全監控能力。進階 AI 智慧搜尋可大幅縮短錄影畫面搜尋時間，並可透過 URL 輕鬆分享影像片段。基於隱私考量，本攝影機採無 microSD 儲存設計，可與 EnGenius NVS 整合，將影像備份至地端，提供可靠且高可用性的集中式錄影。透過 EnGenius Cloud 平台，可提供具擴充彈性的遠端監控與管理。搭載 800 萬畫素 Sony STARVIS 感光元件、HDR，以及 IP67 防塵防水與 IK10 防暴等級機身，可提供穩定可靠的戶外安全監控。
V1.0
1/2.8 “ Sony Starvis 8MP CMOS
Varifocal 3.2 ~ 10.5mm motorized zoom, Remote zoom, AF
H: 108.1° ~ 30.3°, V: 56.3° ~ 17.1°, D: 130.9° ~ 34.8°
Built-in IR LED illumination and IR cut filter
30m / 98ft
Manual, Pan: 0° ~ 350°, Tilt: 0° ~ 60°, Roll: 0° ~ 350°
8MP 3840×2160 (16:9)
20 FPS
H.265, H.264, Smart Stream
600Kbps ~ 6Mbps (Optional, Adaptive)
AE, AWB, AGC, BLC, LDC, True WDR(120dB), HDR, 3DNR, Privacy Mask, OSD, Video Orientation
AAC, G.711
Built-in, 5m / 15ft distance
Not supported
Built-in
History search, People counting
History search, Vehicle counting
Event alert
Event alert, Object counting
Event alert, Object counting
Event alert
Event alert
History search, Search by Photo, Target alert, Tracking Timeline
Support
V1.0
1/2.8 “ Sony Starvis 8MP CMOS
Varifocal 3.2 ~ 10.5mm motorized zoom, Remote zoom, AF
H: 108.1° ~ 30.3°, V: 56.3° ~ 17.1°, D: 130.9° ~ 34.8°
Built-in IR LED illumination and IR cut filter
30m / 98ft
Manual, Pan: 0° ~ 350°, Tilt: 0° ~ 60°, Roll: 0° ~ 350°
8MP 3840×2160 (16:9)
20 FPS
H.265, H.264, Smart Stream
600Kbps ~ 6Mbps (Optional, Adaptive)
AE, AWB, AGC, BLC, LDC, True WDR(120dB), HDR, 3DNR, Privacy Mask, OSD, Video Orientation
AAC, G.711
Built-in, 5m / 15ft distance
Not supported
Built-in
History search, People counting
History search, Vehicle counting
Event alert
Event alert, Object counting
Event alert, Object counting
Event alert
Event alert
History search, Search by Photo, Target alert, Tracking Timeline
Support
24/7 seamless, Auto Recycling for external storage
AES256
Support EnGenius NVS and Cloud storage
System power and status indicator
Supported
Internal
10/100/1000 MbE RJ45 port
802.3at PoE+
16.1W
-40°C ~ 60°C / -40°F ~ 140°F
5～90％
CE, FCC
Aluminum alloy, Polycarbonate
IP67
IK10
Ø145 x 105 mm (Ø5.71x 4.14″)
740g / 26.11oz
Chrome, Safari, Edge
Cloud To-Go on iOS and Android
EnGenius Sight on Google TV
24/7 seamless, Auto Recycling for external storage
AES256
Support EnGenius NVS and Cloud storage
System power and status indicator
Supported
Internal
10/100/1000 MbE RJ45 port
802.3at PoE+
16.1W
-40°C ~ 60°C / -40°F ~ 140°F
5～90％
CE, FCC
Aluminum alloy, Polycarbonate
IP67
IK10
Ø145 x 105 mm (Ø5.71x 4.14″)
740g / 26.11oz
Chrome, Safari, Edge
Cloud To-Go on iOS and Android
EnGenius Sight on Google TV
Cam8MP Dome IP67 NS |
Cam8MP Dome IP67 512GB |
Cam5MP Bullet IP66 |
Cam5MP Bullet IP66 256GB |
Cam5MP Dome IP67 |
Cam5MP Dome IP67 256GB |
|
|---|---|---|---|---|---|---|
| Model Number | ECC500Z | ECC500 | ECC120Z | ECC120 | ECC100Z | ECC100 |
| Resolution | 4K | 4K | 5MP | 5MP | 5MP | 5MP |
| Field of View | H: 108.1° ~ 30.3° | H: 97° ~ 35.3° | H: 102° | H: 78° | H: 102° | H: 102° |
| Optical Zoom | 3x | 3x | - | - | - | - |
| IR Night Vision | 30m / 98ft | 30m / 98ft | >20m / 66ft | 30m / 98ft | >20m / 66ft | >20m / 66ft |
| Audio | Microphone | Microphone | Microphone | - | Microphone | Microphone |
| Object Detection and Tracking | Yes | V | Yes | - | Yes | V |
| Room Occupation | Yes | Yes | Yes | Yes | Yes | Yes |
| Hands-up Detection | Yes | Yes | - | - | - | - |
| Facial Recognition | Yes | V | - | - | - | - |
| License Plate Recognition | - | V | - | - | - | - |
| Storage | - | 512GB | - | 256GB | - | 256GB |
| Deployment | PoE+ | PoE | PoE | PoE | PoE | PoE |
| Weatherproofing | IP67 | IP67 | IP67 | IP66 | IP67 | IP67 |
| Resistance | IK10 | IK10 | - | - | IK10 | IK10 |
|
