Cloud7 2×2

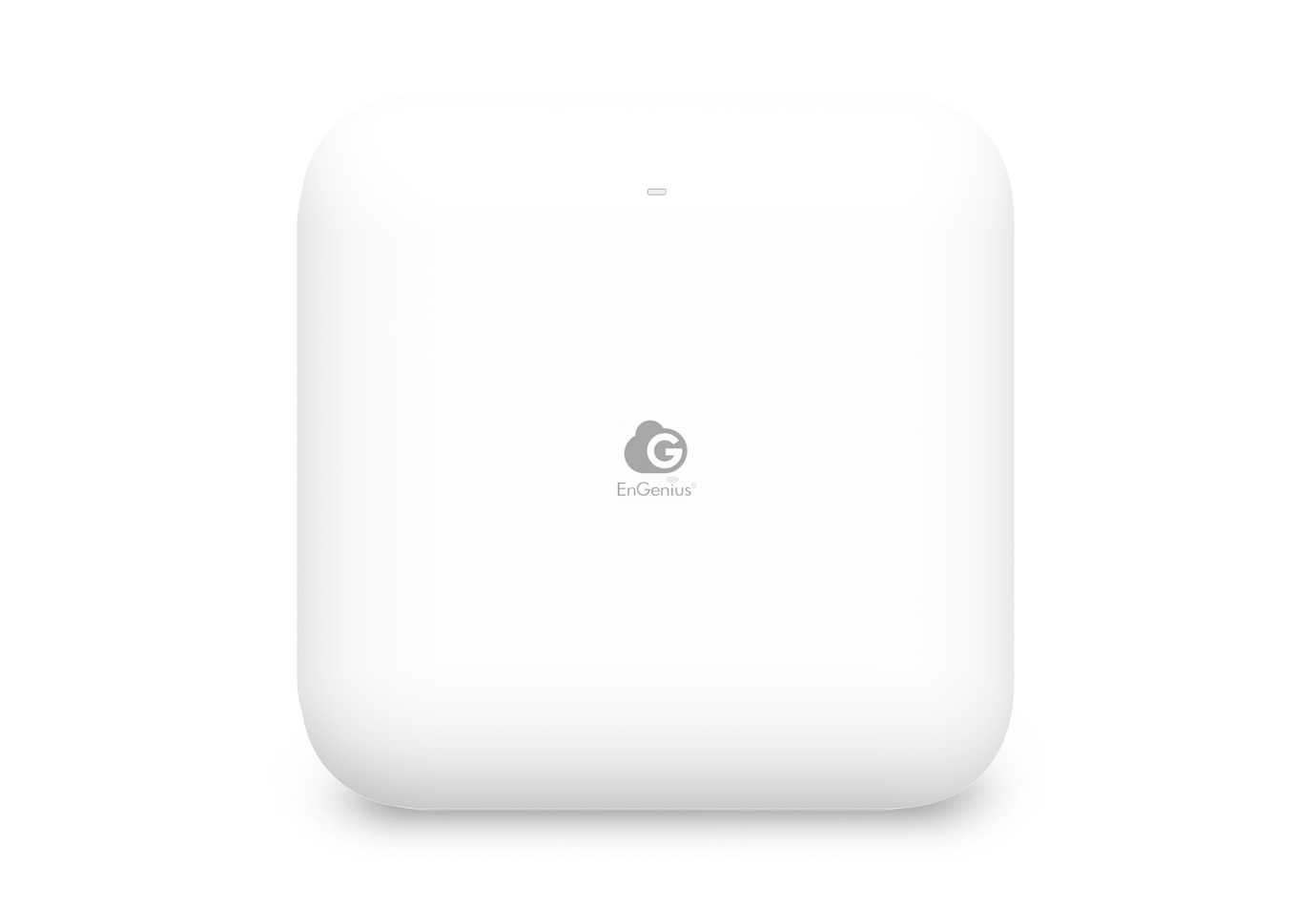

Cloud Managed Wi-Fi 7 2x2 Indoor Access Point

ECW510P
Dual-Band
BE5000

Product Highlight

EnGenius Cloud Managed Wi-Fi 7 2x2 Access Point ECW510P supports dual concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to 4,300 Mbps (5 GHz), and up to 700 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

  • Dual concurrent 802.11be Wi-Fi 7 architecture & backward compatibility
  • Supercharged speeds up to 4,300 Mbps (5 GHz) & up to 700 Mbps (2.4 GHz)
  • 2.5 GbE realizes greater throughput and supports 802.3at and PoE injector input for flexible installation over 100 meters (328 feet)
  • WPA3 & WPA2-AES authentication support
  • Cloud Managed with AP & Mesh mode
  • Quick-scan device registration & configuration and remote monitoring & troubleshooting
  • Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
  • Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Technical Specifications

Standards

IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab

Antenna

2 x 2.4 GHz: 3 dBi(Integrated Omni-Directional)
2 x 5 GHz: 3.5 dBi(Integrated Omni-Directional)

Scanning Radio

N/A

BLE

N/A

Physical Interfaces

1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button

LED Indicators

1 x Multi-color LED

Power Source

Power-over-Ethernet: 802.3at Input
12VDC /2.5A Power Adapter

Maximum Power Consumption

21.384 W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 19 dBm on 2.4 GHz
Up to 19 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Radio Chains

2 × 2:2

SU-MIMO Capability

Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with EHT240 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO Capability

Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with EHT240 to a 2×2 wireless device under the 5GHz radio simultaneously.

Supported Data Rates

802.11be:
2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 2)
5 GHz: Max 4,300 (MCS0 to MCS13, NSS = 1 to 2)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/240/320MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

DFS Certification

FCC/CE/IC/JP

AirGuard (WIPS/WIDS)

N/A

Zero-wait DFS

N/A

Dedicated Scanning Radio

N/A

Max Concurrent User

256

Client Balancing

Yes

Auto Channel Selection

Yes

Management Features

Multiple BSSID

8 SSIDs on both 2.4GHz and 5GHz bands

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliance With IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11k/v/r

Wireless Security

WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Interface

IPv4

Local Web Access

Supports HTTP or HTTPS

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -4 ºF~158 ºF (-20 ºC~70 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

Weight

513.6g

Dimensions

Width: 158 mm
Length: 158 mm
Height: 35.8mm

Package Contents

1 – ECW510P Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card

Regulatory Compliance

FCC
IC
CE
UKCA
AU
JP
TW

Model Comparison

Cloud7 2x2

Cloud7 2x2

Cloud7 2x2x2

Cloud7 2x2x2

Cloud7 2x3x3 Lite

Cloud7 4x4x4

Cloud7 4x4x4 S

Model Number ECW510P ECW510 ECW526 ECW520 ECW516L ECW536 ECW536S
無線網路標準 11be 11be 11be(Wi-Fi 7) 11be Wi-Fi 7 (11be) 11be(Wi-Fi 7) 11be
無線頻段 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6GHz 2.4 GHz & 5 GHz & 6 GHz 2.4 GHz & 5 GHz & 6 GHz
2.4 GHz最大傳輸速率 700 Mbps 700 Mbps 700 Mbps 700 Mbps 700 Mbps 1,400 Mbps 1,400 Mbps
5 GHz最大傳輸速率 4,300 Mbps 4,300 Mbps 2,900 Mbps 4,300 Mbps 4,300 Mbps 5,800 Mbps 5,800 Mbps
6 GHz最大傳輸速率 - - 5,800 Mbps 5,800 Mbps 8,700 Mbps 11,600 Mbps 11,600 Mbps
空間串流 2x2:2 2x2:2 2x2:2 2x2:2 2 x 2:2(2.4GHz), 3x 3:3(5GHz & 6GHz) 4 × 4:4 4 x 4:4
2.4 GHz傳輸能力 19 dBm 23 dBm 23 dBm 23 dBm 22 dBm 25 dBm 25 dBm
5 GHz傳輸能力 19 dBm 21 dBm 22 dBm 23 dBm 22 dBm 24 dBm 24 dBm
6 GHz傳輸能力 - - 22 dBm 20 dBm 22 dBm 24 dBm 24 dBm
天線 2.4 GHz:2 x 3 dBi Omni;5 GHz:2 x 3.5 dBi Omni; 2.4 GHz:2.02 x 3 dBi Omni;5 GHz:2 x 5 dBi Omni; 2 x 5 dBi Omni (2.4 GHz); 2 x 6 dBi Omni(5 GHz); 2 x 6 dBi Omni(6 GHz); 2.4 GHz:2 x 6 dBi Omni;5 GHz:2 x 6 dBi Omni;6 GHz:2 x 6 dBi Omni; 2 x 5 dBi (2.4 GHz) ; 3 x 5 dBi (5 GHz) ; 3 x 5 dBi 6 GHz) 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz); 2.4 GHz:4 x 5 dBi Omni;5 GHz:4 x 6 dBi Omni;6 GHz:4 x 5 dBi Omni;
網路線供電標準 802.3at 802.3at 802.3at 802.3at 802.3at 802.3bt 802.3bt
Scanning Radio - - - - - - Yes
BLE - - - - - - Yes
Power Consumption (Peak) 21.384 W 15.5 W 21W 25.4 W 20.7W 38W 37 W
有線網路連接埠 1x 2.5GE PoE+port 1x 2.5GE PoE+port 1x 10GE PoE+port 1x 2.5GE PoE+port 1x 2.5GE PoE+ port 1x 10GE PoE++port ; 1x 10GE port 1x 10GE PoE++port;1x 10GE port
安裝方式 Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceilling Wall/ Ceiling Wall/ Ceilling
尺寸 158 x 158 x 35.8 mm 160 x 160 x 32 mm 190 x 190 x 39 mm 158 x 158 x 35.8 mm 205 x 205 x 33 mm 230 x 230 x 37mm 230 x 230 x 39.5mm
網狀無線網路技術 Yes Yes Yes - Yes Yes Yes
Cloud To-Go app Yes Yes Yes Yes Yes Yes Yes
EnWiFi app - - - - - - -
