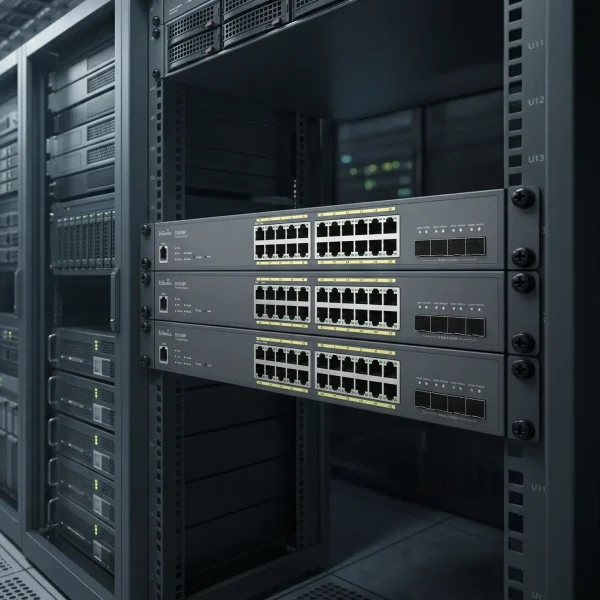

24-Port 240W
PoE+ Switch
The EnGenius ECS1528P cloud-managed switch delivers 24 x Gigabit PoE+ ports, Layer 2+ switching features, 4 x 10G fiber uplinks, 240W PoE Budget, and centralized cloud management for scalable enterprise networks.
Reliable Power and Connectivity at Scale
The EnGenius ECS1528P offers high-capacity Gigabit PoE+ switching, advanced Layer 2+ functionality, and centralized cloud control for expanding organizations.
24 x Gigabit PoE+ Ports with 10G Fiber Uplinks
Support wireless APs, cameras, and VoIP deployments with ample PoE+ (802.3at/af) power capacity.
240W PoE Budget
Provide ample power for high-performance devices without requiring additional power sources.
Flexible Management, Simplified
Manage switches with EnGenius Cloud, Private Cloud, Standalone Mode, or remotely via GUI and CLI.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
24 10/100/1000 Mbps Ports + 4x SFP+ Ports
Switching Capacity
128Gbps
SDRAM
512MB
Flash Memory
128MB
PoE+ Capable Ports
1-24
Total PoE Budget
240W
Power Source
100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Software Features (L3 Features)
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Software Features (L2 Features)
Network Management
EnGenius Cloud
Local Web GUI
MAC Address Table
16K
Jumbo Frame
10K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-Number of Priority Queues Supported
Queue 8
Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Web Graphical User Interface(GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control
Environmental & Physical
Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing)
Operating: 5% – 95%
Device Dimensions & Weights
Package Contents
1 x Cloud Managed Gigabit Switch
1 x Quick Installation Guide
1 x Power Cord
1 x RJ45 Console Cable
1 x Rack Mount Kit
ECS1528P Device
Weight: 6.63 Ibs. (3.01 kg)
Width: 17.32” (440 mm)
Depth: 10.23” (260 mm)
Height: 1.73” (44 mm)
ECS1528P Packaging
Weight: 8.4 lbs. (3.81 kg)
Width: 20.94” (532 mm)
Depth: 13.62” (346 mm)
Height: 3.97” (101 mm)
Certifications
CE
FCC
IC
Warranty
5 years
PoE Budget Planning
Calculate your network devices on this switch's total power over ethernet budget.
Available Models
Budget Status
PoE power calculations are estimates only. Actual available PoE capacity may be up to 6W lower than the switch's published PoE budget. Available power may vary based on cable length and quality, ambient temperature, installation conditions, and other environmental factors.
