Access Point: Cloud-Managed Indoor Outdoor Wi-Fi

Tri-Band Wi-Fi 7 Comparison

Maximum Wi-Fi 7 capacity and performance for demanding business environments.

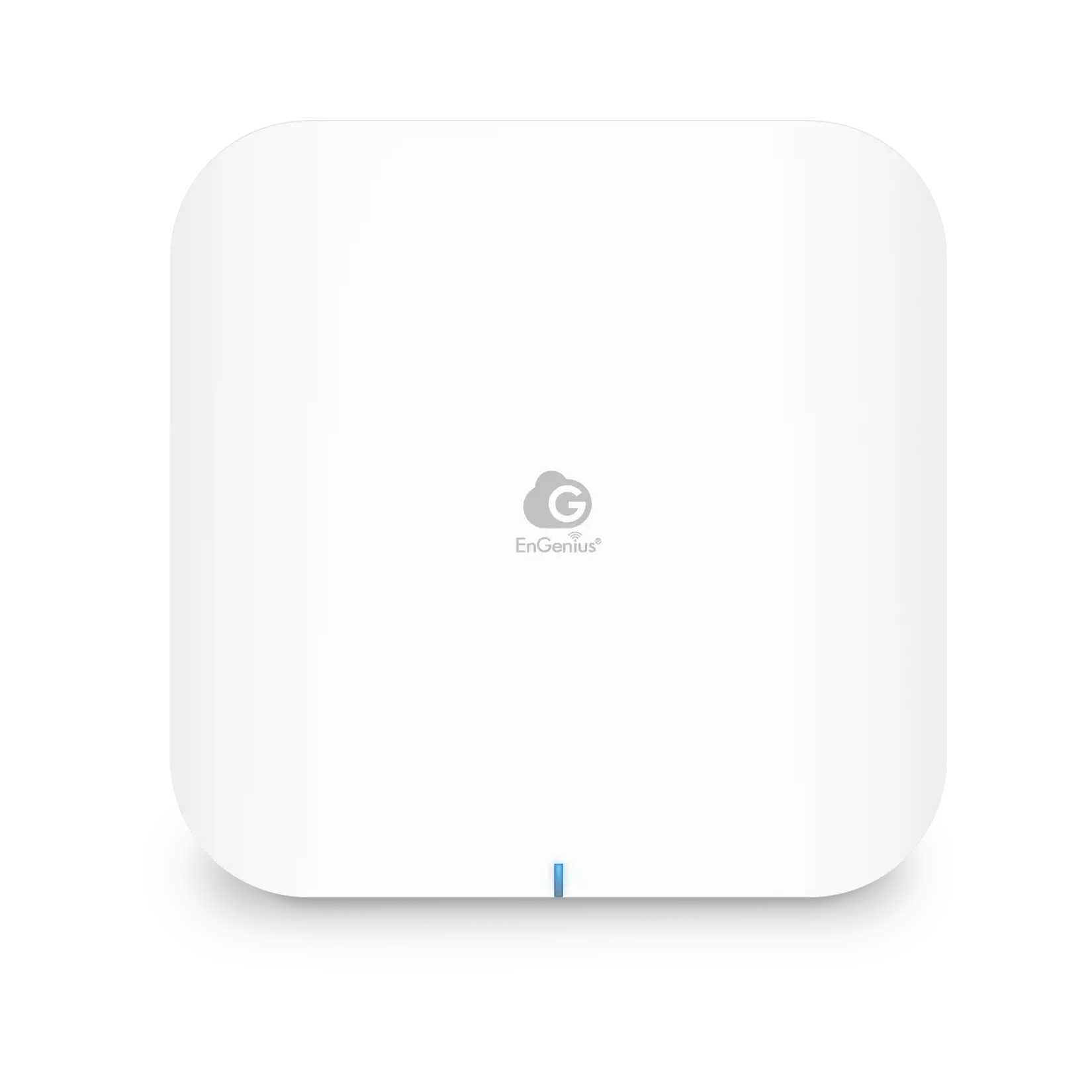

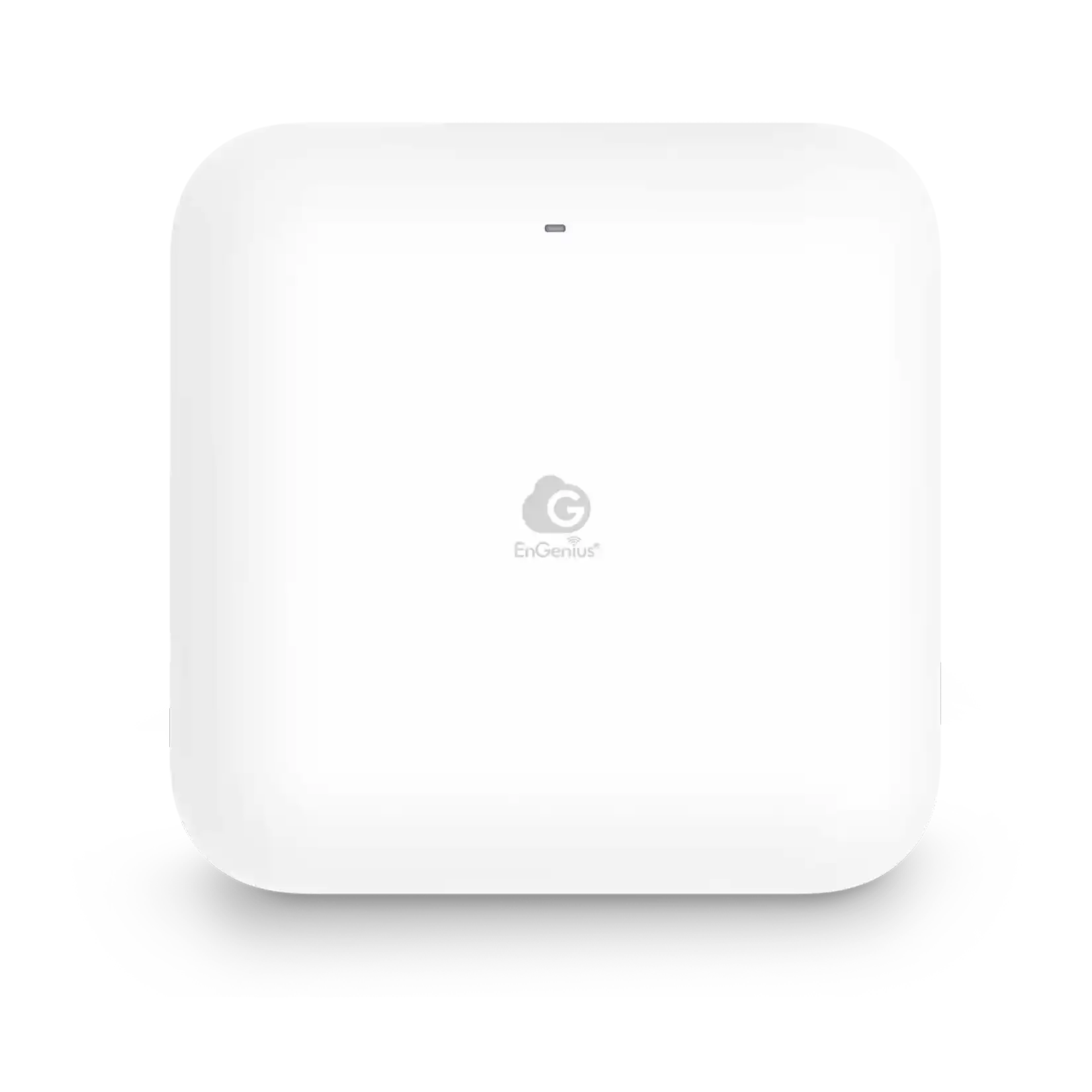

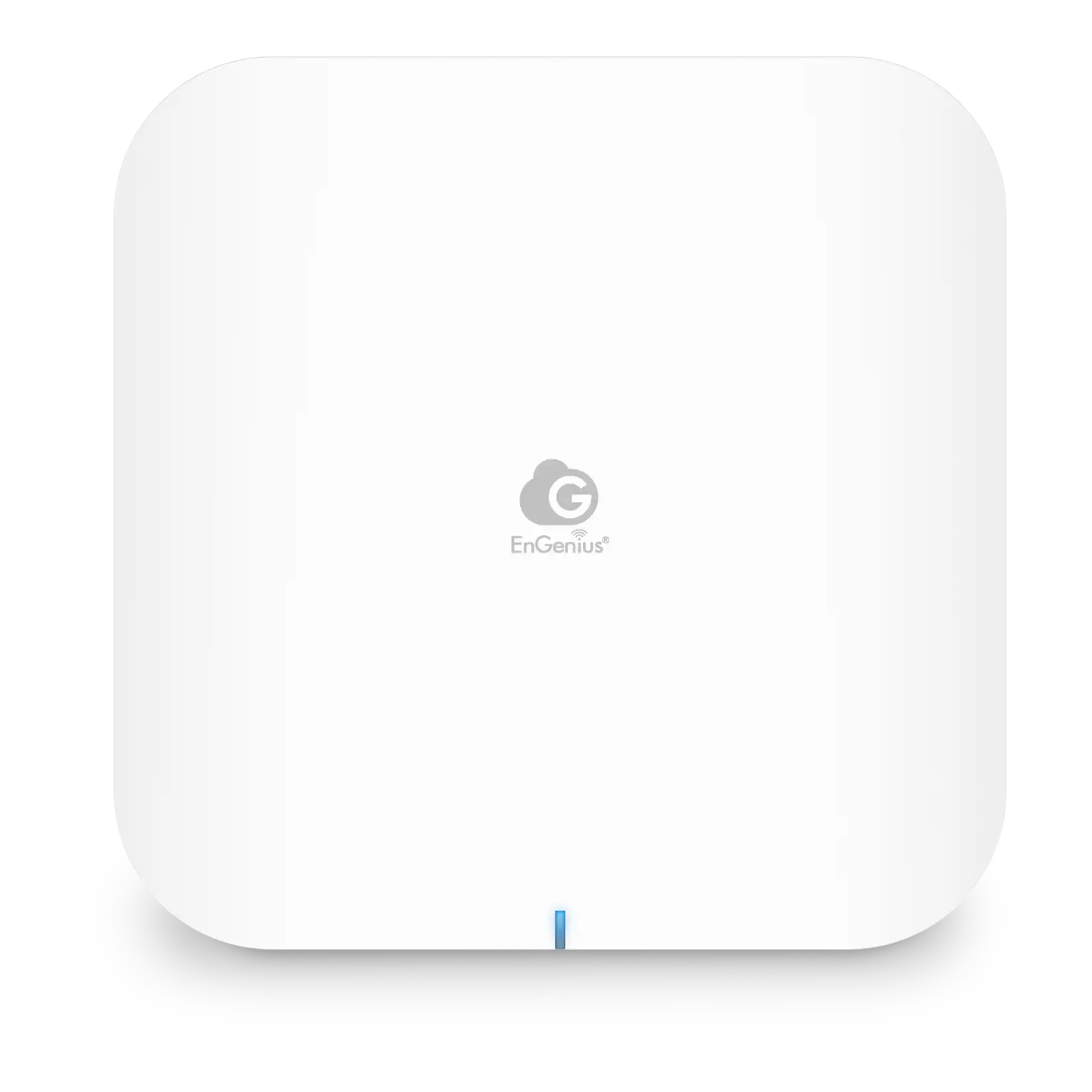

Models ECW536S Security ECW536 Premium ECW526 ECW520
Wi-Fi Standard	Wi-Fi 7	Wi-Fi 7	Wi-Fi 7	Wi-Fi 7
Antenna	4x4x4	4x4x4	2x2x2	2x2x2
6GHz Wireless	11.5 Gbps	11.5 Gbps	5.8 Gbps	5.8 Gbps
5GHz Wireless	5.8 Gbps	5.8 Gbps	2.9 Gbps	4.3 Gbps
2.4GHz Wireless	1.4 Gbps	1.4 Gbps	800 Mbps	700 Mbps
Port Speed	2 x 10 Gbps	2 x 10 Gbps	1 x 10 Gbps	1 x 2.5 Gbps
AirGuard™ Threat Detection	Yes	N/A	N/A	N/A
BLE Presence Services	Yes	N/A	N/A	N/A
Power over Ethernet	802.3bt	802.3bt	802.3at	802.3at
Connected Users	1,000+	1,000+	1,000	500+
Coverage (sq ft)	1,500 Indoor	1,500 Indoor	1,250 Indoor	1,250 Indoor

Dual-Band Wi-Fi 7 Comparison

Next-generation Wi-Fi 7 connectivity with fast, efficient, and cost-effective performance.

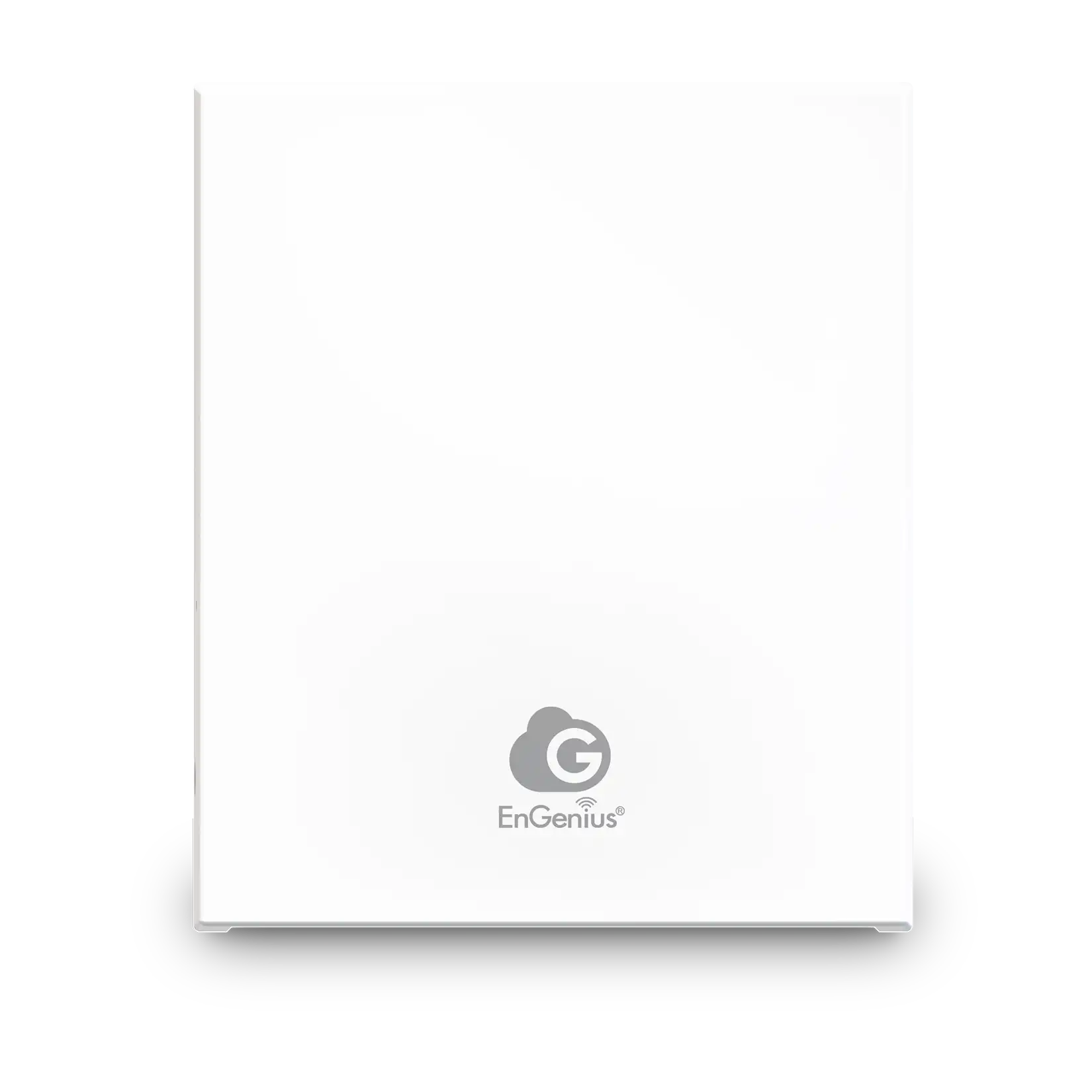

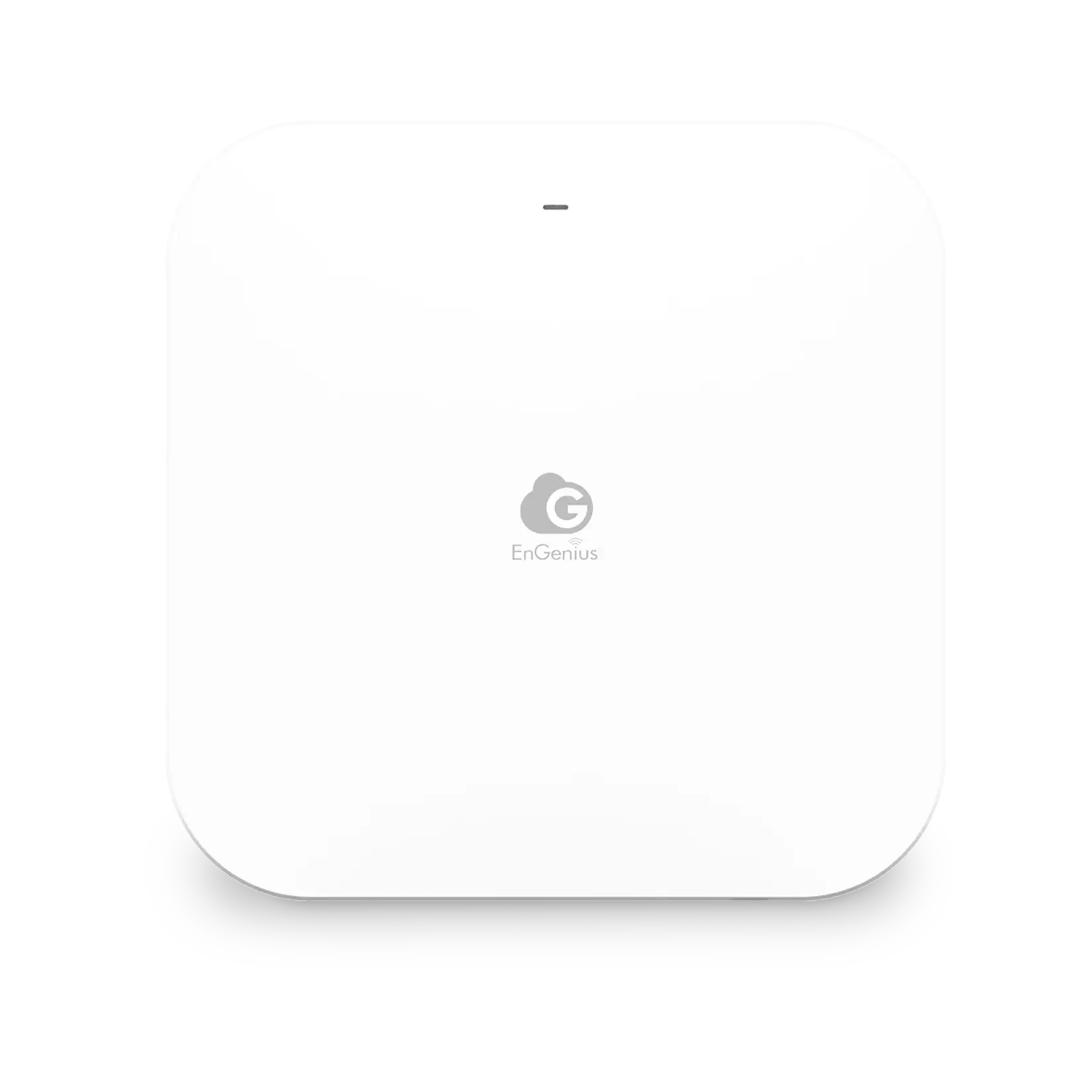

Models ECW515 In-Room ECW510
Wi-Fi Standard	Wi-Fi 7	Wi-Fi 7
Antenna	2x2	2x2
6GHz Wireless	N/A	N/A
5GHz Wireless	2.9 Gbps	4.3 Gbps
2.4GHz Wireless	700 Mbps	700 Mbps
Port Speed	1 x 2.5 Gbps	1 x 2.5 Gbps
AirGuard™ Threat Detection	N/A	N/A
BLE Presence Services	N/A	N/A
Power over Ethernet	802.3at	802.3at
Connected Users	100	400
Coverage (sq ft)	1,000 Indoor	1,000 Indoor

Wi-Fi 6 Comparison

Reliable business-class wireless performance with cloud-managed simplicity.

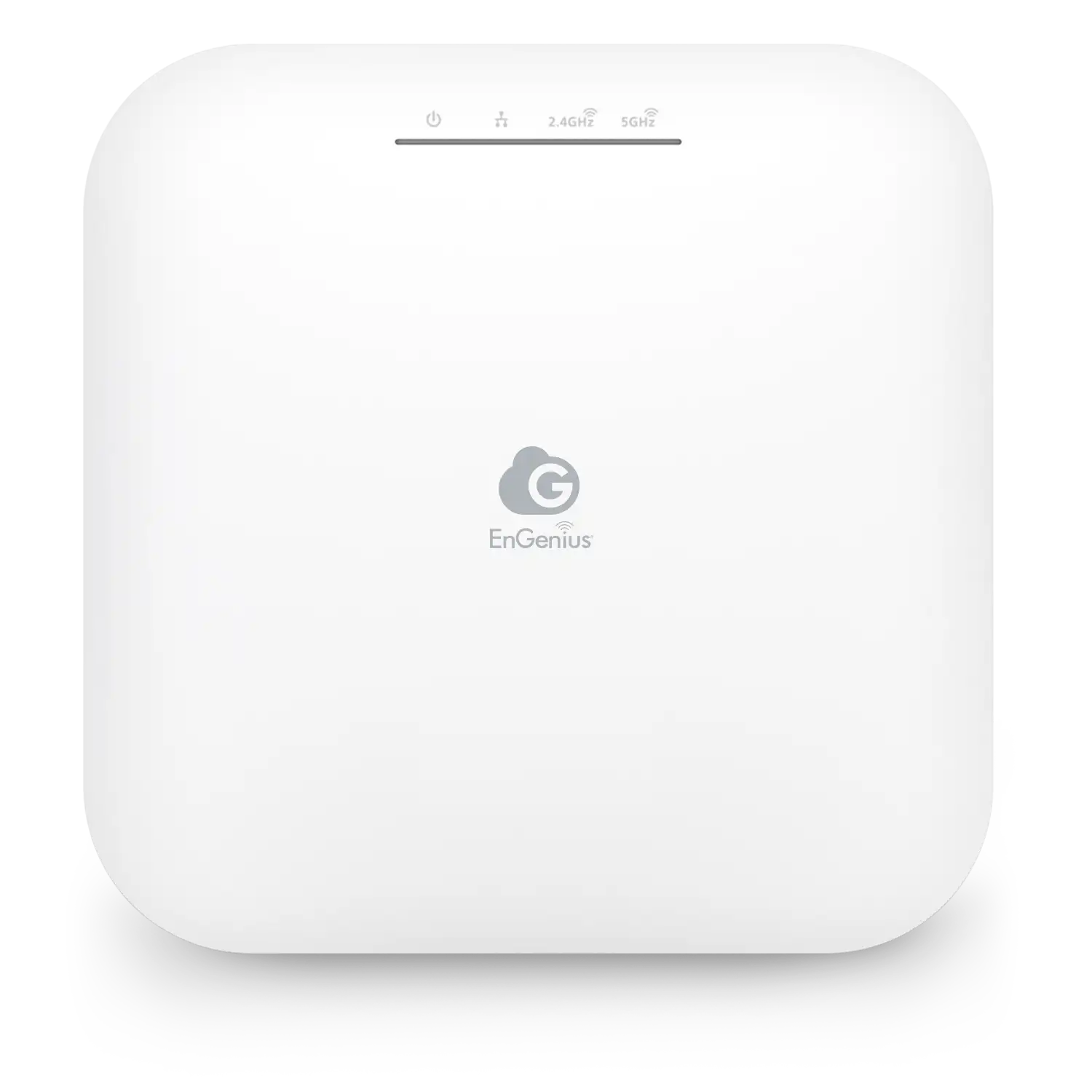

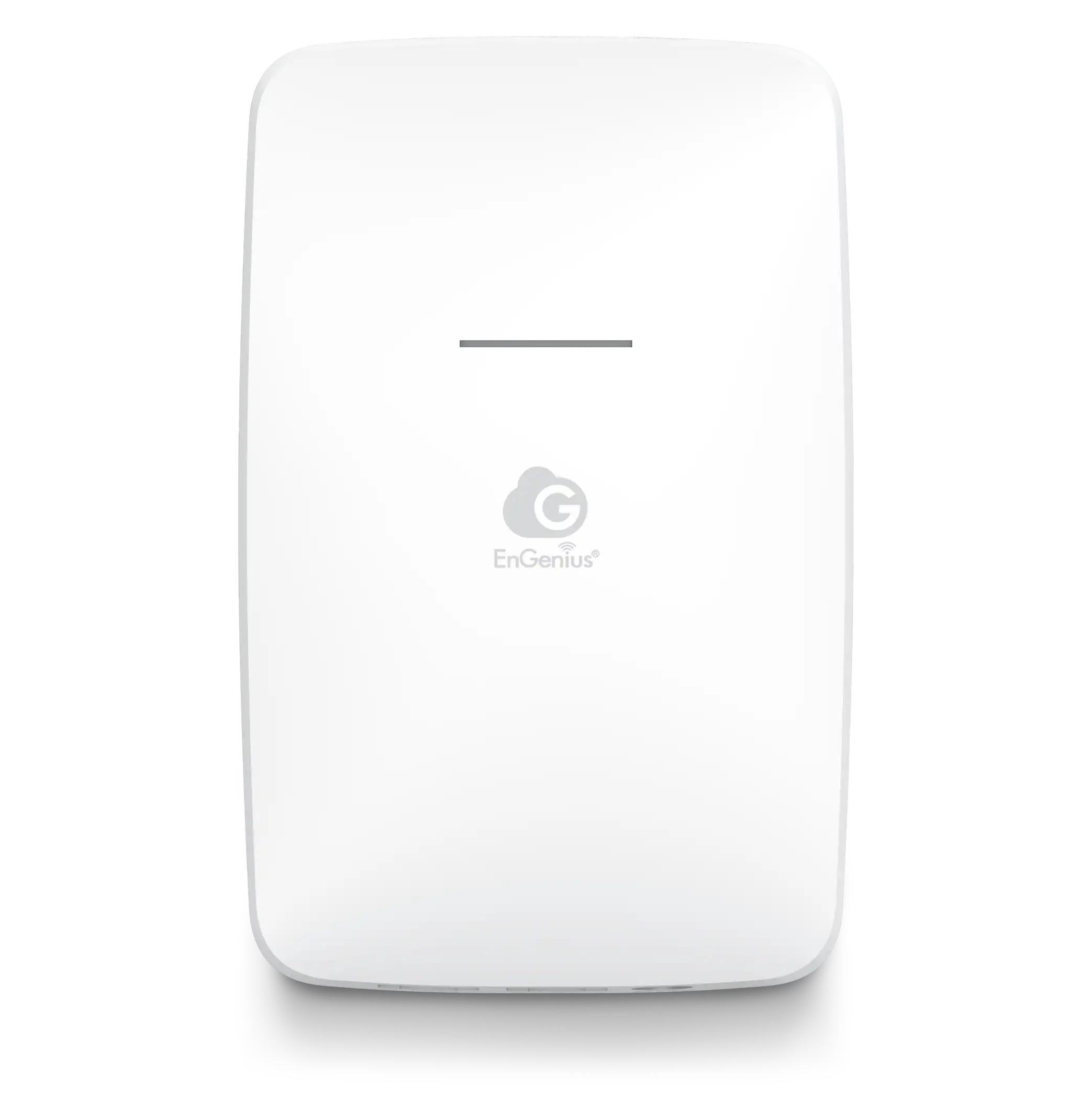

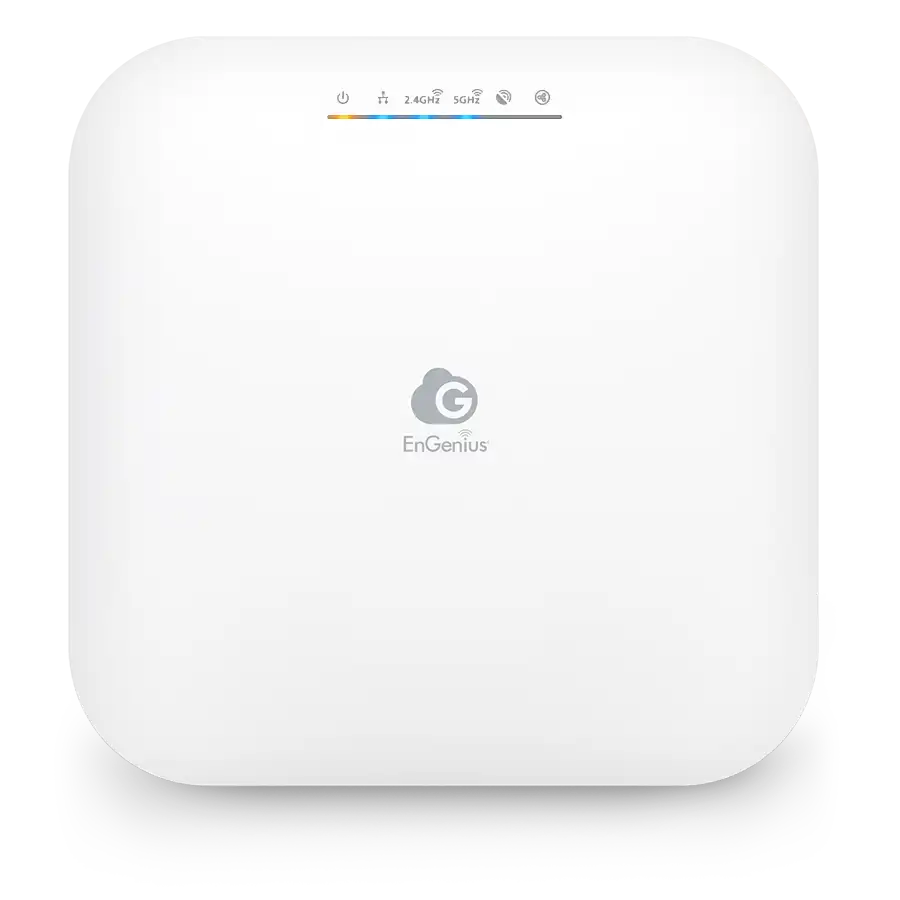

Models ECW230S Security ECW230 ECW220S Security ECW220 ECW215 In-Room
Wi-Fi Standard	Wi-Fi 6	Wi-Fi 6	Wi-Fi 6	Wi-Fi 6	Wi-Fi 6
Antenna	4x4	4x4	2x2	2x2	2x2
6GHz Wireless	N/A	N/A	N/A	N/A	N/A
5GHz Wireless	2.4 Gbps	2.4 Gbps	1.2 Gbps	1.2 Gbps	1.2 Gbps
2.4GHz Wireless	1.1 Gbps	1.1 Gbps	574 Mbps	574 Mbps	400 Mbps
Port Speed	1 x 2.5 Gbps	1 x 2.5 Gbps	1 x 1 Gbps	1 x 1 Gbps	2 x 1 Gbps
AirGuard™ Threat Detection	Yes	N/A	Yes	N/A	N/A
BLE Presence Services	Yes	N/A	Yes	N/A	N/A
Power over Ethernet	802.3at	802.3at	802.3af	802.3af	802.3at
Connected Users	1,000+	1,000+	1,000	1,000	500+
Coverage (sq ft)	1,500 Indoor	1,500 Indoor	1,000 Indoor	1,000 Indoor	1,000 Indoor

Essential

Affordable cloud-managed networking for small businesses and budget-conscious deployments.

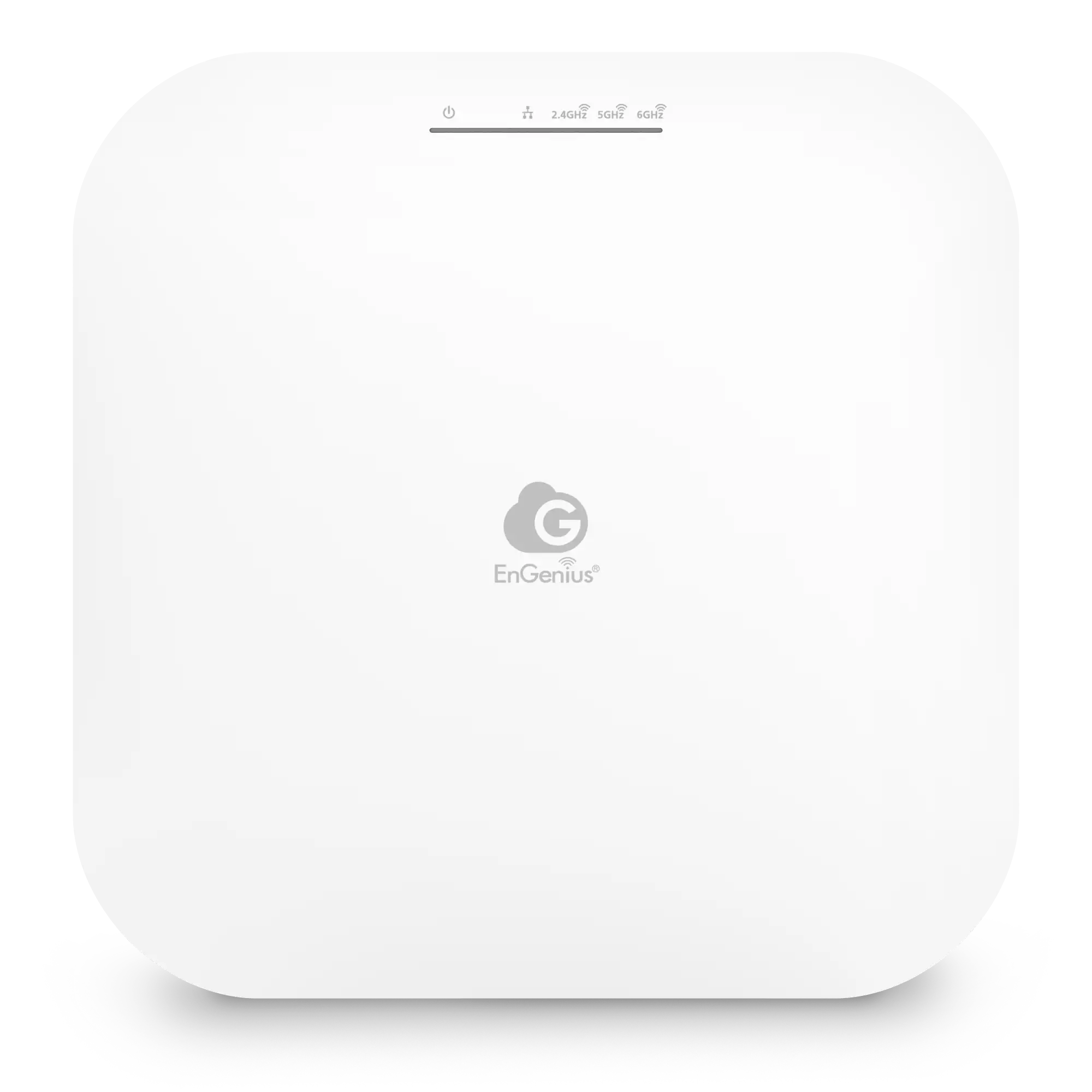

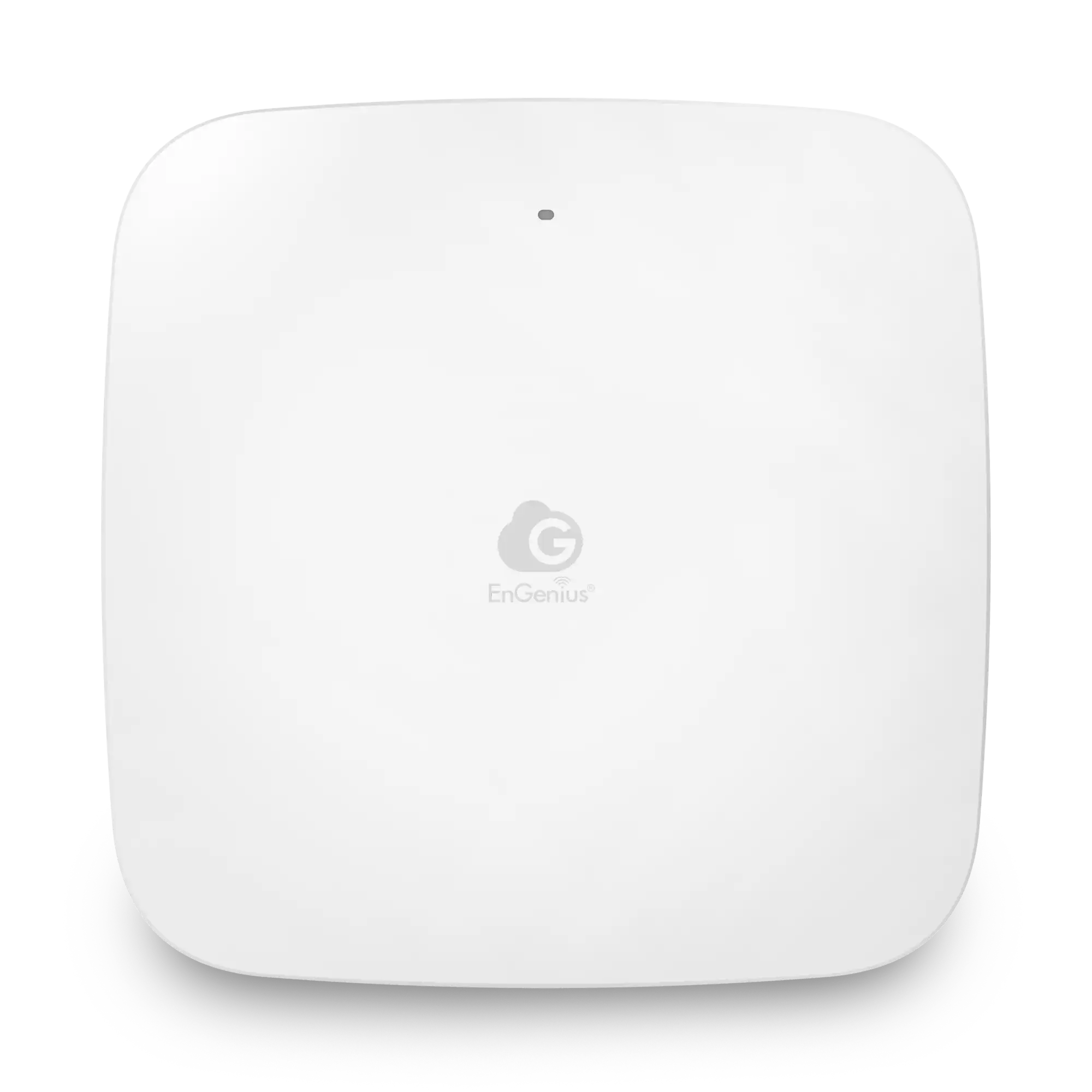

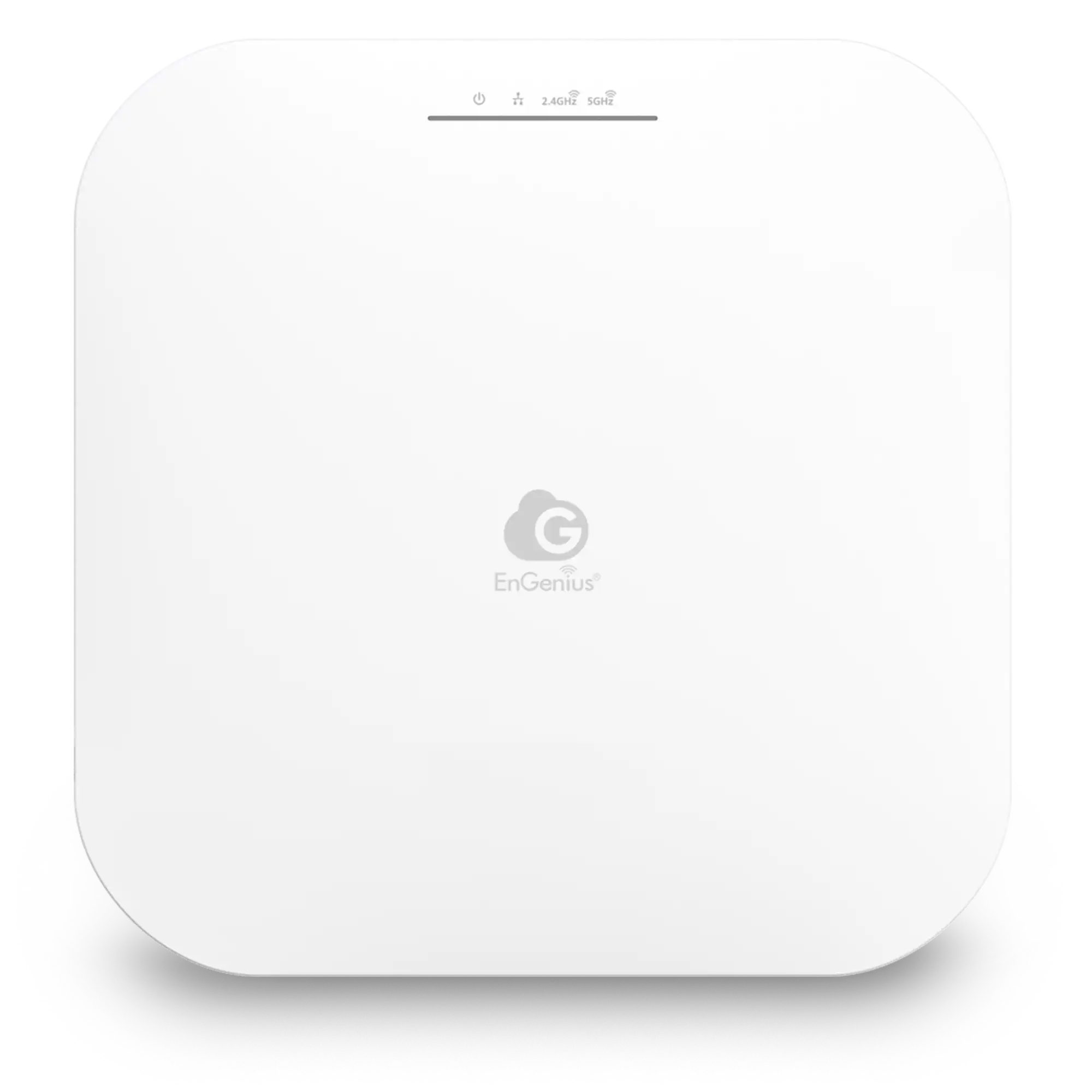

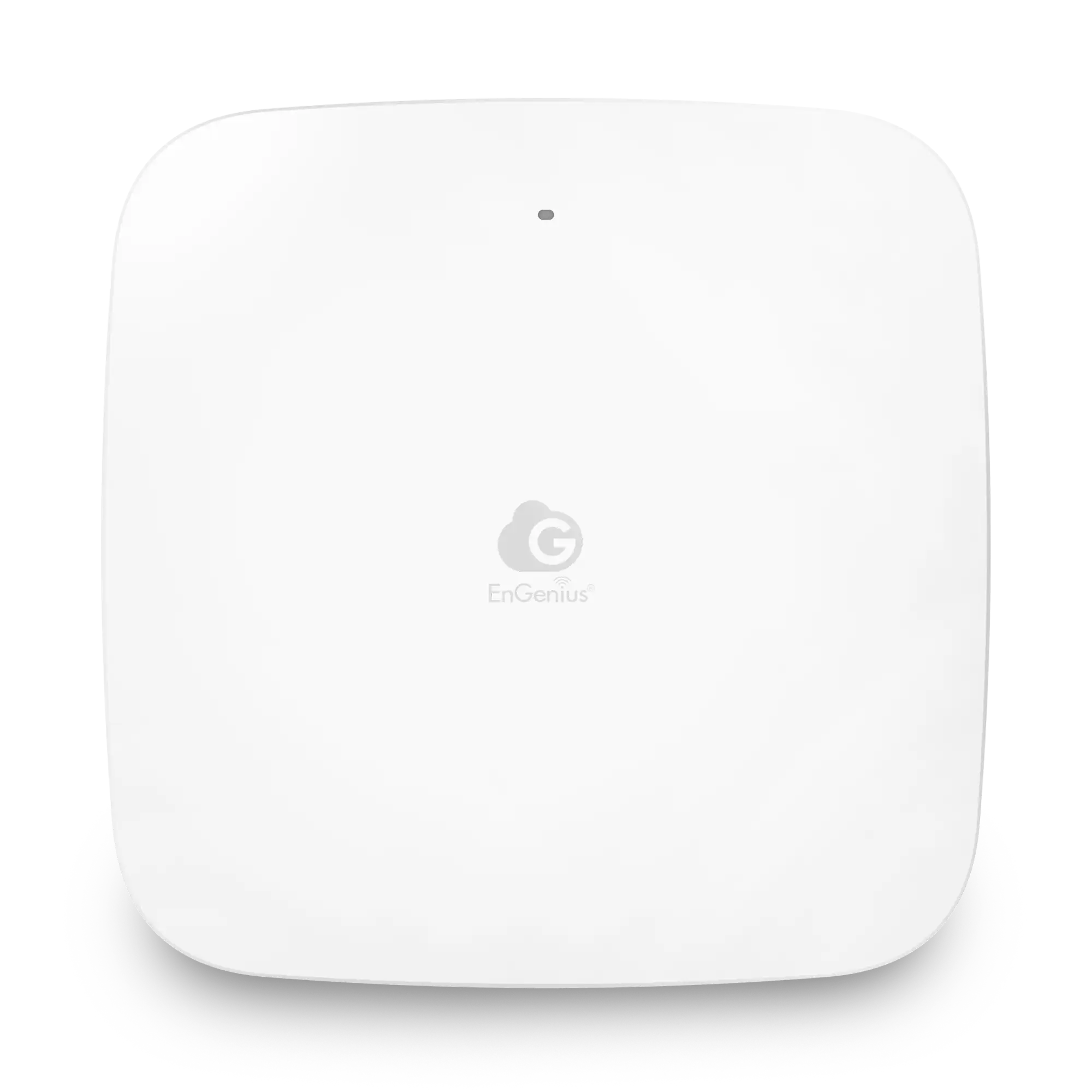

Models ECW516L Lite ECW510L Lite ECW212L Lite ECW210L Lite
Wi-Fi Standard	Wi-Fi 7	Wi-Fi 7	Wi-Fi 6	Wi-Fi 6
Antenna	2x3x3	2x2	4x4	2x2
6GHz Wireless	8.7 Gbps	N/A	N/A	N/A
5GHz Wireless	4.3 Gbps	4.3 Gbps	2.4 Gbps	2.4 Gbps
2.4GHz Wireless	720 Mbps	700 Mbps	1,148 Mbps	574 Mbps
Port Speed	1 x 2.5 Gbps	1 x 2.5 Gbps	1 x 1 Gbps	1 x 1 Gbps
AirGuard™ Threat Detection	N/A	N/A	N/A	N/A
BLE Presence Services	N/A	N/A	N/A	N/A
Power over Ethernet	802.3at	802.3at	802.3af	802.3af
Connected Users	200	400	100	100
Coverage (sq ft)	1,000 Indoor	1,000 Indoor	1,200 Indoor	1,000 Indoor

Outdoor

Reliable outdoor wireless performance with cloud-managed simplicity and weatherproof durability.

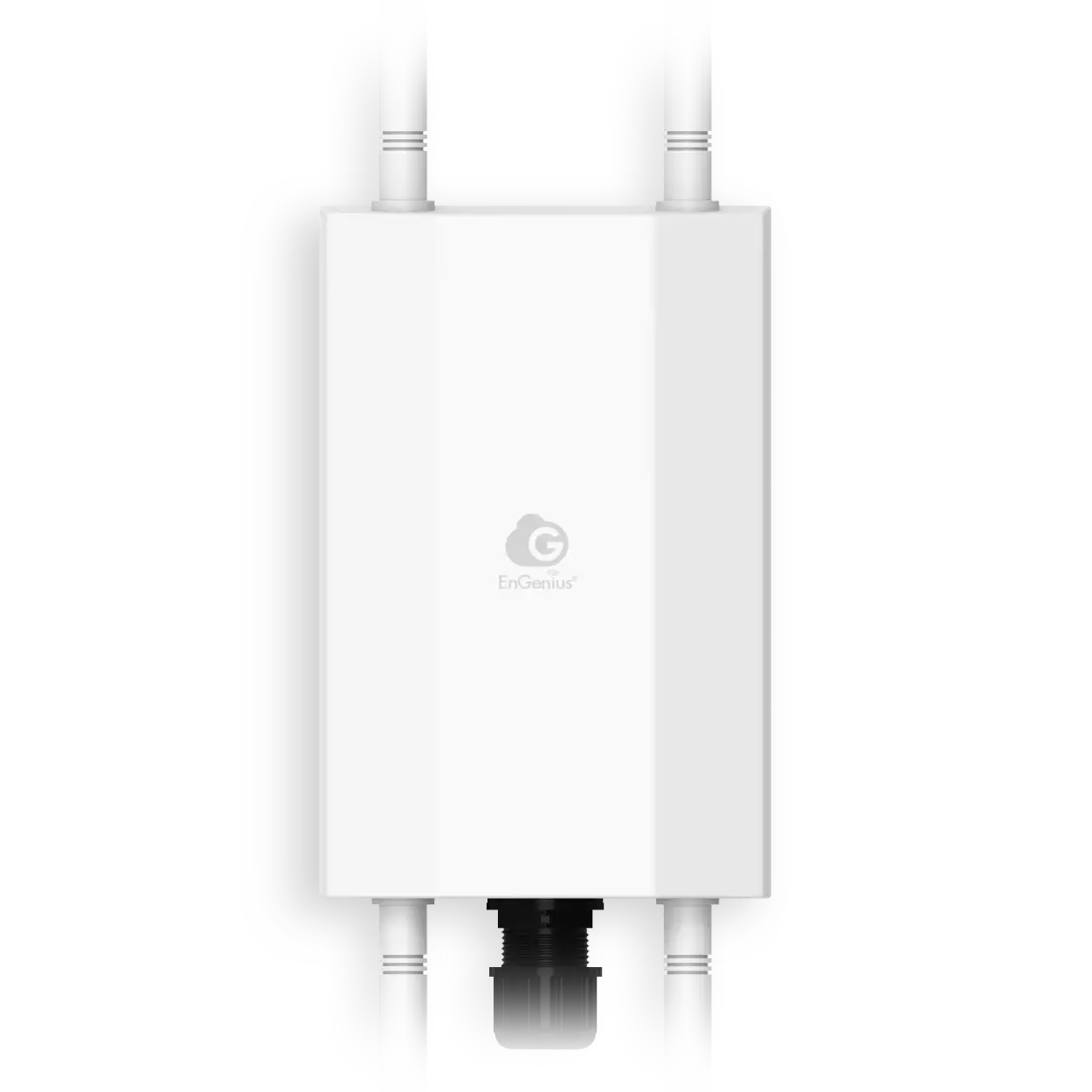

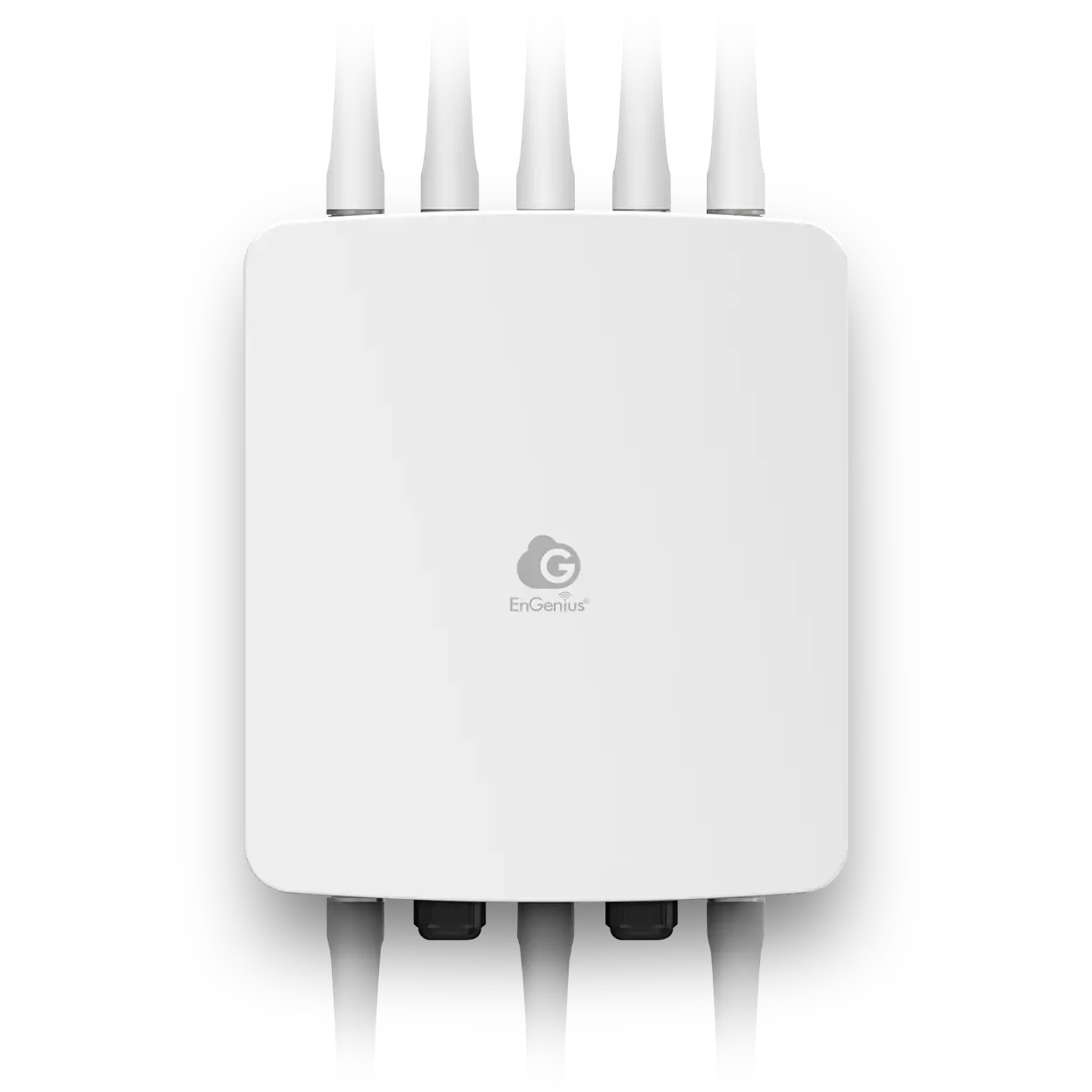

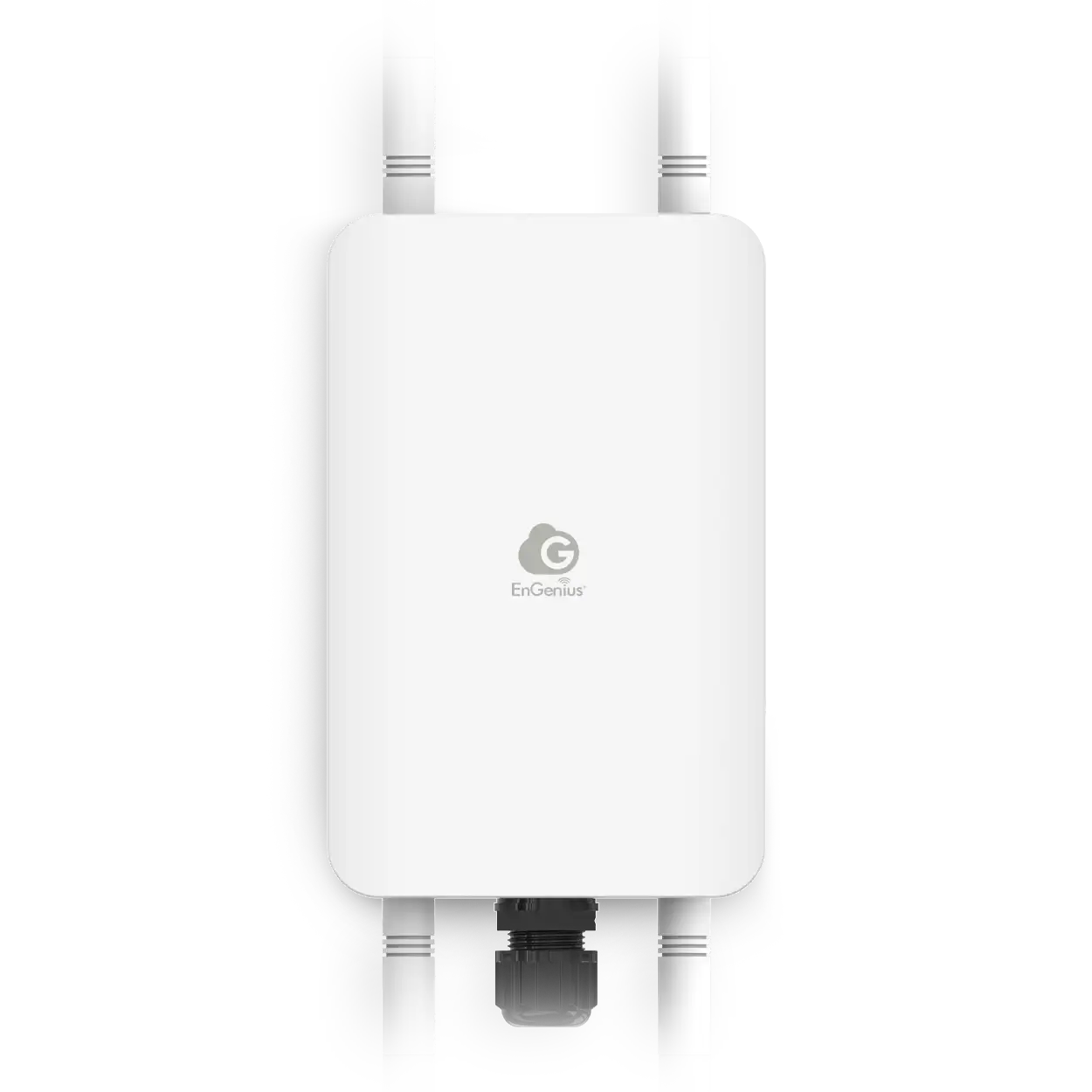

Models ECW270 Outdoor ECW260 Outdoor ECW160 Outdoor
Wi-Fi Standard	Wi-Fi 6	Wi-Fi 6	Wi-Fi 5
Antenna	4x4x4	2x2x2	2x2x2
6GHz Wireless	N/A	N/A	N/A
5GHz Wireless	2,400 Mbps	1,200 Mbps	867 Mbps
2.4GHz Wireless	1,200 Mbps	574 Mbps	1400 Mbps
Port Speed	1 x 1 Gbps 1 x 2.5 Gbps	1 x 2.5 Gbps	1 x 1 Gbps
AirGuard™ Threat Detection	N/A	N/A	N/A
BLE Presence Services	N/A	N/A	N/A
Power over Ethernet	802.3at/bt	802.3af/at	802.3af/at
IP-Rating	IP68-Rated	IP67-Rated	IP67-Rated
Connected Users	1,000	1,000	250
Coverage (sq ft)	2,000 Sq Ft	1,500 Sq Ft	1,500 Sq Ft
