Wi‑Fi 7 Security
Access Point

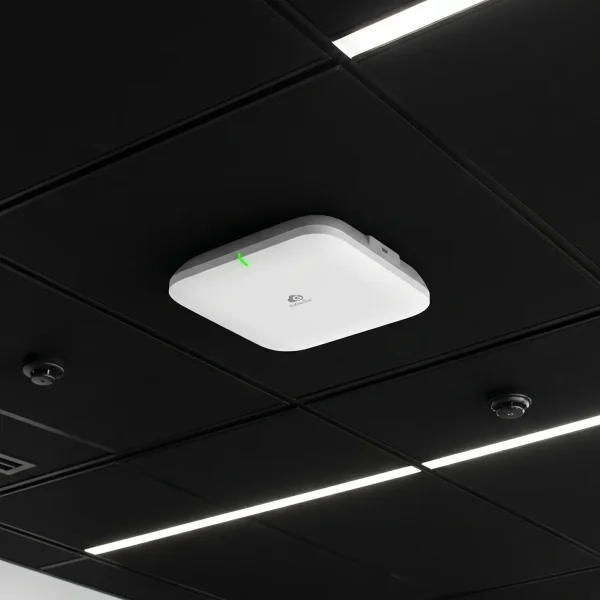

The EnGenius ECW536S Wi‑Fi 7 indoor security access point delivers advanced 4x4:4 tri-band wireless performance, cloud-managed security features, and dual 10GbE ports with PoE++ support for high-density enterprise deployments.
Powering Secure Enterprise Networks
The ECW536S combines Wi-Fi 7 performance, advanced wireless security, and seamless cloud management for enterprise networks, financial institutions, government facilities, and professional offices.
AirGuard Protection
Automatically detect and help mitigate unauthorized wireless devices and potential network threats.
Zero-Wait DFS
Maintain network availability by continuously monitoring DFS channels and proactively avoiding client disruptions.
Cloud-Managed Simplicity
Streamline deployment, monitoring, and management across distributed networks from a single interface.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)
Processor
Qualcomm® Networking Pro 1220
Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
4 x 6 GHz: 5 dBi
Physical Interface
2 x 10/100/1000/2500/5000/10000 BASE-T, RJ-45 Ethernet Port
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-Color LED
Power Source
Power-over-Ethernet: 802.3bt Input
12VDC /3A Power Adapter (Not Included)
EPA5060XBT PoE++ Injector (Not Included)
Maximum Power Consumption
38W
Wireless & Radio
Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz
Operation Modes
AP, Mesh, Mesh AP
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz
Transmit Power
Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.
Radio Chains/Spatial Stream
4x4x4:4
SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 1,376 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4×4 wireless device under the 5GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 11,529 Mbps wireless data rate with EHT320 bandwidth to a 4×4 wireless device under the 6GHz radio.
MU-MIMO
Four (4) spatial stream Multi-User (MU)-MIMO for up to 1,376Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4×4 wireless device under the 5GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 11,529 Mbps wireless data rate with EHT320 bandwidth to a 4×4 wireless device under the 6GHz radio simultaneously.
Supported Data Rates (Mbps)
802.11be:
6 GHZ: Max 11,600 (MCS0 to MSC13, NSS = 1 to 4)
5 GHz: Max 5,800 (MCS0 to MSC11, NSS = 1 to 4)
2.4 GHz: Max 1,440 (MCS0 to MCS11, NSS = 1 to 4)
802.11ax:
6 GHZ: 18 to 4,800 (MCS0 to MSC13, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 (6 GHz only) MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Max Concurrent User
512 Per Radio
Management
Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
IEEE 802.11e compliant
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation
Environment & Physical
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Protection Level
Surge Protection
L-L: 2KV, L-G: 4KV
ESD
Contact 4KV; Air: 8KV
Network Ethernet Ports
1 x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data Input; RJ-45
1 x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data & Power Output; RJ-45
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Device Dimensions & Weights
ECW536S Device
Weight: 2.79 lbs. (1270g)
Length: 9.06″ (230 mm)
Width: 9.06″ (230 mm)
Height: 1.56″ (39.5 mm)
ECW536S Packaging
Weight: 3.63 lbs. (1646 g)
Length: 11.26″ (286 mm)
Width: 10.91” (277 mm)
Height: 2.83″ (72 mm)
Package Contents
1 x ECW536S Cloud Managed Indoor Access Point
1 x Mount Base
1 x Ceiling and Wall Mount Screw Kits
1 x Quick Installation Guide
Certifications
FCC
CE
IC
Warranty
5 Year
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
