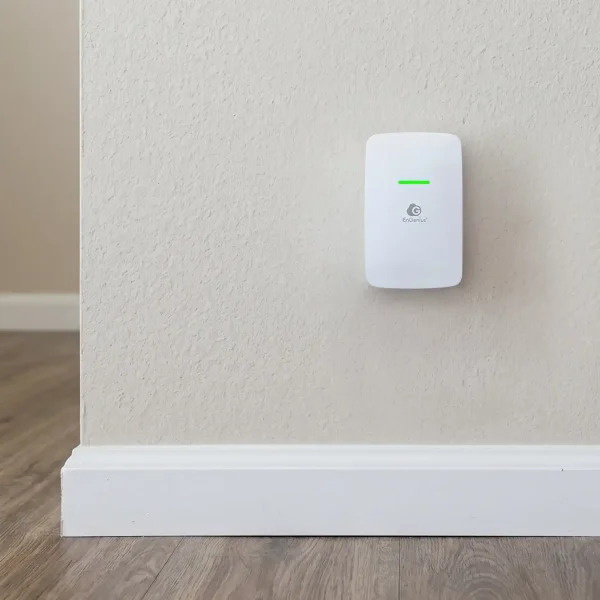

Wi-Fi 6 Wall Plate
Access Point

Standards

• IEEE 802.11ax on 2.4 GHz
  IEEE 802.11ax on 5 GHz
  Backward compatible with 802.11b/g/n/ac
  IEEE 802.3 u/ab

Processor

• Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.0GHz

Antenna

• 2 x 2.4 GHz: 4 dBi (Integrated Omni-Directional)
  2 x 5 GHz: 5 dBi(Integrated Omni-Directional)

Scanning Radio

• N/A

BLE

• N/A

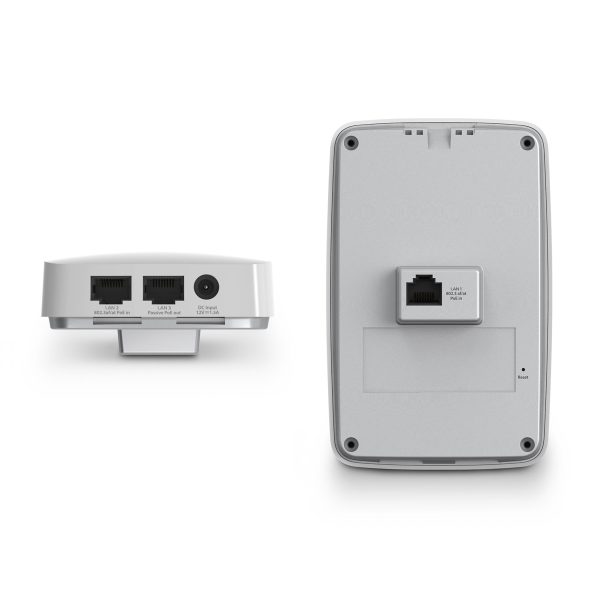

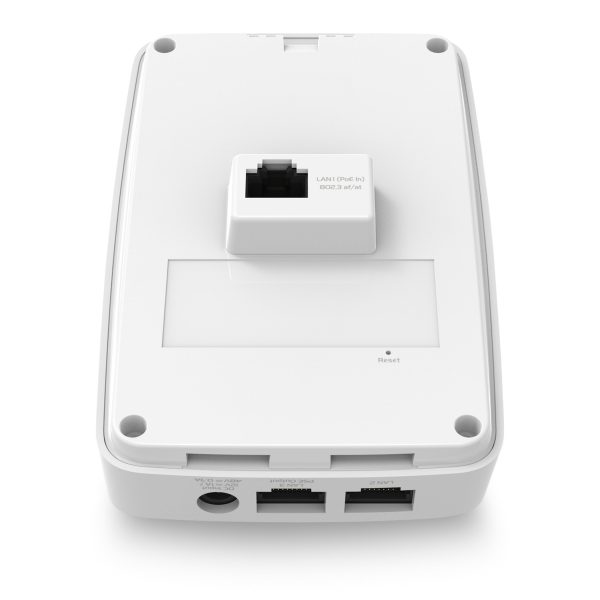

Physical Interface

• 2 x GE Port (PoE+)
  1 x GE Port (PSE Out ; requires 802.3at power source)
  1 x DC Jack
  1 x Reset Button

LED Indicators

• 1 x Multi- color LED for following behavior
  – Power up
  – Cloud connecting
  – Disconnected

Power Source

• Power-over-Ethernet: 802.3af/at Input
  – PoE Output w/ 802.3at Input
  IEEE 802.11e Compliant Source
  DC Jack: 12V/1.5A 48V

Maximum Power Consumption

• 14.2W

Operating Frequency

• Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

• AP, AP Mesh, Mesh

Frequency Radio

• 2.4 GHz: 2400 MHz ~ 2482 MHz
  5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

• Up to 20 dBm on 2.4 GHz
  Up to 20 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream

• 2×2:2

SU-MIMO

• Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio.
  Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO

• Two (2) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
  Two (2) spatial streams multi-user (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps)

• 802.11ax:
  2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
  5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
  802.11b: 1, 2, 5.5, 11
  802.11a/g: 6, 9, 12, 18, 36, 48, 54
  802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
  802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

• 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
  802.11b: Direct-sequence spread-spectrum (DSSS)
  802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization

• 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
  802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
  802.11n supports high throughput (HT) —HT 20/40 MHz
  802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
  802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

• 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
  802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  802.11b: BPSK, QPSK, CCK
