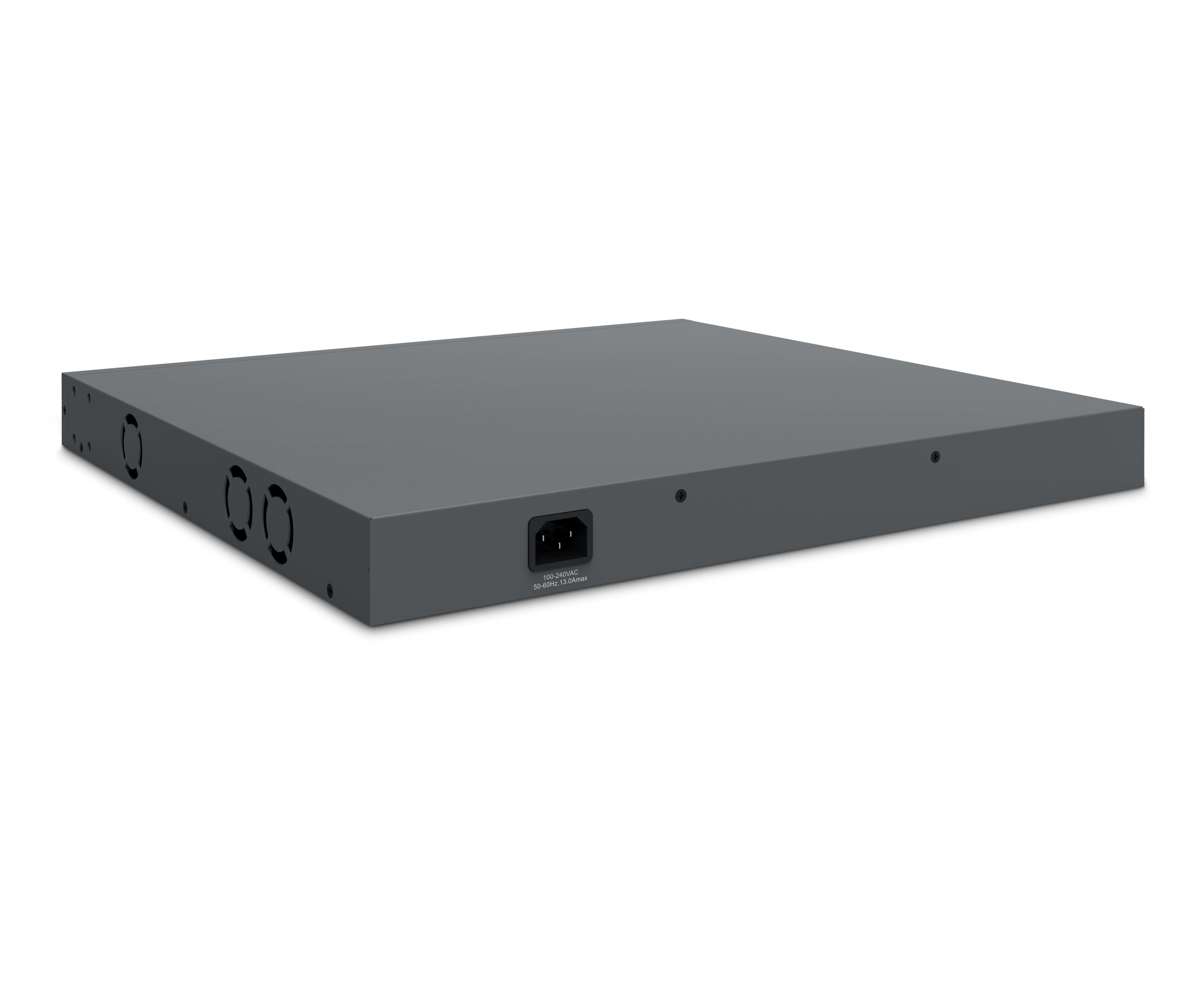

Cloud Managed 48-Port Gigabit 740W PoE+ Enterprise Switch

ECS1552FP  |  More Details >

Layer 2+ Switch with 4 SFP+ Uplink Ports and Multiple Management Options for SMBs

Getting Started with EnGenius Cloud   |   Try the Cloud Demo >





Buy Now


Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
48 10/100/1000 Mbps Ports + 4x SFP+ Ports

Switching Capacity
176Gbps

SDRAM
512MB

Flash Memory
128MB

PoE+ Capable Ports
1-48

Total PoE Budget
740W

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)



Software Features (L3 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries



Software Features (L2 Features)

Network Management
EnGenius Cloud
Local Web GUI

MAC Address Table
32K

Jumbo Frame
10K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries

Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding



Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control



Environmental & Physical

Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit



Device Dimensions & Weights

ECS1552FP Device
Weight: 10.5 lbs. (4.76 kg)
Width: 17.32” (440 mm)
Length: 10.23” (260 mm)
Height: 1.73” (44 mm)

Packaging
Weight: 13 lbs. (5.9 kg)
Width: 21” (534 mm)
Length: 17” (432 mm)
Height: 4.13” (83 mm)

Warranty
5 years

Certifications
CE
FCC
IC



Type Name Version Release Date Download Checksum
Firmware ECS15XX-25XX_firmware_v1.2.96-172.imag v1.2.96-172 December 11, 2024
Firmware ECS15XX-25XX_firmware v1.2.70-138.imag v1.2.70 November 26, 2024 -
Webpage Compare Switch Models - November 27, 2024 -
Webpage Learn More About EnGenius Cloud - November 25, 2024 -
Webpage Learn More About Gigabit Switches - November 26, 2024 -
Quick Guide ECS1552FP Quick Start Guide - November 03, 2024 -
Data Sheet ECS1552FP Datasheet v1.0 November 03, 2024 -
User Manual Cloud Switch Command Line Interface User Manual v1.0 November 04, 2024 -
User Manual EnGenius Cloud Switch User Manual v1.0 November 04, 2024 -
Data Sheet Cloud Managed Switch Datasheet v1.0 November 04, 2024 -
User Manual Cloud User Manual v1.0 November 27, 2024 -
User Manual Getting Started with Two Factor Authentication v1.0 November 27, 2024 -
User Manual Getting Started with EnGenius Cloud v1.0 November 27, 2024 -
Data Sheet EnGenius Cloud Management Datasheet v1.6 November 27, 2024 -

Product Highlights
EnGenius Cloud ECS1552FP, a 48-Port Gigabit PoE+ Layer 2+ Enterprise Switch with a 740W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

 5-Year Warranty
  • 48 10/100/1000 Base-T GbE Ports
  • Full-Featured Layer 2+ Switching
  • 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
  • 176 Gbps Switching capacity
  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
Available with Hardware v2 and Later
  • PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
  • PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
  • Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
