Wi-Fi 7 Wall Plate
Access Point

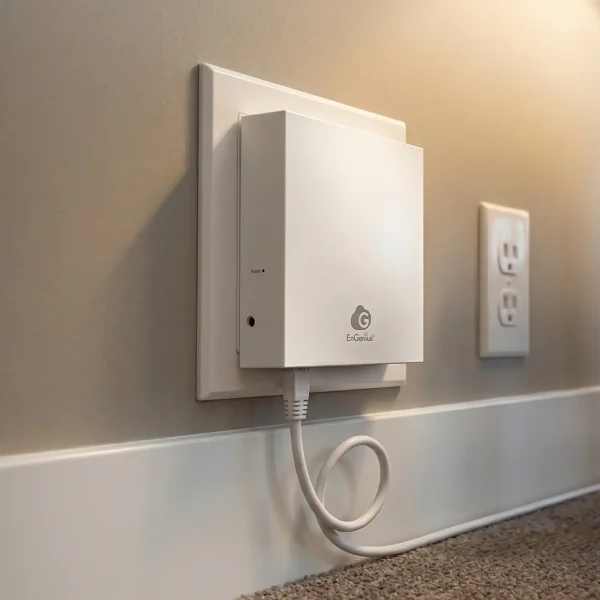

The EnGenius ECW515 Wi-Fi 7 wall-plate access point delivers advanced 2x2:2 wireless performance, a built-in 4-port gigabit switch with PoE out, and a 2.5G PoE-in uplink for simplified installation.
Engineered for In-Room Performance
The ECW515 combines Wi-Fi 7 performance, integrated switching, and seamless cloud management in a sleek, space-saving form factor ideal for hotels, resorts, student housing, and multifamily properties.
Smart Casting
Allow guests to stream content directly from personal devices to guestroom TVs with minimal setup.
Integrated Network Switching
Integrated 4-port Gigabit switching with VLAN support simplifies connectivity and traffic segmentation for IPTV, VoIP, smart TVs, and connected devices.
Secure Resident Access
MyPSK enables personalized network access with unique credentials for each resident, helping improve security and privacy.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11be (2.4 GHz)
IEEE 802.11be (5 GHz)
(Backward compatible with 802.11b/g/n/ac/ax)
Processor
Qualcomm® Networking Pro 1220
Antenna
2 x 2.4 GHz: 5 dBi
2 x 5 GHz: 5 dBi
Physical Interface
1 x 10/100/1000/2500 BASE-T, PoE in, RJ-45 Ethernet Port
4 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-Color LED
– Power up
– Cloud connecting
– Disconnected
Power Source
Power-over-Ethernet: 802.3at Input
54VDC /1A Power Adapter (Not Included)
EPA5006GAT PoE+ Injector (Not Included)
Maximum Power Consumption
DC in 26W, PoE in 18W
Wireless & Radio
Operating Frequency
Dual Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP
Mesh
Mesh AP
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 21 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance
Radio Chains/Spatial Stream
2×2:2
SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 2,900 Mbps wireless data rate with EHT160 bandwidth to a 2×2 wireless device under the 5GHz radio.
MU-MIMO
Two (2) spatial stream Multi-User (MU)-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio simultaneously.
Two (2) spatial stream Multi-User (MU)-MIMO for up to 2,900 Mbps wireless data rate with EHT160 bandwidth to a 2×2 wireless device under the 5GHz radio simultaneously.
Supported Data Rates (Mbps):
802.11be:
– 5 GHz: Max 2,900 (MCS0 to MSC11, NSS = 1 to 2)
– 2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 2)
802.11ax:
– 5 GHz: 18 to 1,200 (MCS0 to MSC11, NSS = 1 to 2)
– 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160 MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Max Concurrent Users
Up to 100
Management
Multiple BSSID
8 SSIDs for 2.4GHz & 5GHz
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
IEEE 802.11e compliant
WMM
SNMP
v1, v2c, v3
MIB
I/II
Private MIB
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation
Environment & Physical
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Protection Level
Surge Protection
L-L: 2KV, L-G: 4KV
ESD
Contact 4KV; Air: 8KV
Network Ethernet Ports
1 x 10/100/1000/2500Mb, 2.5Gb Data & PoE Input; RJ-45
4 x 10/100/1000Mb, 1Gb Data & Power Output; RJ-45
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Device Dimensions & Weights
ECW515 Device
Weight: .72 lbs. (.328 Kg)
Length: 5.1” (130 mm)
Width: 4.3” (110 mm)
Height: 1.6” (42 mm)
ECW515 Packaging
Weight: 1.02 lbs. (.465 Kg)
Length: 6.92” (176mm)
Width: 6.57” (167 mm)
Height: 2.59” (66 mm)
Package Contents
1 x ECW515 Cloud Managed Indoor Access Point
1 x Ceiling and Wall Mount Screw Kits
1 x Quick Installation Guide
1 x Junction-plates (tall/short)
Certifications
FCC
CE
IC
Warranty
5 Year
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
