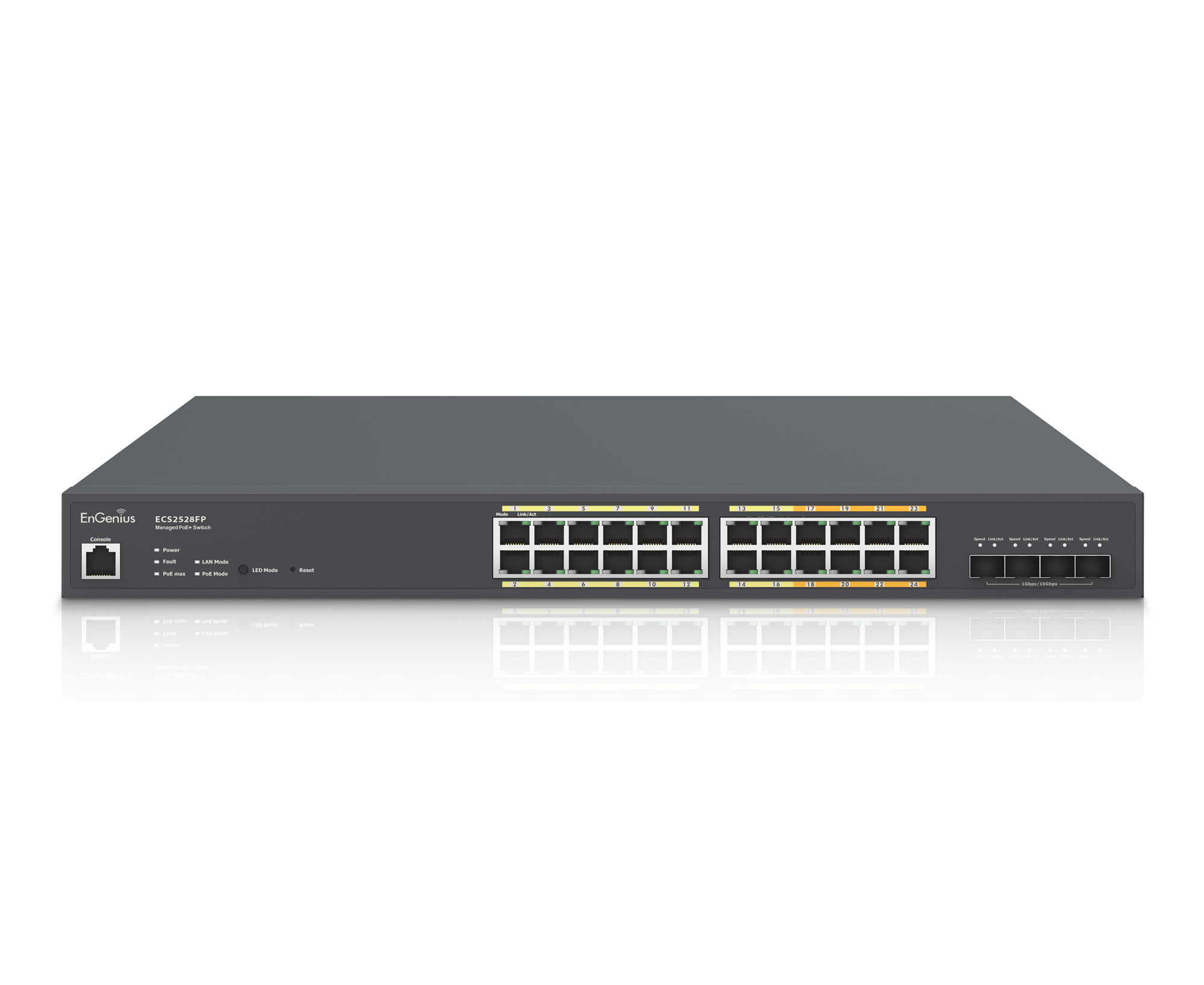

Cloud Managed 24-Port Multi-Gigabit PoE+ Switch with 4 SFP+ Ports

ECS2528FP

Getting Started with EnGenius Cloud  |  More Details

410 Watt with simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points


Try the Cloud Demo >


Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
16 10/100/1000 Mbps Ports
8 100/1000/2500 Mbps Ports
4 SFP+ Ports

Switching Capacity
152Gbps

SDRAM
512MB

Flash Memory
128MB

PoE+ Capable Ports
1-24 (802.3af/at)

Total PoE Budget
410W

Power Source
100 ~ 240VAC, 50-60Hz


Physical Interface


LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)


Software Features (L3 Features)


Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries


Software Features (L2 Features)


Network Management
EnGenius Cloud
ezMaster/SkyKey
Local Web GUI

MAC Address Table
16K

Jumbo Frame
10K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries



Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL

Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate
Certificate/Key Import

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree


Environmental & Physical


Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit


Dimensions & Weights


Device:
Weight: 8.99 Ibs. (4.08 kg)
Width: 10.24” (260 mm)
Length: 17.32” (440 mm)
Height: 1.73” (44 mm)

Packaging
Weight: 10.58 lbs. (4.8 kg)
Width: 13.74” (349 mm)
Length: 21.06” (535 mm)
Height: 4.09” (104 mm)

Warranty
2 years

Certifications
CE
FCC
IC


Product Highlights
The EnGenius ECS2528FP cloud-managed 410 Watt 24-port PoE+ multi-gigabit switch with simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2528FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.
  • 24 10/100/1000/2500 Base-T GbE Ports
  • 16 Gigabit and 8 2.5-Gigabit PoE Ethernet Ports
  • Full-Featured Layer 2+ Ethernet Switch
  • 802.3 at/af PoE+ Ready on All Ports with 410W PoE budget
  • 152 Gbps Switching capacity
  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
  • Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting
  • PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
  • PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
  • Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades
  • Advanced View Displays Network Topology with Devices and Relationships
  • Hybrid Switch Supports Multiple Management Options
