Wi-Fi 7 Tri-Band
Access Point

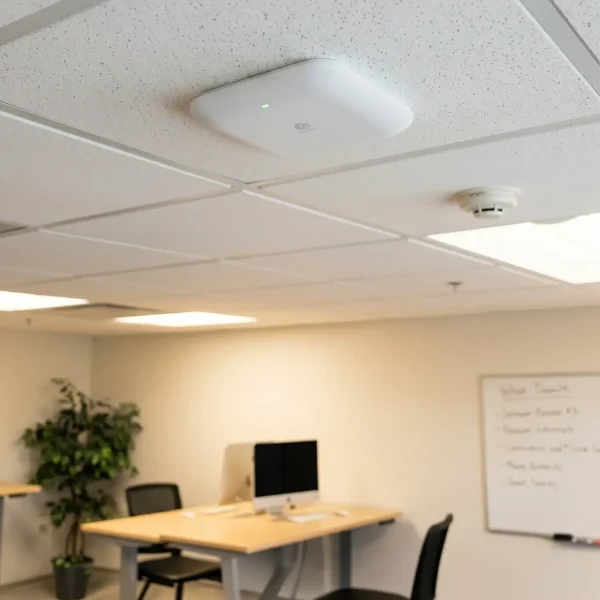

The EnGenius ECW520 Wi‑Fi 7 access point delivers advanced 2x2x2 tri-band wireless performance, a compact design, and 2.5GbE PoE connectivity for cost-effective enterprise Wi‑Fi deployments.
Enterprise Performance, Accessible Pricing
The ECW520 combines tri-band Wi-Fi 7 performance, 2.5 Gigabit connectivity, and cloud-managed simplicity, making it ideal for hospitality, education, retail, multi-site businesses, and growing enterprise environments.
Affordable Wi-Fi 7 Deployment
Adopt next-generation wireless technology while maintaining budget flexibility for large-scale deployments and multi-site networks.
Tri-Band Performance
Leverage the 6 GHz band to reduce congestion, increase capacity, and deliver faster, more reliable wireless connectivity.
Cloud-Managed Simplicity
Deploy, monitor, and manage networks across multiple sites through the EnGenius Cloud platform.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)
Processor
Qualcomm® Networking Pro 1220
Antenna
2 x 2.4 GHz: 6 dBi (Integrated Omni-Directional)
2 x 5 GHz: 6 dBi (Integrated Omni-Directional)
2 x 6 GHz: 6 dBi (Integrated Omni-Directional)
Physical Interface
1 x 2.5 GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-Color LED
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)
EPA5060XBT PoE++ Injector (Not Included)
Maximum Power Consumption
25.4W
Wireless & Radio
Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz
Operation Modes
Managed Mode: AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz, 5850MHz ~ 5895MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz
Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
Up to 20 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance
Radio Chains/Spatial Stream
2x2x2:2
SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with EHT240 bandwidth to a 2×2 wireless device under the 5GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 5,800 Mbps wireless data rate with EHT320 bandwidth to a 2×2 wireless device under the 6GHz radio.
MU-MIMO
Two (2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two (2) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with EHT240 bandwidth to a 2×2 wireless device under the 5GHz radio.
Two (2) spatial stream MU-MIMO for up to 5,800 Mbps wireless data rate with EHT320 bandwidth to a 2×2 wireless device under the 6GHz radio.
Supported Data Rates (Mbps)
802.11be:
2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: Max 4,300 (MCS0 to MCS13, NSS = 1 to 4)
6 GHZ: Max 5,800 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 2,400 (MCS0 to MCS13, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS31)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/240/320 (6 GHz only) MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Max Concurrent Users
Up to 500
Management
Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
Client Isolation
L2 Isolation
Environmental & Physical
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Network Ethernet Ports
1 x 10/100/1000Mb, 2.5Gb Data Input; RJ-45
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Device Dimensions & Weights
ECW520 Device
Weight: 1.32 lbs. (600 g)
Length: 6.22″ (158 mm)
Width: 6.22″ (158mm)
Height: 1.41″ (35.8 mm)
ECW520 Packaging
Weight: 1.9 lbs. (860g)
Length: 8.15″ (207 mm)
Width: 8.15″ (207 mm)
Height: 3.43″ (87 mm)
Package Contents
1 x ECW520 Cloud Managed Indoor Access Point
1 x Ceiling Mount Base (9/16” T-Rail)
1 x Ceiling Mount Base (15/16” T-Rail)
1 x Ceiling and Wall Mount Screw Kits
1 x Product Card
Certifications
FCC
CE
IC
UKCA
Warranty
5-Year Limited Hardware Warranty
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
