Wi-Fi 6 Outdoor
Access Point
The EnGenius ECW260 Wi-Fi 6 access point delivers reliable outdoor wireless connectivity, detachable antennas for flexible coverage design, cloud-managed networking, and IP67-rated protection for business and commercial deployments.
Built for Outdoor Connectivity
The ECW260 combines Wi-Fi 6 performance, rugged IP67-rated protection, and cloud-managed simplicity, making it ideal for patios, outdoor dining areas, parks, campuses, warehouses, and commercial outdoor environments.
Rugged Outdoor Design
IP67-rated enclosure helps protect against dust, water, and harsh environmental conditions.
Reliable Coverage
Extend wireless connectivity to outdoor spaces while maintaining dependable performance.
Cloud-Managed Simplicity
Deploy, monitor, and manage outdoor networks through the EnGenius Cloud platform.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.

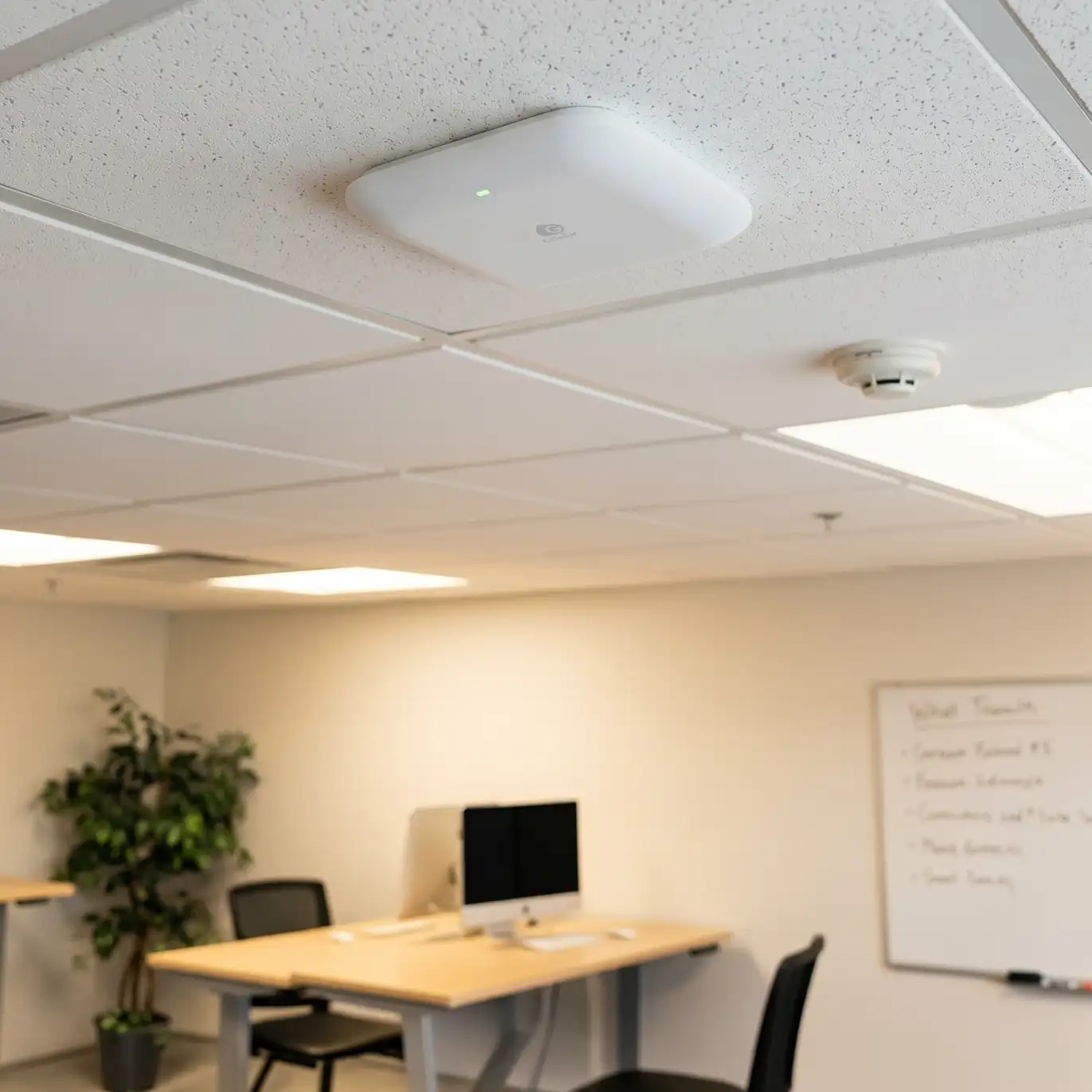

Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11b/g/n/ax on 2.4GHz
IEEE802.11a/n/ac/ax on 5GHz
IEEE 802.3 u/ab
IEEE 802.3az
Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.8GHz
Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type
Scanning Radio
N/A
Physical Interface
1 x 2.5GE Port (PoE+)
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3af/at
IEEE 802.11e Compliant Source
Active Ethernet (PoE)
Maximum Power Consumption
15.9W
Surge Protection
1KV
ESD Protection
Contact: 4KV
Air: 8 KV
Wireless & Radio
Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4GHz: 2400 MHz ~ 2483 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5875MHz
Transmit Power
2.4GHz: 23dBm
5GHz: 25dBm
Maximum power is limited by regulatory domain
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.
Radio Chains/Spatial Stream
2×2:2
SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SUMIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4G Hz and 5GHz radio.
MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)
802.11ax:
– 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
– 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
DFS Certification
CE
AirGuard (WIPS/WIDS)
N/A
Zero-wait DFS
N/A
Dedicated Scanning Radio
N/A
Max Concurrent Users
512 Per radio
Max Concurrent Users
512 Per radio
Client Balancing
Yes
Auto Channel Selection
Yes
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Management
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4, IPv6
Local Web Access
Supports HTTP or HTTPS
Environmental & Physical
Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Waterproof & Dustproof
IP67-Rated Enclosure
Device Dimensions & Weights
ECW260 Device
Weight: 1.54 lbs. (0.7 kg)
Width: 4.07” (124 mm)
Length: 7.48” (190 mm)
Height: 2.07” (52.5 mm)
ECW260 Packaging
Weight: 3.96 lbs. (1.8kg)
Width: 9.21″ (234 mm)
Length: 11.18″ (284 mm)
Height: 5.67″ (144 mm)
Package Contents
1 x ECW260 Cloud Managed Outdoor Access Point
1 x Pole-Mounting Brackets
1 x Wall-Mount Screw Set
2 x 2.4GHz 5dBi SMA Antennas
2 x 5GHz 5dBi SMA Antennas
1 x Product Card
Certifications
FCC
CE
IC
Warranty
2 Year
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
