Wi-Fi 6 Outdoor
Access Point
The EnGenius ECW270 Wi-Fi 6 access point delivers high-capacity 4x4 wireless performance, detachable antennas for customized coverage, cloud-managed networking, and IP68-rated protection for demanding outdoor deployments.
Built for High-Density Outdoor Networks

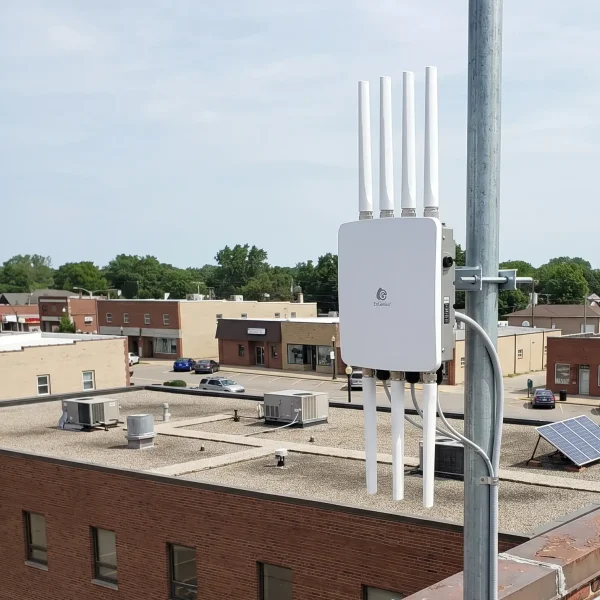

The ECW270 combines enterprise-grade Wi-Fi 6 performance, expanded coverage, and rugged IP68-rated protection, making it ideal for stadiums, campuses, hospitality venues, outdoor event spaces, and large commercial environments.
Enterprise-Grade Outdoor Performance
Support large numbers of users and connected devices in demanding outdoor environments.
Maximum Environmental Protection
IP68-rated enclosure protects against dust, water, and challenging weather conditions.
Expanded Coverage and Capacity
Deliver reliable wireless connectivity across larger outdoor areas while maintaining performance under load.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11b/g/n/ax on 2.4GHz
IEEE802.11a/n/ac/ax on 5GHz
IEEE 802.3 u/ab
Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 2.2GHz

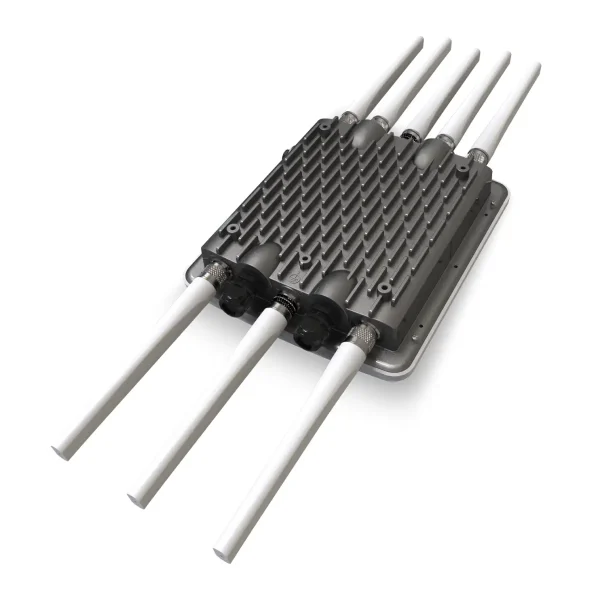

Antenna
4 x 2.4 GHz: 5 dBi(External Omni-Directional)
4 x 5 GHz: 7 dBi(External Omni-Directional)
Scanning Radio
N/A
BLE
N/A
Physical Interface
1 x GE Port (Data & 802.3af PoE Pass-Through)
1 x 2.5GE Port (Supports 802.3bt PoE Input)
LED Indicators
1 x Power
1 x LAN
1 x LAN 2
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3at/bt
Proprietary 48V – 54V
IEEE 802.11e Compliant Source
Active Ethernet (PoE)
Maximum Power Consumption
46W
Surge Protection
1KV
ESD Protection
Contact: 4KV
Air: 8 KV
Wireless & Radio
Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz
Operation Modes
AP, Mesh, AP Mesh
Frequency Radio
2.4GHz: 2400 MHz ~ 2483 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5857MHz
Transmit Power
2.4GHz: 24 dBm
5GHz: 24 dBm
Maximum power is limited by regulatory domain
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.
Radio Chains/Spatial Stream
4×4:4
SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.
MU-MIMO
Four (4) spatial streams multi-user (MU)-MIMO for up to 2,400 Mbps wireless data rate to transmit to one (1) four streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) four streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
DFS Certification
CE
AirGuard (WIPS/WIDS)
N/A
Zero-wait DFS
N/A
Dedicated Scanning Radio
N/A
Max Concurrent Users
512 Per radio
Client Balancing
Yes
Auto Channel Selection
Yes
Management
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4, IPv6
Local Web Access
Supports HTTP or HTTPS
Environmental & Physical
Temperature Range
Operating: -4º~149ºF/-20ºC~65ºC
Storage: -40Fº~176ºF/-30ºC~80ºC
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Waterproof & Dustproof
IP68-Rated Enclosure
Device Dimensions & Weights
ECW270 Device
Weight: 4.12lbs. (1.87kg)
Width: 8.58” (218 mm)
Length: 11.22” (285 mm)
Height” 2.18” (55.5 mm)
ECW270 Packaging
Weight: 3.33 lbs. (1.51kg)
Width: 9.21″ (234 mm)
Length: 11.18″ (284 mm)
Height: 5.67″ (144 mm)
Package Contents
1 x ECW270 Cloud Managed Outdoor Access Point
1 x Pole-Mounting Brackets
1 x Wall-Mount Screw Set
4 x 2.4 GHz 5dBi N-Type Antennas
4 x 5 GHz 7dBi N-Type Antennas
1 x Product Card
Certifications
FCC
CE
IC
Warranty
2 Year
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
