Wi-Fi 7 Tri-Band
Access Point

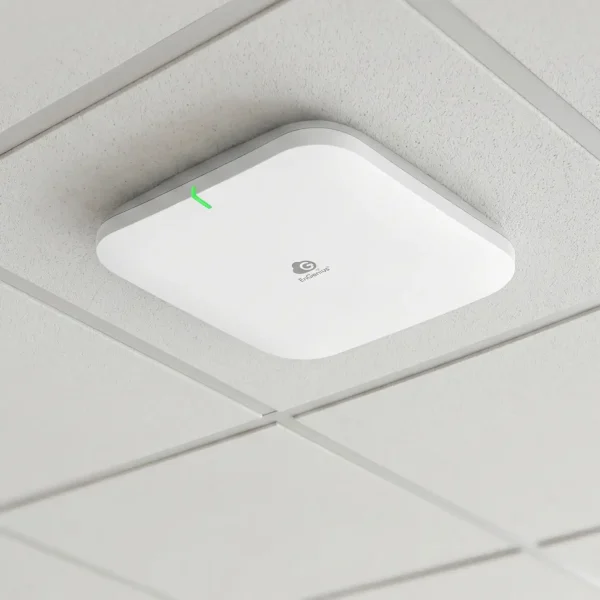

The EnGenius ECW526 Wi‑Fi 7 access point delivers advanced 2x2x2 tri-band wireless performance, 10GbE uplink connectivity, and cloud-managed networking for scalable high-speed business environments.
Designed for Scalable Wireless Networks
The ECW526 combines Wi-Fi 7 speed, 6 GHz capacity, and centralized cloud management to provide reliable connectivity for hospitality, education, offices, retail, and multi-tenant environments.
Compact Design, Powerful Performance
Deliver Wi-Fi 7 performance in a compact form factor that simplifies deployment and reduces power consumption.
Multi-Gigabit Connectivity
Leverage high-speed uplinks to maximize throughput and support bandwidth-intensive devices.
Cloud-Managed Simplicity
Deploy, monitor, and manage networks across multiple sites through the EnGenius Cloud platform.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)
IEEE 802.3 u/ab
Processor
Qualcomm® Networking Pro 1220
Antenna
2 x 2.4 GHz: 5 dBi (Integrated Omni-Directional)
2 x 5 GHz: 6 dBi (Integrated Omni-Directional)
2 x 6 GHz: 6 dBi (Integrated Omni-Directional)
Scanning Radio
N/A
BLE
N/A
Physical Interface
1 x 10GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-Color LED
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)
Maximum Power Consumption
21W
Wireless & Radio
Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz
Operation Modes
Managed Mode: AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz
Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
Up to 22 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance
Radio Chains/Spatial Stream
2×2:2
SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 2,900 Mbps wireless data rate with HE160 bandwidth to a 2×2 wireless device under the 5GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 5,800 Mbps wireless data rate with EHT320 bandwidth to a 2×2 wireless device under the 6GHz radio.
MU-MIMO
Two (2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two (2) spatial stream MU-MIMO for up to 2,900 Mbps wireless data rate with HE160 bandwidth to a 2×2 wireless device under the 5GHz radio.
Two (2) spatial stream MU-MIMO for up to 5,800 Mbps wireless data rate with EHT320 bandwidth to a 2×2 wireless device under the 6GHz radio.
Supported Data Rates (Mbps)
802.11be:
– 2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 4)
– 5 GHz: Max 2,900 (MCS0 to MSC11, NSS = 1 to 4)
– 6 GHZ: Max 5,800 (MCS0 to MSC13, NSS = 1 to 4)
802.11ax:
– 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
– 5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
– 6 GHZ: 18 to 2,400 (MCS0 to MSC13, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
DFS Certification
FCC
CE
IC
AirGuard (WIPS/WIDS)
N/A
Zero-wait DFS
N/A
Dedicated Scanning Radio
N/A
Max Concurrent Users
512
Client Balancing
Yes
Auto Channel Selection
Yes
Management
Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4, IPv6
Local Web Access
Supports HTTP or HTTPS
Environmental & Physical
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
ECW526 Device
Weight: 1.59 (720 g)
Length: 7.48″ (190 mm)
Width: 7.48″ (190 mm)
Height: 1.55″ (39.5 mm)
ECW526 Packaging
Weight: 2.36 lbs. (1.07 kg)
Length: 9.69″ (246 mm)
Width: 9.69″ (246 mm)
Height: 2.83″ (72 mm)
Package Contents
1 x ECW526 Cloud Managed Indoor Access Point
1 x Ceiling Mount Base
1 x Ceiling and Wall Mount Screw Kits
1 x T-rail Mount Kit
1 x Product Card
Certifications
FCC
CE
IC
UKCA
Warranty
5-Year Limited Hardware Warranty
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
