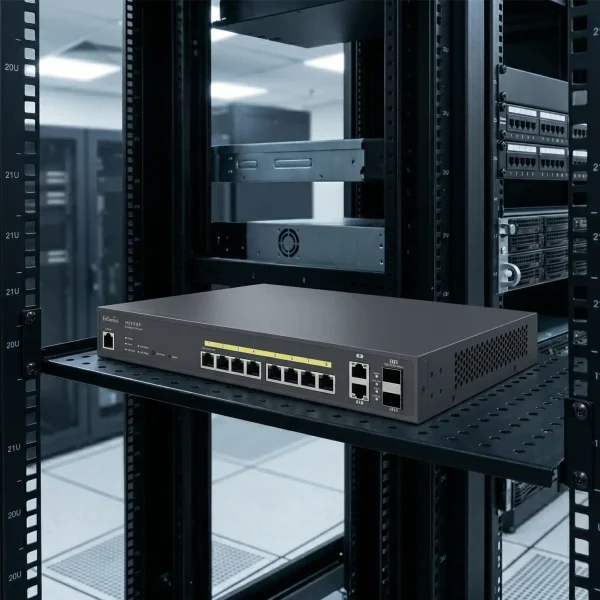

ECS1112FP L2+ Gigabit

8-Port 130W PoE+ Switch

The EnGenius ECS1112FP cloud-managed switch delivers high-power PoE+ support, 10 x Gigabit ports with 2 x fiber uplinks, 130W PoE Budget, and centralized management for business network expansion.

Buy Now Find a Partner

Expand Your Network with Fiber-Ready PoE+

The EnGenius ECS1112FP combines Gigabit PoE+ access, dedicated fiber uplinks, and cloud-managed simplicity to support growing business networks.

8 x Gigabit PoE+ Ports with Uplink & Fiber

Support wireless APs, cameras, and VoIP deployments with ample PoE+ (802.3at/af) power capacity.

130W PoE Budget

Deliver up to 130W of total PoE power for wireless, surveillance, and IoT deployments

Flexible Management, Simplified

Manage switches with EnGenius Cloud, Private Cloud, Standalone Mode, or remotely via GUI and CLI.

Resources

Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.

Product Datasheet (PDF)
Quick Start Guide
Cloud Management
Download Center
Cloud 5-Year Warranty
Resources Graphic

Try Wi-Fi 7 For Free!

Turbo-charge your network with a tri-band access point.

Start Your Demo
8-port Gigabit PoE+ switch
130W PoE power budget
24 Gbps Switching Capacity
2 GbE + 2 SFP Uplinks Ports
Layer 2+ switching features
Compact metal enclosure for desktop or rack deployment

Specifications

Technical

Port Standards

  • 802.3 10Base-T Ethernet
    802.3u 100Base-TX Ethernet
    802.3ab 1000Base-T Ethernet
    802.3x Full-Duplex Flow Control

Network Ports

  • 10 10/100/1000 Mbps Ports + 2x SFP Ports

Switching Capacity

  • 24Gbps

SDRAM

  • 256MB

Flash Memory

  • 32MB

PoE+ Capable Ports

  • 1-8

Total PoE Budget

  • 130W

Power Source

  • 100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators

  • Power LED
    Fault LED
    PoE Max LED
    LAN Mode LED
    PoE Mode LED

Ports

  • Link/Activity/Speed (per Ethernet port)
    Link/Activity/Speed (per SFP slot)

Software Features (L3 Features)

Multiple IP Interface

  • 20 IPv6 address

ARP Table

  • Max. 192 ARP entries

IPv4 Static Route

  • Max. 63 entries

IPv6 Static Route

  • Max. 21 entries

Software Features (L2 Features)

Network Management

  • EnGenius Cloud
    Local Web GUI

MAC Address Table

  • 8K

Jumbo Frame

  • 10K

Multicast Group

  • Max 256 groups

MLD Snooping

  • MLD Snooping: v1

QoS-Number of Priority Queues Supported

  • Queue 8

Trust Mode

  • Cos/802.1p
    DSCP
    CoS/802.1p-DSCP

Scheduling Mechanism

  • Strict / WRR/ Strict + WRR

Bandwidth Control

  • Port-based bandwidth control (Ingress/Egress)

Port Security

  • Max. 256 Entries

Access Control List (ACL)

  • MAC Based ACL
    IPv4/IPv6 Based ACL
    ACL Binding

Web Graphical User Interface (GUI)

  • HTTP IPv4 / IPv6
    HTTPS IPv4 / IPv6

SNMP

  • SNMP v1/v2c/v3 Support

RMON

  • RMON 1,2,3,9

System Time

  • Time Setting/Daylight saving

Common L2 Features

  • 802.1D Spanning Tree
    802.1w Rapid Spanning Tree
    802.1S Rapid Spanning Tree
    Loopback Detection
    Multicast Filtering
    IGMP Snooping
    802.1Q VLAN tagging
    802.3x flow control
    802.3ad Link Aggregation
    IPv4 DHCP Relay
    IPv4 DHCP Snooping
    IPv4 DHCP Snooping Source MAC Address Check-up
    ARP Packet Validation (additional validation checks)
    Voice VLAN
    Port-based VLAN
    CoS Mapping
    802. 1X Radius Authentication Protocol
    IPv4 Settings
    IPv6 Settings
    IEEE 802. 3az Energy Efficient Ethernet (EEE)
    Command Line Interface (CLI)
    SSH Server
    Telnet Server
    TFTP Client
    Configuration Upgrade/Backup
    Simple Network Time Protocol (SNTP)
    SYSLOG
    Broadcast/Unknown Multicast/Unknown Unicast Storm Control

Environmental & Physical

Temperature Range

  • Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

  • Operating: 5% – 95%

Package Contents

  • 1 x Cloud Managed Gigabit Switch
    1 x Quick Installation Guide
    1 x Power Cord
    1 x RJ45 Console Cable
    1 x Rack Mount Kit

Device Dimensions & Weights

ECS1112FP Device

  • Weight: 4.4 lbs. (1.9 kg)
    Width: 13” (330.20 mm)
    Length: 9” (228.60 mm)
    Height: 1.73” (43.94 mm)

ECS1112FP Packaging

  • Weight: 6.2 lbs. (2.81 kg)
    Width: 15.4” (391 mm)
    Length: 12.2” (310 mm)
    Height: 4” (102 mm)

Warranty

  • 5 years

Certifications

  • CE
    FCC
    IC

PoE Budget Planning

Calculate your network devices on this switch's total power over ethernet budget.

Port Capacity Planner

Ethernet
SFP Uplink

Available Models

Add devices to this switch

Budget Status

Remaining PoE Capacity
130 Watts
Total Power Used: 0.0W
Capacity Used 0%

PoE power calculations are estimates only. Actual available PoE capacity may be up to 6W lower than the switch's published PoE budget. Available power may vary based on cable length and quality, ambient temperature, installation conditions, and other environmental factors.
