AI Dome Camera
with Storage

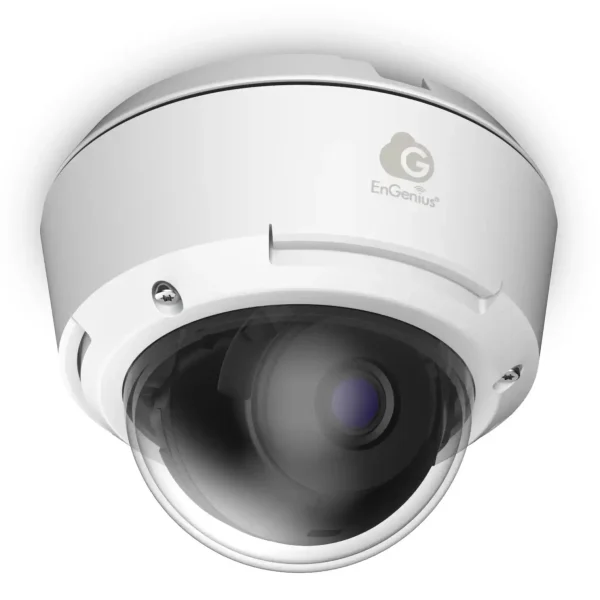

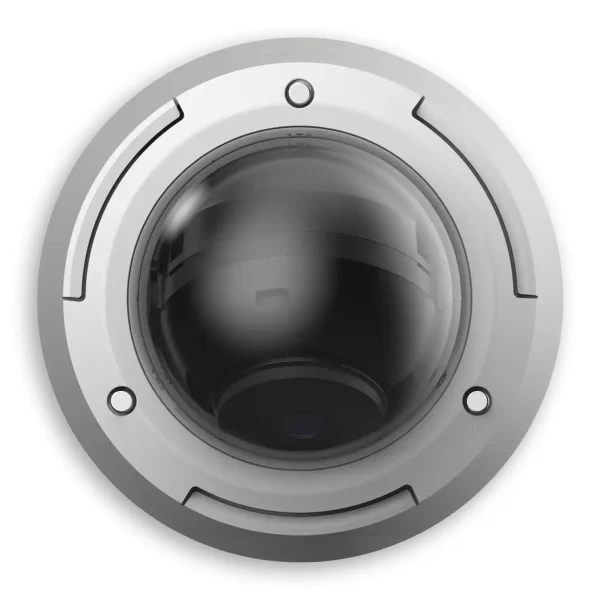

The EnGenius ECC100 5MP AI Dome Camera features 102° horizontal viewing angle, built-in storage for NVR-free configurations, & advanced edge AI analytics for indoor/outdoor surveillance.
Smarter Surveillance with AI-Powered Intelligence
The ECC100 combines 5MP imaging, AI-powered analytics, local edge storage, and centralized cloud management, making it ideal for retail, offices, restaurants, healthcare facilities, schools, hospitality, and small to medium-sized businesses.
Hybrid AI Architecture
Combines real-time edge AI with EnGenius Cloud AI to deliver faster event detection, intelligent search, and network-wide security insights.
EnGenius Cloud Management
Manage, configure, and monitor EnGenius networking and surveillance solutions from a single cloud-based platform.
256GB Edge Storage
Built-in encrypted storage enables local recording, simplifies deployment, and eliminates the need for a dedicated NVR.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Join Our PoC Program!
Get a fully sponsored EnGenius AI surveillance deployment & become a trusted reference!
Specifications
Camera Features
CPU
InnoFusion C5-30Q
Flash
128MB NAND
Memory
256MB DDR3
Image Sensor
1 / 2.8” Sony Starvis CMOS
Sensor Resolution
5MP 2592 x 1944 (4:3)
Lens Type
Fixed
Focal Length
3.16mm
Aperture
F2.0
Iris
Fixed
Field of View (after LDC2)
Horizontal: 102°
Vertical: 71.6°
Diagonal: 132°
Sensor Movement
Tilt: 90°
Pan: 350°
Rotation: 350°
Shutter Speed
1 / 7.5 sec. to 1 / 10,000 sec.
Day/Night
IR-Cut filter for day and night function
IR Cut Filter
Yes
IR Range
20m / 66ft
Minimum Illumination
0.05 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B&W)
Onboard Storage
Capacity: Built-in EMMC 256GB
Recording source: Both video and audio (optional for audio)
Retention Method: 24/7 seamless and auto recycling
Retention Days: 20 days based on video bit rate
Standard Video Settings
Compression
H.265, H.264
Frame Rate
20FPS, max 30 FPS
Video Quality
Optional 768Kbps, 1Mbps(default), 2.5Mbps
Video Processing
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation
Standard Audio Settings
Audio
Supported
Audio Capacity
One-way audio
Interface
Built-in microphone
Effective Range
5m / 15ft
Power and Network
Power Input
With IR: IEEE 802.3af Type 1 PoE Class 2
Without IR: IEEE 802.3af Type 1 PoE Class 2
Power Consumption
With IR: 37-57V, 0.14-0.09A, 6.5W
Without IR: 37-57V, 0.08-0.05A, 2.9W
Weatherproofing
IP67
Resistance
IK10
Connectivity
RJ-45 cable connector for network/PoE connection
10/100 Mbps
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Reset Button
Supported
Support deletes all recordings
Remote Reboot
Supported
LED Indicator
System and network status
LED blinking
Software Capabilities
People Analytics
People detection
People tracking
History search
People counting
Vehicle Analytics
Vehicle detection
Vehicle tracking
History search
Vehicle counting
Alert
Tampering detection
Restricted area detection
Line-crossing detection
Advanced Image Processing
Image Orientation
Image Brightness and Contrast
HDR
3DNR
Privacy mask
Environmental & Physical
Operating Temperature
-20°C to 50°C / -4°F to 122°F
Humidity (non-condensing)
5 to 90% non-condensing
Package Contents
1 x ECC100 AI Network Camera
1 x Screw Position Identifier
1 x Mounting Plate1
1 x EMT Adaptor
1 x Replacement Desiccant
1 x Waterproof Connection Kit
1 x L-Shaped Wrench
1 x Mounting Kit
1 x Product Card
Dimensions & Weights
ECC100 Device
Weight: 1.15 lbs. (.52 kg)
Ø: 122mm / 4.79in, H: 94.8mm / 3.73in
ECC100 Packaging
Weight: 2.25lbs (1.02kg)
Width: 7.36“ (187mm)
Length: 8.62” (219mm)
Height: 5.71” (145mm)
Compliance & Warranty
Warranty
5 years
Certifications
CE
FCC
Compliance
TAA
NDAA
Power Sources
This camera does not include an AC adapter and must be powered over ethernet.
