AI Dome Camera
without Storage

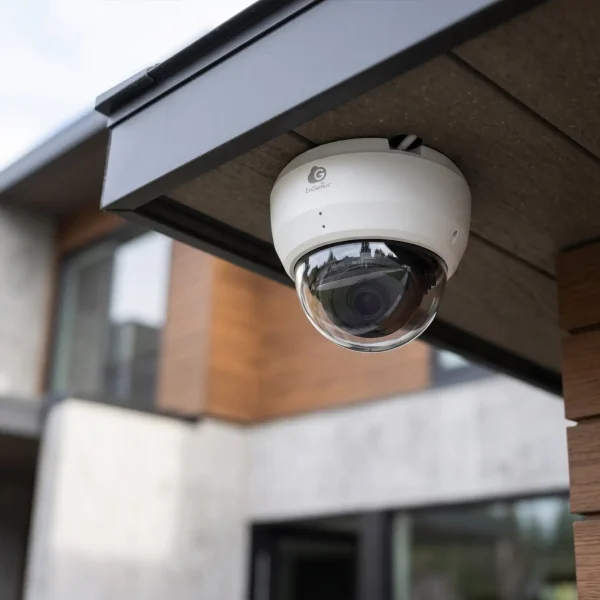

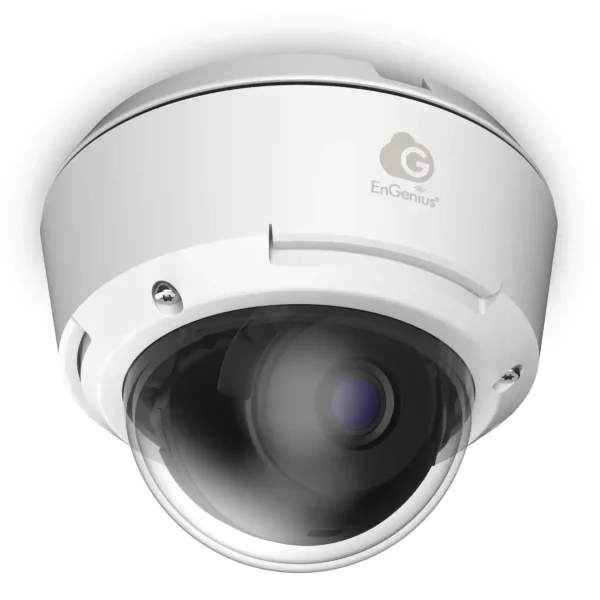

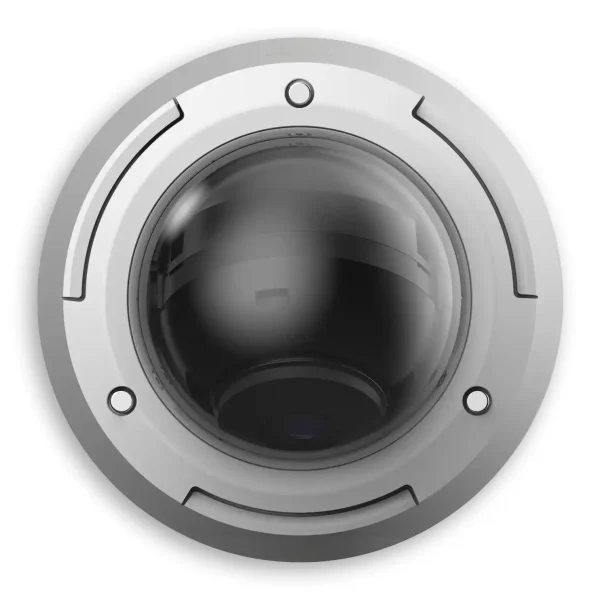

The EnGenius ECC100Z 5MP AI Dome Camera features 102° horizontal viewing angle, built-in NPU advanced edge AI analytics, and IP67/IK10 weather-proof enclosure for indoor/outdoor surveillance.
Flexible AI Surveillance for Cloud-Managed Security
The ECC100Z delivers intelligent AI surveillance with centralized recording flexibility, making it an excellent choice for multi-site businesses, education, healthcare, retail, hospitality, and commercial facilities utilizing network video recorders.
Hybrid AI Architecture
Combines real-time edge AI with EnGenius Cloud AI to deliver faster event detection, intelligent search, and network-wide security insights.
EnGenius Cloud Management
Manage, configure, and monitor EnGenius networking and surveillance solutions from a single cloud-based platform.
Pairs with EnGenius AI NVS
Pair with the EnGenius EVS1002D or EVS1004D AI NVS to provide centralized management, redundant recording, and expanded video storage.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Scale Your Existing Surveillance System
Modernize and integrate AI to third-party cameras without a full rip-and-replace.
Specifications
Camera Features
CPU
InnoFusion C5-30Q
Flash
128MB NAND
Memory
256MB DDR3
Image Sensor
1 / 2.8” Sony Starvis CMOS
Sensor Resolution
5MP 2592 x 1944 (4:3)
Lens Type
Fixed
Focal Length
3.16mm
Aperture
F2.0
Iris
Fixed
Field of View (after LDC2)
Horizontal: 102°
Vertical: 71.6°
Diagonal: 132°
Sensor Movement
Tilt: 90°
Pan: 350°
Rotation: 350°
Shutter Speed
1 / 7.5 sec. to 1 / 10,000 sec.
Day/Night
IR-Cut filter for day and night function
IR Cut Filter
Yes
IR Range
20m / 66ft
Minimum Illumination
0.05 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B&W)
Standard Video Settings
Compression
H.265, H.264
Frame Rate
20FPS, max 30 FPS
Video Quality
Optional 768Kbps, 1.5Mbps(default), 2Mbps
Video Processing
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation
Standard Audio Settings
Audio
Supported
Audio Capacity
One-way audio
Interface
Built-in microphone
Effective Range
5m / 15ft
Power and Network
Power Input
With IR: IEEE 802.3af Type 1 PoE Class 3
Without IR: IEEE 802.3af Type 1 PoE Class 3
Power Consumption
With IR: 37-57V, 0.14-0.09A, 6.5W
Without IR: 37-57V, 0.08-0.05A, 2.9W
Weatherproofing
IP67
Resistance
IK10
Connectivity
RJ-45 cable connector for network/PoE connection
10/100 Mbps
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Reset Button
Supported
Support deletes all recordings
Remote Reboot
Supported
LED Indicator
System and network status
LED blinking
Software Capabilities
People Analytics
People detection
People tracking
History search
People counting
Vehicle Analytics
Vehicle detection
Vehicle tracking
History search
Vehicle counting
Alert
Tampering detection
Restricted area detection
Line-crossing detection
Occupation detection
Queue detection
Advanced Image Processing
Image Orientation
Image Brightness and Contrast
HDR
3DNR
Privacy mask
Power frequency
Local streaming
Video backup to NAS/NVS
Environmental & Physical
Operating Temperature
-20°C to 50°C / -4°F to 122°F
Humidity (non-condensing)
5 to 90% non-condensing
Package Contents
1 x ECC100Z AI Network Camera
1 x Screw Position Identifier
1 x Mounting Plate
1 x EMT Adaptor
1 x Replacement Desiccant
1 x Waterproof Connection Kit
1 x L-Shaped Wrench
1 x Mounting Kit
1 x Product Card
Dimensions & Weights
ECC100Z Device
Weight: 1.15 lbs. (.52 kg)
Ø: 122mm / 4.79in, H: 94.8mm / 3.73in
ECC100Z Packaging
Weight: 2.25lbs (1.02kg)
Width: 7.36“ (187mm)
Length: 8.62” (219mm)
Height: 5.71” (145mm)
Compliance & Warranty
Warranty
5 years
Certifications
CE
FCC
Compliance
TAA
NDAA
Power Sources
This camera does not include an AC adapter and must be powered over ethernet.
