AI Bullet Camera
without Storage

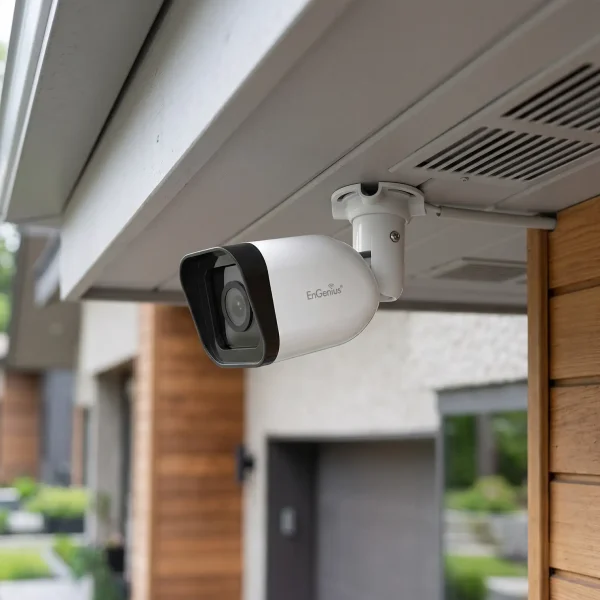

The EnGenius ECC120Z 5MP AI Bullet Camera features 76° horizontal viewing angle with up to 30m of long-distance IR, advanced edge AI analytics, and an IP66 weather-proof enclosure.
AI Surveillance Built for Flexible Deployments
The ECC120Z combines AI-powered analytics, flexible recording, and cloud management in a rugged, weather-resistant form factor ideal for parking lots, warehouses, schools, commercial buildings, and hospitality properties.
Hybrid AI Architecture
Combines real-time edge AI with EnGenius Cloud AI to deliver faster event detection, intelligent search, and network-wide security insights.
EnGenius Cloud Management
Manage, configure, and monitor EnGenius networking and surveillance solutions from a single cloud-based platform.
Pairs with EnGenius AI NVS
Pair with the EnGenius EVS1002D or EVS1004D AI NVS to provide centralized management, redundant recording, and expanded video storage.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Scale Your Existing Surveillance System
Modernize and integrate AI to third-party cameras without a full rip-and-replace.
Specifications
Camera Features
CPU
InnoFusion C5-30Q
Flash
128MB NAND
Memory
256MB DDR3
Image Sensor
1 / 2.8” Sony Starvis CMOS
Sensor Resolution
5MP 2592 x 1944 (4:3)
Lens Type
Fixed
Focal Length
4mm
Aperture
F2.0
Iris
Fixed
Field of View (after LDC2)
Horizontal: 78°
Vertical: 56°
Diagonal: 103°
Sensor Movement
Tilt: 0°~90°
Rotation: 0°~180°
Shutter Speed
1 / 7.5 sec. to 1 / 10,000 sec.
IR Cut Filter
Yes
IR Range
30m / 98ft
Minimum Illumination
0.05 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B&W)
Standard Video Settings
Compression
H.265, H.264
Frame Rate
20FPS, max 30 FPS
Video Quality
Optional 768Kbps, 1.5Mbps(default), 2Mbps
Video Processing
AE, AWB, AGC, BLC, HLC, WDR, HDR, 3DNR, Privacy Mask, OSD, Video Orientation
Power and Network
Power Input
With IR: IEEE 802.3af Type 1 PoE Class 3
Without IR: IEEE 802.3af Type 1 PoE Class 3
Power Consumption
With IR: 37-57V, 0.14-0.09A, 7.5W
Without IR: 37-57V, 0.08-0.05A, 2.9W
Weatherproofing
IP66
Connectivity
RJ-45 cable connector for network/PoE connection
10/100 Mbps
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Reset Button
Supported
Support deletes all recordings
Remote Reboot
Supported
LED Indicator
System and network status
LED blinking
Software Capabilities
People Analytics
People detection
People tracking
History search
People counting
Vehicle Analytics
Vehicle detection
Vehicle tracking
History search
Vehicle counting
Alert
Tampering detection
Restricted area detection
Line-crossing detection
Occupation detection
Queue detection
Advanced Image Processing
Image Orientation
Image Brightness and Contrast
HDR
3DNR
Privacy mask
Power frequency
Local streaming
Video backup to NAS/NVS
Environmental & Physical
Operating Temperature
-20°C to 50°C / -4°F to 122°F
Humidity (non-condensing)
98% non-condensing
Package Contents
1 x ECC120Z AI Network Camera
1 x Mounting Kit
1 x Product Card
Dimensions & Weights
ECC120Z Device
Weight: 0.73lbs (0.334kg)
Width: 3“ (76.21mm)
Length: 8” (203.14mm)
Height: 3” (76.21mm)
ECC120Z Packaging
Weight: 1.32lbs (0.6kg)
Width: 10.2“ (259mm)
Length: 6.18” (157mm)
Height: 3.9” (99mm)
Compliance & Warranty
Warranty
5 years
Certifications
CE
FCC
Compliance
TAA
NDAA
Power Sources
This camera does not include an AC adapter and must be powered over ethernet.
Surveillance that Tells the Whole Story.
Context-Aware AI & Cloud Edge Camera Innovation.
