14 Outlet
Smart PDU
The EnGenius ECP214 is a cloud-managed PDU that provides remote power control, energy monitoring, surge protection, and device power cycling for simplified management and maintenance.
Enterprise Power Management with Intelligent Automation

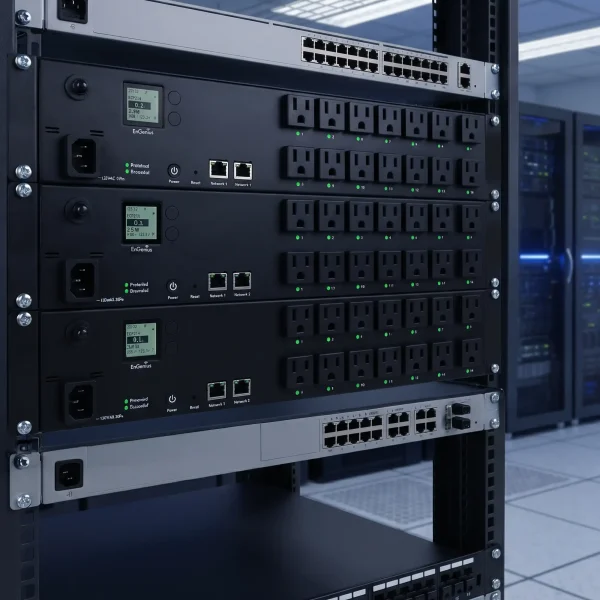

The ECP214 combines cloud-based power management, automated device recovery, and intelligent power protection in a high-capacity design ideal for server rooms, network closets, enterprise offices, hospitality, education, and MSP-managed deployments.
Self-Healing Auto-Reboot
Automatically restarts unresponsive devices to restore service without manual intervention.
Remote Power Management
Monitor energy usage and control individual outlets from anywhere via EnGenius Cloud.
Reliable Power Protection
Sequential power-on, surge protection, and overcurrent protection safeguard connected equipment.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Input
Voltage: 100-120V
Frequency: 50/60Hz
Derated Input Current: 12A
Power Input Plug: SJT 14AWG
Power Cord Type: NEMA-5-15P
Power Cord Length: 6 foot
LED Indicators
1 x Outlet Power Switch
2 x LAN
1 x Outlet Power Indicator
1 x Grounded Indicator
1 x SPD Indicator
Output
Voltage: 100-120V
Frequency: 50/60Hz
Derated Input Current: 12A
Outlet Type: NEMA-5-15R
Number of Outlets: 14
Overload Protection: 15A
Max Power Consumption: 1800 for 120V
Physical Interface
2 x 10/100/1000/ BASE-T, RJ-45 Ethernet Port
IEC-C13 Inlet
Reset Button
15A Circuit Breaker
Environment & Physical
Temperature Range
Operating: 32º~+122ºF/0ºC~+50ºC
Storage: -22Fº~+158ºF/-30ºC~+70ºC
Humidity (non-condensing)
Storage: 95% or less
Surge Protection
Yes
ESD Protection
Yes
Dimensions & Weights
ECP214 Device
Weight: 5.36 lbs. (2.43 kg)
Width: 3.46” (88 mm)
Length: 17.32” (440 mm)
Height” 3.46” (88 mm)
Enclosure material
SECC
Package Contents
1 x ECP214 PDU
1 x Power Cord
1 x Mounting Brackets
4 x Rubber Feet Cushion
8 x M3x5 Screws
4 x T4x19 Screws
4 x Spacer
1 x Drywall Anchor Kit
1 x Retention Clip
Certifications
FCC
IC
WEEE
RoHS
UL1449 type 5
UL62368-1
CSA22.2
Warranty
5 years
