8-Port 114W
PoE+ Switch

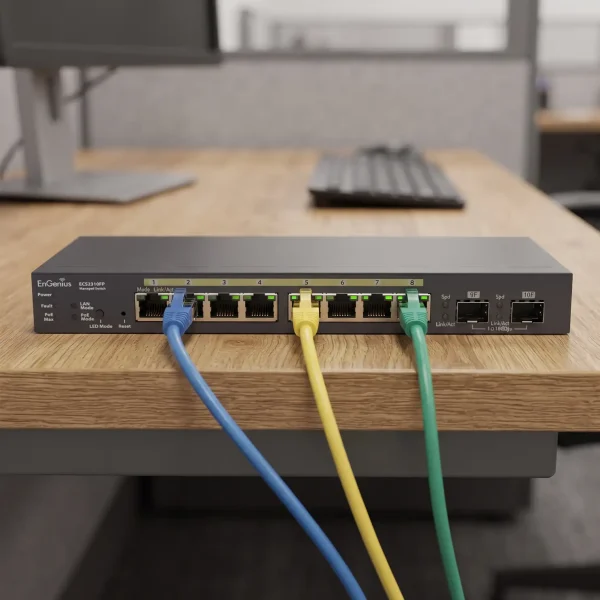

The EnGenius ECS2310FP multi-gigabit cloud-managed switch delivers 8 x 2.5GbE PoE+ ports, 2 x 10G fiber uplinks, 114W PoE Budget, and advanced Layer 2+ features for high-performance business networks.
Multi-Gig Speed for Modern Workplaces
The EnGenius ECS2310FP provides multi-gigabit performance, PoE+ power delivery, and fiber uplink connectivity to support bandwidth-intensive applications.
8 Multi-Gig PoE+ Ports with 10G Fiber Uplinks
Support high-performance Wi-Fi access points and bandwidth-intensive devices with PoE+ (802.3at/af).
114W PoE Budget
Provide ample power for high-performance devices without requiring additional power sources.
Flexible Management, Simplified
Manage switches with EnGenius Cloud, Private Cloud, Standalone Mode, or remotely via GUI and CLI.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GB Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
8 x 100/1000/2500 Mbps Ports
2 x 10G SFP+ Ports
Switching Capacity
80 Gbps
Memory
512MB DDR4 SDRAM
Flash Memory
128 MB NAND Flash
PoE-Capable Ports
8× IEEE 802.3af/at PoE+ (Ports 1–8)
Total PoE Budget
114W
Power Input
100–240V AC, 50/60Hz
LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
L2 Features
Jumbo Frame
Up to 10K bytes
MAC address Table
Max. 16K
Multicast Group
Max 256 groups
MLD Snooping
Supports MLD Snooping v1
Quality of Service (QoS)
Priority Queues
8
Trust Modes
CoS/802.1p, DSCP
Scheduling
Strict Priority (SP), Weighted Round Robin (WRR), SP + WRR
Bandwidth Control
Port-based ingress and egress rate limiting
Security
Port Security
Up to 256 MAC entries
ACL
MAC-based and IPv4/IPv6 ACLs
Management
Web Management
HTTP/HTTPS (IPv4/IPv6)
SNMP
v1/v2c/v3
RMON
Groups 1, 2, 3, and 9
Time Management
Manual time setting
Daylight Saving Time (DST)
Spanning Tree
IEEE 802.1D STP
802.1w RSTP
802.1s MSTP
Loop Protection
Loopback Detection
Multicast Filtering
IGMP Snooping
VLAN
IEEE 802.1Q VLAN Tagging
Port-based VLAN
Voice VLAN
QoS
CoS Mapping
Flow Control
IEEE 802.3x
Link Aggregation
IEEE 802.3ad LACP
DHCP
IPv4 DHCP Relay
DHCP Snooping
DHCP Snooping Source MAC Validation
ARP Protection
ARP Packet Validation
Authentication
IEEE 802.1X
RADIUS
Maintenance
CLI
SSH and Telnet
File Transfer
TFTP Client
Configuration
Backup and Restore
Time Synchronization
SNTP
Logging
SYSLOG
Storm Control
Broadcast, Unknown Multicast, and Unknown Unicast
Environmental & Physical
Operating Temperature
0°C to 40°C (32°F to 104°F)
Operating Humidity
10% to 95% (non-condensing)
Form Factor
Desktop
Dimensions & Weights
ECS2310FP Device
Weight: 165 lbs. (749 g)
Length: 9.45″ (240 mm)
Width: 4.13″ (105 mm)
Height: 1.06″ (27 mm)
ECS2310FP Packaging
Weight: 3.6 lbs. (1632 g)
Length: 10.67″ (271 mm)
Width: 6.61″ (168 mm)
Height: 3.34″ (85 mm)
Package Contents
1 x Cloud Managed Multi-Gigabit Switch
1 x Product Card
1 x Power Adapter
1 x Power Cord
1 x Rubber Feet Cushion
1 x Wall Mount Kit
PoE Budget Planning
Calculate your network devices on this switch's total power over ethernet budget.
Port Capacity Planner
Available Models
Budget Status
PoE power calculations are estimates only. Actual available PoE capacity may be up to 6W lower than the switch's published PoE budget. Available power may vary based on cable length and quality, ambient temperature, installation conditions, and other environmental factors.
