AI Dome Camera
without Storage

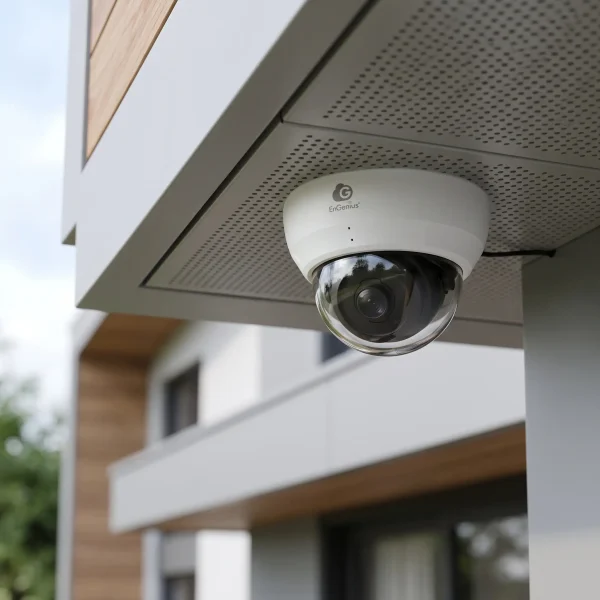

The EnGenius ECC500Z 8MP AI Dome Camera features 4K imaging quality, 3.28x motorized zoom, 132° ultra-wide viewing angle, advanced edge AI analytics, and IP67/IK10 weather-proof enclosure for indoor/outdoor surveillance.
Premium AI Surveillance for Centralized Recording
The ECC500Z delivers enterprise-class AI surveillance with flexible centralized recording, making it an excellent solution for corporate campuses, municipalities, transportation, public safety, healthcare systems, and high-security commercial environments.
Hybrid AI Architecture
Combines real-time edge AI with EnGenius Cloud AI to deliver faster event detection, intelligent search, and network-wide security insights.
EnGenius Cloud Management
Manage, configure, and monitor EnGenius networking and surveillance solutions from a single cloud-based platform.
Pairs with EnGenius AI NVS
Pair with the EnGenius EVS1002D or EVS1004D AI NVS to provide centralized management, redundant recording, and expanded video storage.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Scale Your Existing Surveillance System
Modernize and integrate AI to third-party cameras without a full rip-and-replace.
Specifications
Camera Features
CPU
Ambarella cv75
Flash
8GB EMMC
Memory
4GB DDR4
Image Sensor
1 / 2.8” Sony Starvis CMOS
Sensor Resolution
8MP 3840×2160 (16:9)
Lens Type
Varifocal 3x motorized zoom
Focal Length
3.2mm~10.5mm
Aperture
F1.6~F3.3
F1.6~F3.3
P-Iris
Field of View
Horizontal 108.1° ~ 30.3°
Vertical 56.3° ~ 17.1°
Diagonal 130.9° ~ 34.8°
Sensor Movement
Pan: 0° ~ 350°
Tilt: 0° ~ 60°
Roll: 0° ~ 350°
Shutter Speed
1/32,000 ~ 1/30
Day/Night
IR-Cut filter for day and night function
IR Cut Filter
Yes
IR Range
30m / 98ft
Minimum Illumination
0.05 Lux @ F1.6 (Color)
0.01 Lux @ F1.6 (B&W)
0 Lux with IR illumination on
Standard Video Settings
Compression
H.265, H.264
Frame Rate
20FPS, max 30 FPS
Video Quality
Optional 2.5Mbps, 4.5Mbps(default), 6Mbps
Video Processing
AE, AWB, AGC, BLC, HLC, WDR, HDR (120db), 3DNR, Privacy Mask, OSD, Video Orientation, AF (Auto focus and manually), Change FoV
Standard Audio Settings
Audio
Supported
Audio Capacity
One-way audio
Interface
Built-in microphone
Effective Range
5m / 15ft
Power and Network
Power Input
802.3at PoE+
Power Consumption
Max. 16.1W
Weatherproofing
IP67
Resistance
IK10
Connectivity
RJ-45 cable connector for network/PoE connection
10/100/1000 Mbps
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Reset Button
Supported
Support deletes all recordings
Remote Reboot
Supported
LED Indicator
System and network status
LED blinking
Software Capabilities
People Analytics
People detection
People tracking
History search
People counting
Vehicle Analytics
Vehicle detection
Vehicle tracking
History search
Vehicle counting
Alert
Tampering detection
Restricted area detection
Line-crossing detection
Advanced Image Processing
Advanced Intelligence
Cloud Management
Facial Recognition (Face Tracking, Image Search, POI Alerts)
EnGenius Cloud AI Integration
Environmental & Physical
Operating Temperature
-40°C ~ 50°C (-22°F ~ 122°F) (IR off)
-40°C ~ 60°C (-22°F ~ 140°F) (IR on)
Humidity (non-condensing)
5 to 90% non-condensing
Package Contents
1 x ECC500Z AI Network Camera
1 x Mounting Plate
1 x EMT Adaptor
2 x EMT Adaptor Screw
1 x Ground Screw Kit
3 x Mounting Plate Screw
1 x Replacement Desiccant
1 x L-Shaped Wrench
1 x Mounting Kit
1 x Product Card
Dimensions & Weights
ECC500Z Device
Weight: 1.63 lbs. (.74 kg)
Ø: 145mm / 5.71in, H: 105mm / 4.14in
ECC500Z Packaging
Weight: 2.84lbs (1.296kg)
Width: 9.4“(239mm)
Length: 8.19” (208mm)
Height: 5.75” (146mm)
Compliance & Warranty
Warranty
5 years
Certifications
CE
FCC
Compliance
TAA
NDAA
Power Sources
This camera does not include an AC adapter and must be powered over ethernet.
