Specifications Overview

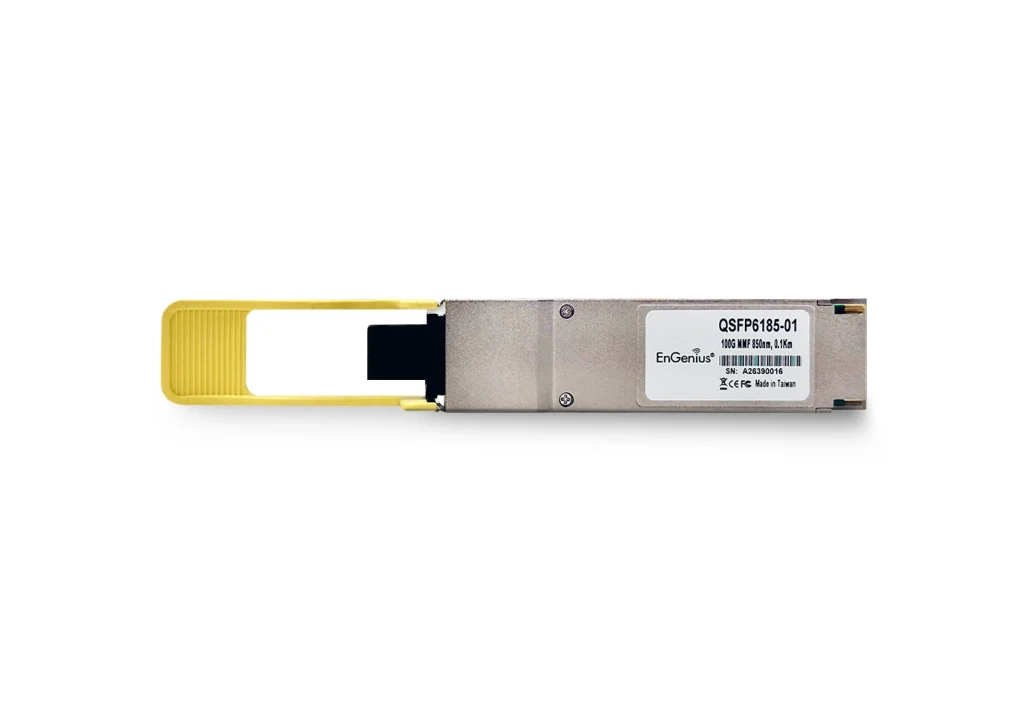

100G QSFP28 SR4 Transceiver for High-Speed Data Centers

QSFP6185-01

100Gbps connectivity and 100-meter OM4 multimode fiber, low power consumption, stable performance, and seamless MPO/MTP deployment




Technical Specifications

Connector Type
MPO/MTP

Data Rate
100 Gbps

Wavelength
850 nm

Max Transmission Distance
Up to 100 m over OM4 MMF or 70 m over OM3 MMF


Transmitter Characteristics

Supply Voltage
0.5V ~3.6V

Supply Current
1,060 mA

Output Optical Power
-8.4 to 2.4 dBm



Receiver Characteristics

Supply Voltage
3.3V

Supply Current
1,060 mA

Maximum Receiver Input Power
2.4 dBm

Receiver Sensitivity
-9.2 dBm


Environmental & Physical

Temperature
Operating: -0°C ~70°C (32°F ~158°F)
Storage: -40°C ~85°C (-40°F ~185°F)

Humidity
5~95% (non-condensing)

Device Dimensions (Lx W x H)
2.85” x 0.72” x 0.33” (72.4mm x 18.35mm x 8.5mm)

Device Weight
0.08 lb. (40g)

Package Dimensions (Lx W x H)
4.5” x 2.9” x 1” (114.3mm x 73.66mm x 25.4.97mm)

Package Weight
0.1 lb. (45.3g)


Type Name Version Release Date Download Checksum

Product Highlights
EnGenius QSFP6185-01 transceiver provides reliable 100Gbps connectivity for high-performance data center, enterprise, and cloud networking environments. Operating at an 850nm wavelength, it supports multimode fiber transmission up to 100 meters over OM4 fiber, making it ideal for short-reach, high-bandwidth applications. Designed for high-density deployments, it features MPO/MTP connectivity for quick installation and seamless integration. With low power consumption, stable signal integrity, and dependable performance, this transceiver helps optimize network efficiency while delivering the speed and reliability required for modern switching, aggregation, and server connectivity.
  • Seamless Connectivity: Connects 100GbE devices over multimode fiber with QSFP28 SR4 interfaces
  • High Performance: Delivers reliable 100Gbps data transmission with low latency and stable signal integrity
  • Cost-Effective: Enables high-speed fiber connectivity without costly network infrastructure upgrades
  • Plug-and-Play: Simple installation with hot-swappable design and no configuration required
  • Versatile and Scalable: Ideal for data centers, enterprise networks, server connectivity, and high-density switch uplinks
