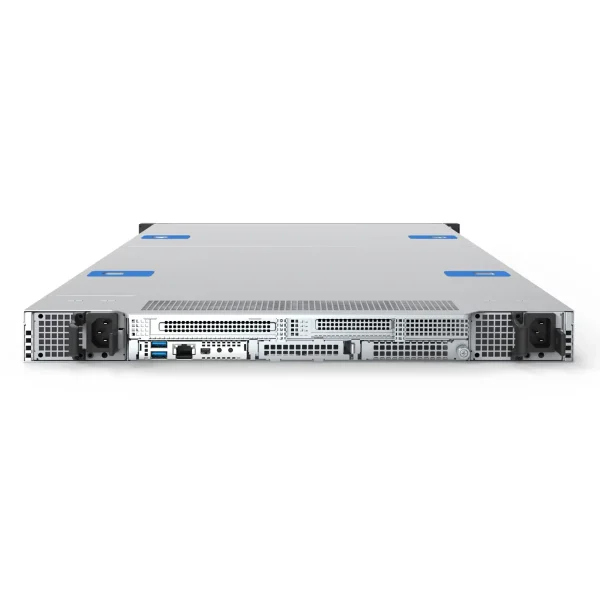

Form Factor
1U Rackmount
Processor
Intel Xeon 6 (6500/6700 Series)
P Core: Up to 144
E Core: Up to 86
Dual processor, TDP up to 350W
Socket Type
2 x LGA4710
PCH Chipset
No
Memory
Slot Count: 32 DIMM slots (16 DIMMs per CPU)
DDR5 ECC RDIMM
6400MT/s 1DPC
5200MT/s 2DPC
Capacity: 8TB with 256 GB DDR5
Drive Bays
Up to 12x 2.5”NVMe PCIe Gen5 Hot-Swap drive bays
Intel VROC Key Header
System Cooling
Air Cooling
8 x Smart FAN (40 x 40 x 56 mm)
Expansion Slot
Rear:
1x PCIe Gen5 x8 HHHL
1x PCIe Gen5 x16 FHHL
2x OCP3.0 x8 SFF
I/O Port
Front:
2x USB3.0 Type A
Rear:
1x USB3.0 Type A for BMC
1x Mini Display for BMC
1x USB3.0 Console for BMC
1x MGNT GE for BMC
Power Supply
M-CRPS
2000W
80 Plus Titanium Level (96%)
2x Hot Swap Redundant
AC Input 110V – 240V
Security
Trusted Platform Module(TPM) 2.0
Platform Firmware Resilience (PFR) 4.0
Intrusion Detection (Open Chassis Cover)
Chassis
Dimension (W x D x H):438 x 790 x 44 (mm)
Weight: around 18KG
Environment
Operating Temperature: 10°C to 35°C
Storage Temperature: -20°C ~60°C
Relative Humidity: 10%~90% (Non-Condensing)
System Management
IPMI 2.0 Management
Redfish Management
HTTPS Web Management
IPv4/ IPv6 Address
Dashboard
Hardware Sensor Monitor
KVM console
Serial over LAN
Media Redirection Settings
Event Log & Alert (SMTP/ SNMP/Syslog)
LDAP/ Windows AD/ Radius
User Account Management
System Firewall (IP Access Control)
Hardware Root of trust (RoT)
Backup & Restore Configuration
Protocol support: SNMP, SMTP, DHCP, NTP, DNS, Dynamic DNS
Intel Platform Feature: Platform Firmware Resilience (PFR), Autonomous Crash Dump (ACD), At-Scale Debug (ASD)
Central Management
EnGenius Data Center Controller
