Specifications Overview
multi-gig

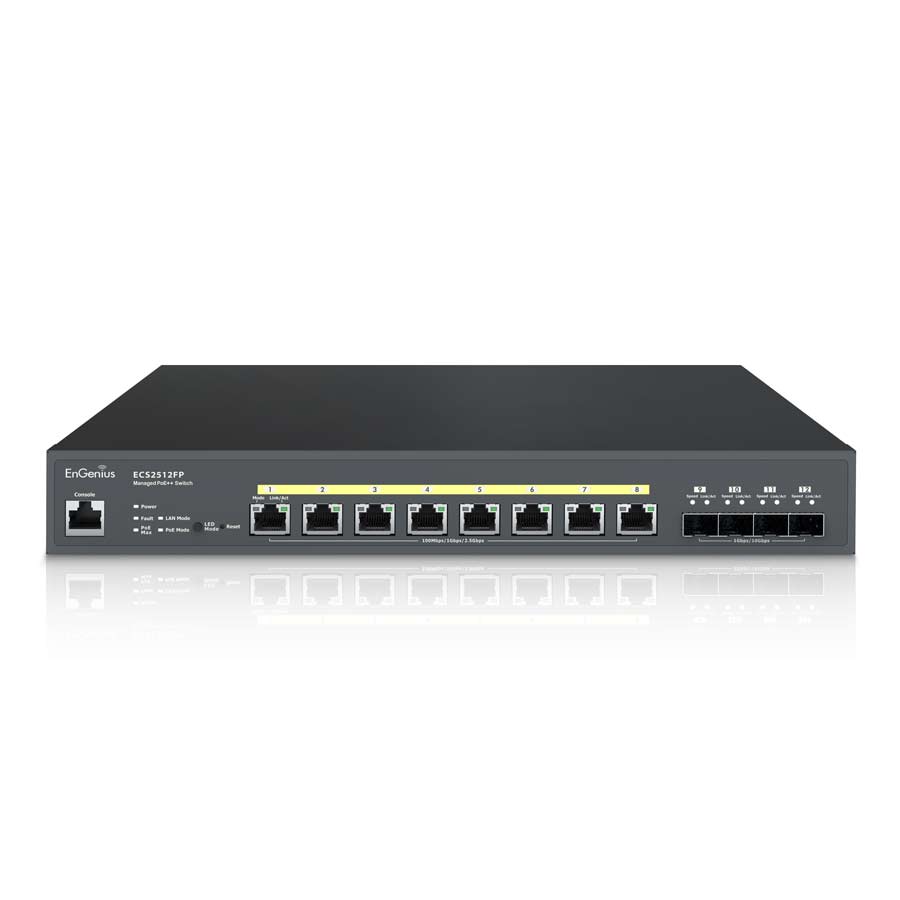

Cloud Managed 2.5G 8-Port 240W PoE++ Multi-Gigabit Switch w/ 4 SFP+ Uplink Ports

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
8 10/100/1000/2500 Mbps Ports + 4x SFP+ Ports

Switching Capacity
120Gbps

SDRAM
512MB

Flash Memory
128MB

PoE++ Capable Ports
1-8 (802.3 af/at/bt)

Total PoE Budget
240W

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)


Software Features (L3 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries


Software Features (L2 Features)

MAC Address Table
16K

Jumbo Frame
9K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries


Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL

Web Graphical User Interface(GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate
Certificate/Key Import

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree


Environmental & Physical

Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

Package Contents
1x Cloud Managed Multi-Gig PoE++ Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit


Device Dimensions & Weights

ECS2512FP Device
Weight: 5.7 lbs (2.6 kg)
Width: 9.05” (230 mm)
Length: 12.99” (330 mm)
Height: 1.73” (44 mm)

Packaging
Weight: 6.9 lbs (3.1 kg)
Width: 15.6” (396 mm)
Length: 12.2” (310 mm)
Height: 4” (102 mm)

Warranty
2 years

Certifications
CE
FCC
IC


Product Highlights

EnGenius Cloud ECS2512FP Multi-Gigabit Switch has 8-Ports, 2.5G per port, 802.3af/at/bt PoE++ Layer 2+ with 240W Budget, and 4 10G SFP+ uplink ports. Multi-Gigabit switches optimize network efficiency ensuring peak performance for large businesses. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or budget.
  • Full-Featured Layer 2+ Switching
  • 8 10/100/1000/2500 Base-T GbE Ports to serve high-bandwidth devices
  • 802.3af/at/bt PoE++ capable on all ports with a 240W PoE budget
  • 120 Gbps Switching capacity for improved performance
  • 4 Dual-Speed 10G SFP+ (fiber) uplink ports
