Specifications Overview

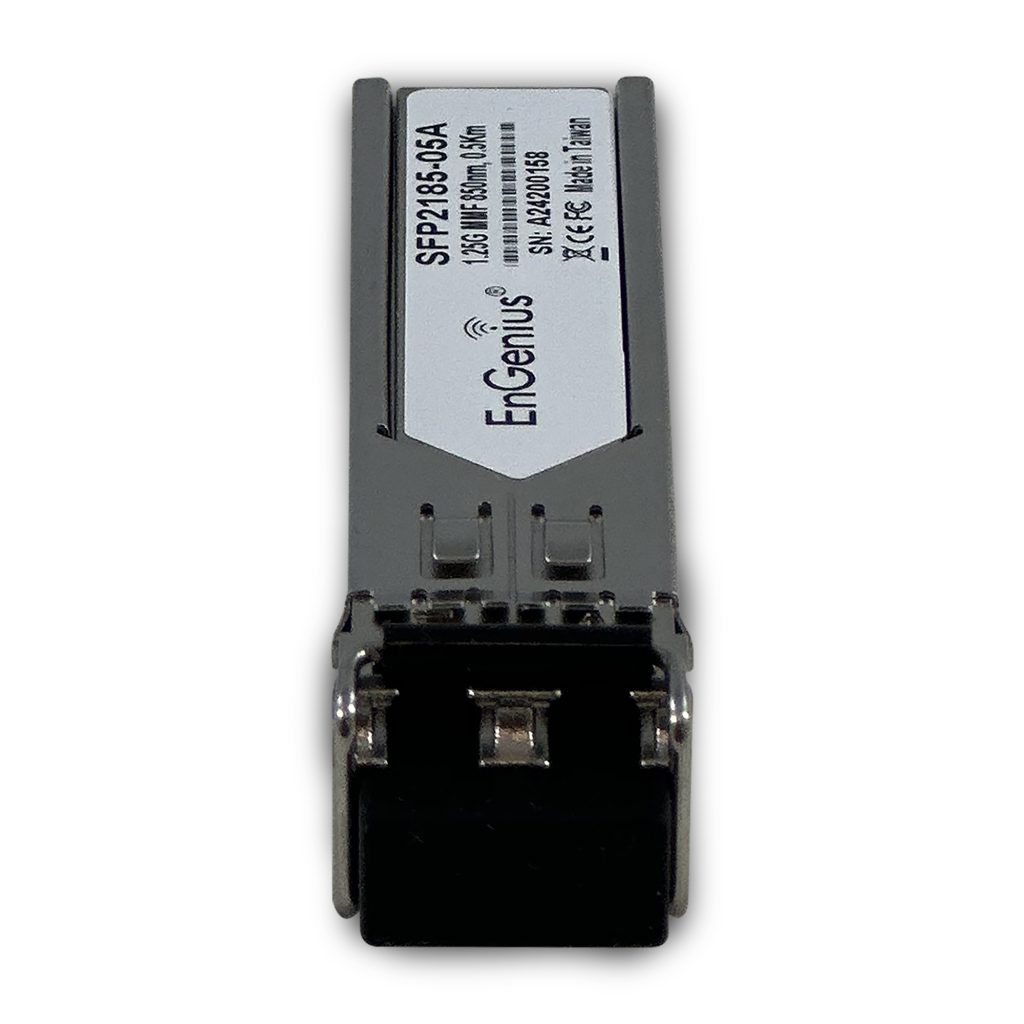

1.25Gig Transceiver

SFP+ Switch 1.25Gig Transceiver Module

SFP2185-05A

1.25G Multi Mode 0.5km



Buy Now


Technical Specifications

Standard Compliance
IEEE 802.3z

Data Rate Gigabit
1.25G

Media Type
MMF

Max Transmission Distance
20km

Connector
LC Connector

Average Output Optical Transmission Power
-10 ~ -3 dBm

Optical Receiver Sensitivity
-18 dBm

Wavelength
850nm

Cable Type
Multi-mode


Supply Voltage
3.15V ~3.45V

Max Voltage/Current
3.45V/160mA

Maximum Receiver Power
-3 dBm

Temperature
Operating: 0°C ~70°C (32°F ~158°F)
Storage: -40°C ~85°C (-40°F ~185°F)

Humidity
5~95% (non-condensing)

Dimensions (Lx W x H)
2.2” x 0.58” x 0.49” (55.9mm x 14.69mm x 12.39mm)

Weight
0.06 lb. (25g)

Certifications
Compliant with Class 1 Laser International safety Standard with EN 60825-1


Type Name Version Release Date Download Checksum
Webpage Learn About Switch Compatibility - November 27, 2024 -

Product Highlights
The EnGenius SFP2185-05A is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, provides up to 1.25 Gbps serial optical data transfer rates on single duplex fiber core. It can reach a distance of up to 500 meters if used with 50-micron fiber cables.
  • Hot-swappable LC Duplex connector
  • 850nm VCSEL
  • Data Rate: 1.25Gbps
  • Small Form Factor Pluggable MSA Compliant
  • Class 1 Laser International Safety Standard IEC 825 Compliant
  • IEEE 802.3az compliant
  • RoHS Compliant
