Specifications Overview

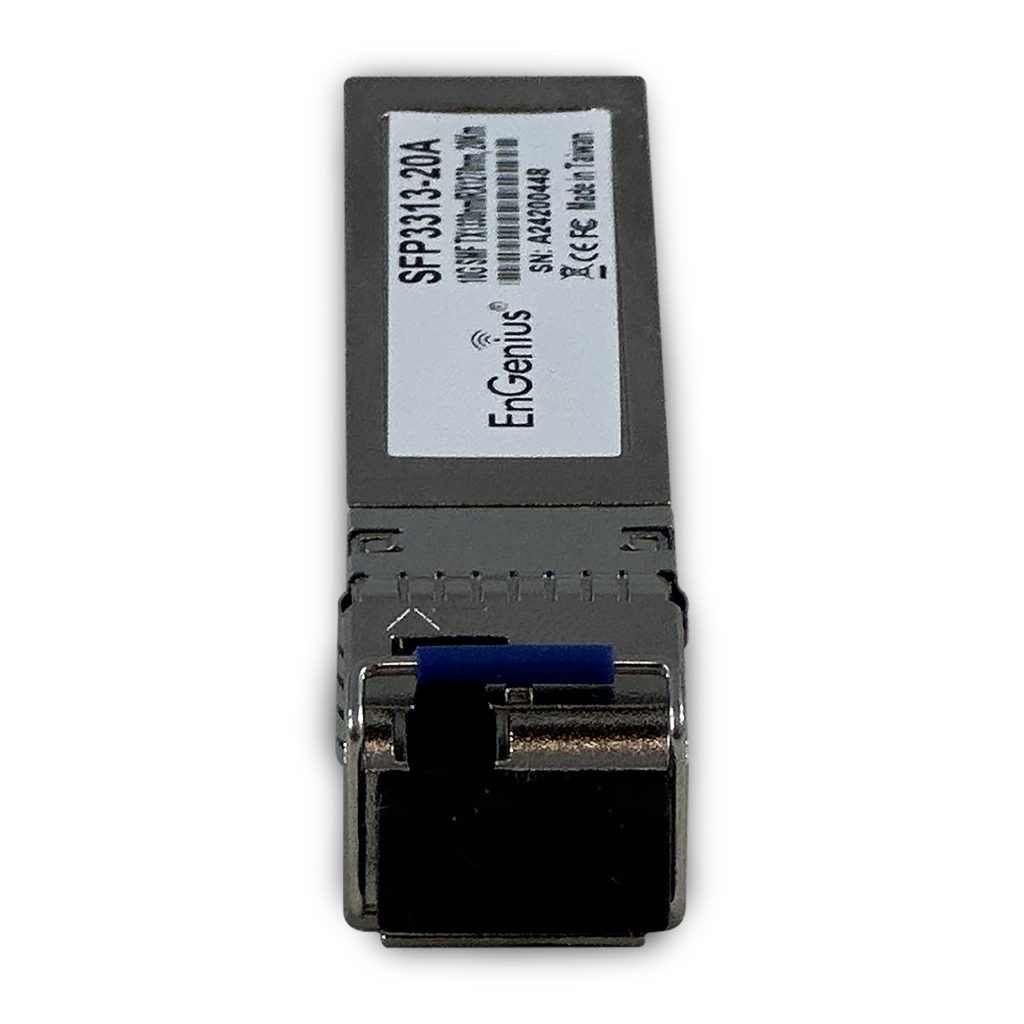

10Gig Transceiver Module

SFP+ Switch 10Gig Transceiver Module

SFP3313-20A

10G Single Mode 20km



Buy Now


Technical Specifications

Standard Compliance
IEEE 802.3ae 10Gbase-LR

Data Rate Gigabit
10.3125G

Media Type
SMF

Max Transmission Distance
20km

Connector
Duplex LC Connector

Single / Bi-Directional
Bi-Direction

Average Output Optical Transmission Power
-8.2 ~ -0.5 dBm

Optical Receiver Sensitivity
-20 dBm

Wavelength
TX: 1330nm
RX:1270nm


Cable Type
Single mode

Supply Voltage
3V ~3.6V

Max Voltage/Current
3.45V/300mA

Maximum Receiver Power
-14.1 dBm

Temperature
Operating: 0°C ~70°C (32°F ~158°F)
Storage:-40°C ~85°C (-40°F ~185°F)

Humidity
5~95% (non-condensing)

Dimensions (Lx W x H)
2.26” x 0.55” x 0.43” (57.5mm x 14mm x 10.8mm)

Weight
0.06 lb. (25g)

Certification
Compliant with Class 1 Laser International Safety Standard with EN 60825-1


Type Name Version Release Date Download Checksum
Webpage Learn About Switch Compatibility - November 27, 2024 -

Product Highlights
EnGenius SFP3313-20A SFP plus Transceivers are hot-swappable multi-purpose optical modules that support 10 Gigabit Ethernet applications across most switching and routing platforms. The transceivers support operating at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 20,000m, ideally suited for data centers, enterprise and storage area networks.
  • High Quality 10Gbase SFP plus transceiver
  • IEEE 802.3az compliant
  • Hot-swappable LC Duplex connector
  • Low power dissipation
  • Class 1 laser product, complies with International Safety Standard IEC 825
  • ROHS Compliant
