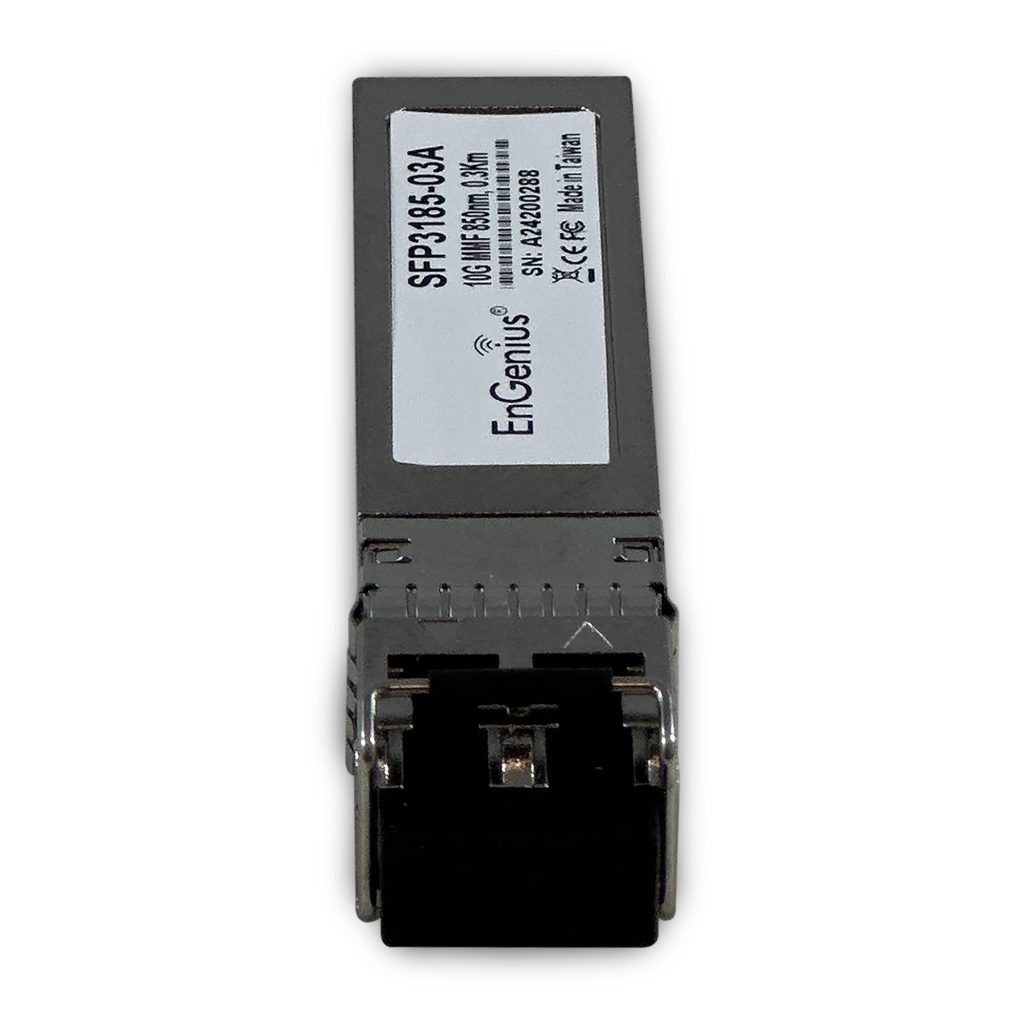

SFP3185-03A
10G Multi Mode 0.3km
Buy Now
Standard Compliance
IEEE 802.3ae 10Gbase-SR
Data Rate Gigabit
10.3125G
Media Type
MMF
Max Transmission Distance
0.3km
Connector
Duplex LC Connector
Single / Bi-Directional
Single Direction
Average Output Optical Transmission Power
-6.5 ~ -1 dBm
Optical Receiver Sensitivity
-11.1 dBm
Wavelength
850nm VCSEL
Cable Type
Multi-mode (50/125μm) or (62.5/125μm)
Supply Voltage
3.13V ~3.46V
Max Voltage/Current
3.46V/300mA
Maximum Receiver Power
-3 dBm
Temperature
Operating: 0°C ~70°C (32°F ~158°F)
Storage: -40°C ~85°C (-40°F ~185°F)
Humidity
5~95% (non-condensing)
Dimensions (Lx W x H)
2.3” x 0.54” x 0.49” (58.4mm x 13.9mm x 12.6mm)
Weight
0.06 lb. (25g)
Certification
Compliant with Class 1 Laser International Safety Standard with EN 60825-1
