Wireless 2×2 Managed Outdoor WiFi 6 Access Point/Bridge

Technical Specifications

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac

Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.8GHz

Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type

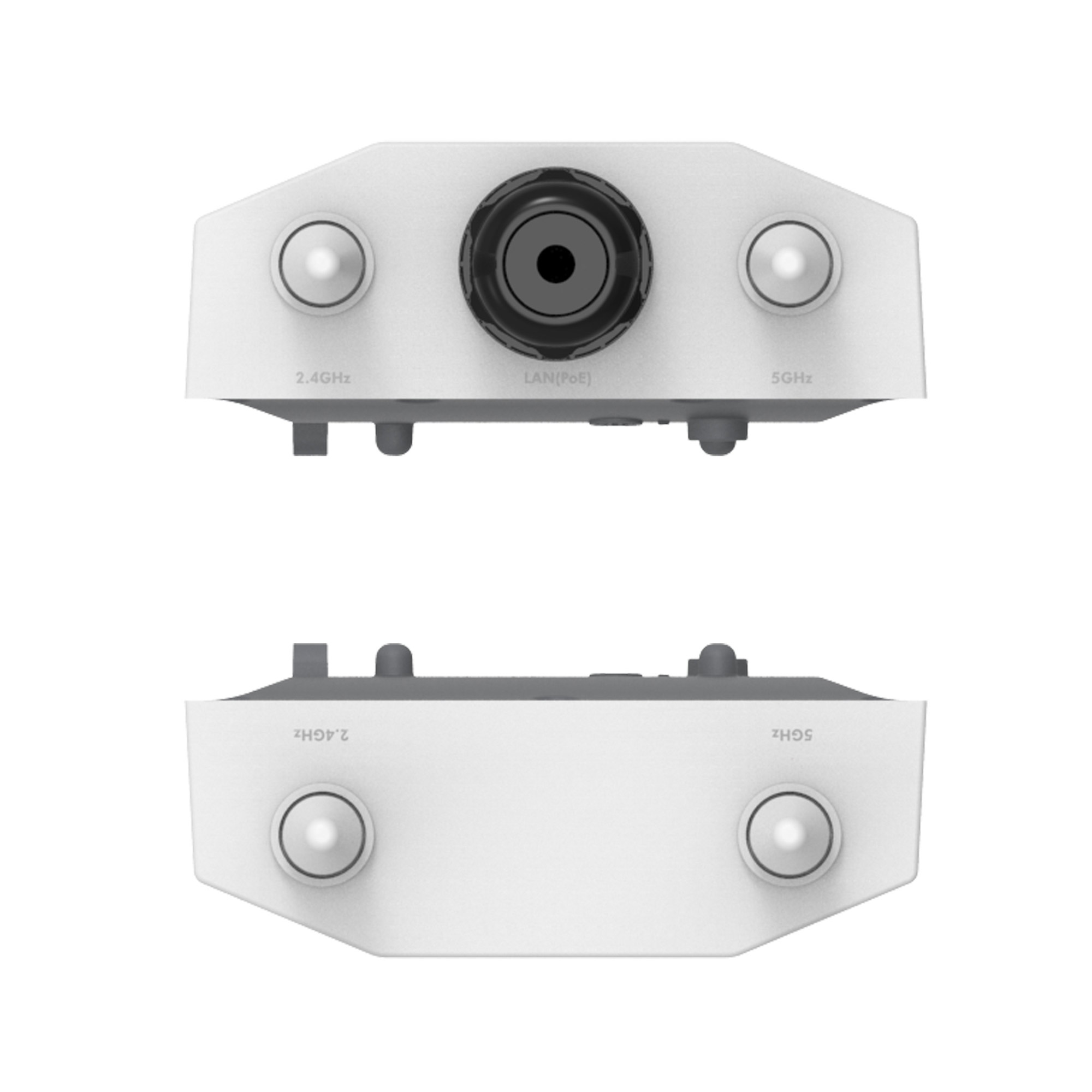

Physical Interface
1 x 10/100/1000/2500 BASE-T, RJ-45 Gigabit Ethernet Port

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
IEEE 802.11af/at Compliant Source
Power-over-Ethernet: Proprietary 48V to 54V PoE
IEEE 802.11e Compliant Source

Maximum Power Consumption
15.9W

Surge Protection
1KV

ESD Protection
Contact: 4KV
Air: 8 KV

Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
Access Point Mode (AP mode)
WDS Mode: (WDS AP mode, WDS Bridge mode, WDS Station mode)
Mesh Mode

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 25 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11AX wireless client device under the both 2.4G Hz and 5GHz radio.

MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11AX capable wireless client devices under 5GHz simultaneously.
Two (2) spatial streams Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11AX capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1201 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Management

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Management Features

Deployment Options
Stand-Alone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster)

Stand-Alone Management Features
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
Band Steering per SSID
Traffic Shaping per SSID/per user
VLAN Per SSID
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Users’ Default

Wireless Management Features (With ezMaster & Neutron Switch)
AP Auto Discovery & Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering Per SSID
Traffic Shaping Per SSID/User
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLAN Per SSID
Captive Portal Per SSID
Multi-Tenant Account
AP Traffic Log
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Schedule reboot

Control Features
Managed Mode (w/Neutron Switch/ezMaster)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS

Wireless Security
WPA3
WPA2 Enterprise (AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Environmental & Physical

Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Waterproof & Dustproof
IP67-Rated Enclosure

Device Dimensions & Weights

EWS850AP Device
Weight: 1.54 lbs. (0.7 kg)
Width: 4.07” (124 mm)
Length: 7.48” (190 mm)
Height: 2.07” (52.5 mm)

Packaging
Weight: 3.96 lbs. (1.8kg)
Width: 9.21" (234 mm)
Length: 11.18" (284 mm)
Height: 5.67" (144 mm)

Package Contents

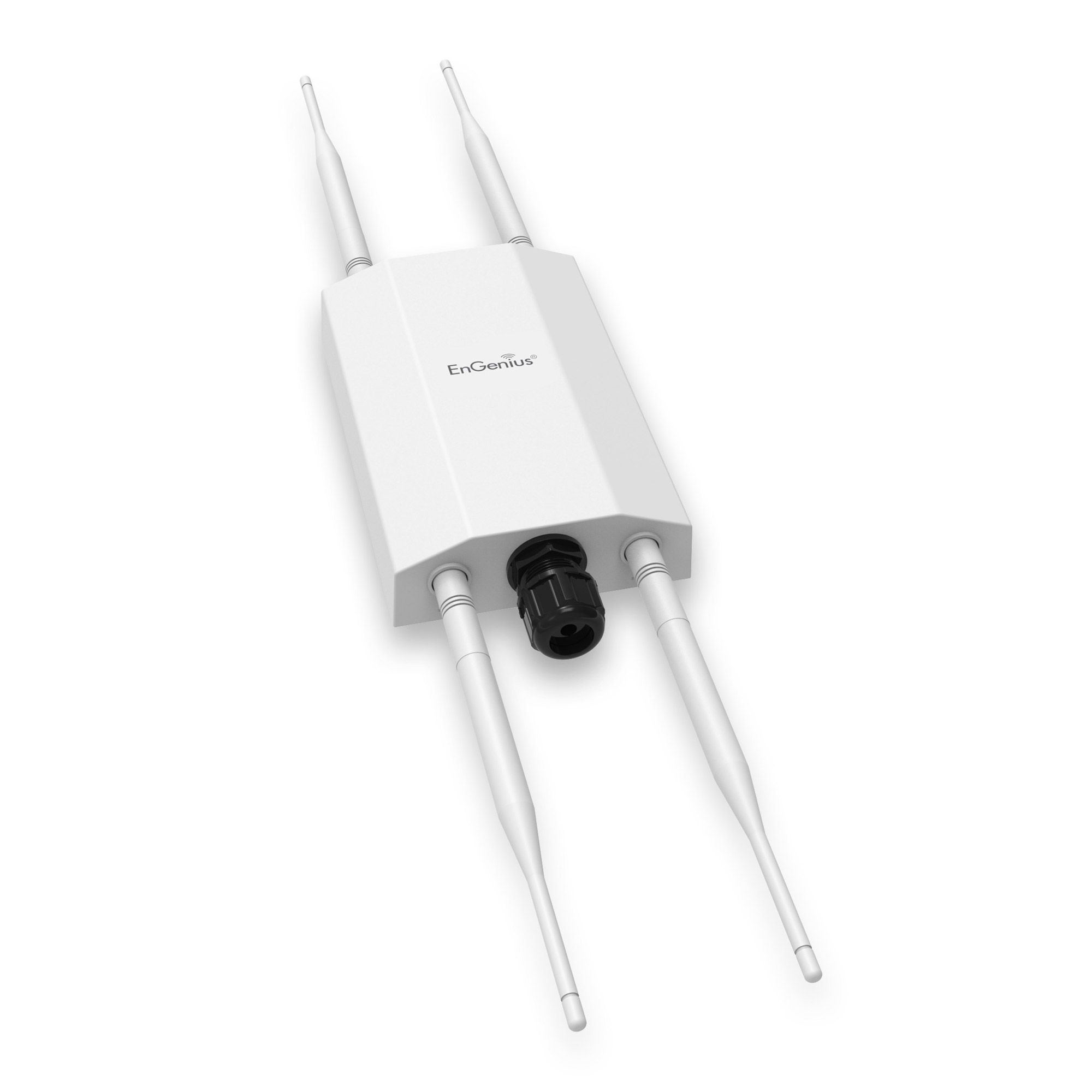

1 – EWS850AP Dual-Band AX1800 Outdoor Access Point
1 - PoE Adapter (EPA5006GR)
1 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
2 - 2.4GHz 5dBi SMA Antennas
2 - 5GHz 5dBi SMA Antennas
1 - Power Cord
1 - Quick Installation Guide

Certifications
FCC
CE
IC

Warranty
1 Year
