Cloud Managed 4x4x4 Indoor Tri-Band WiFi 7 Security Access Point

Technical Specifications

Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)

Processor
Qualcomm® Networking Pro 1220

Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
4 x 6 GHz: 5 dBi

Physical Interface

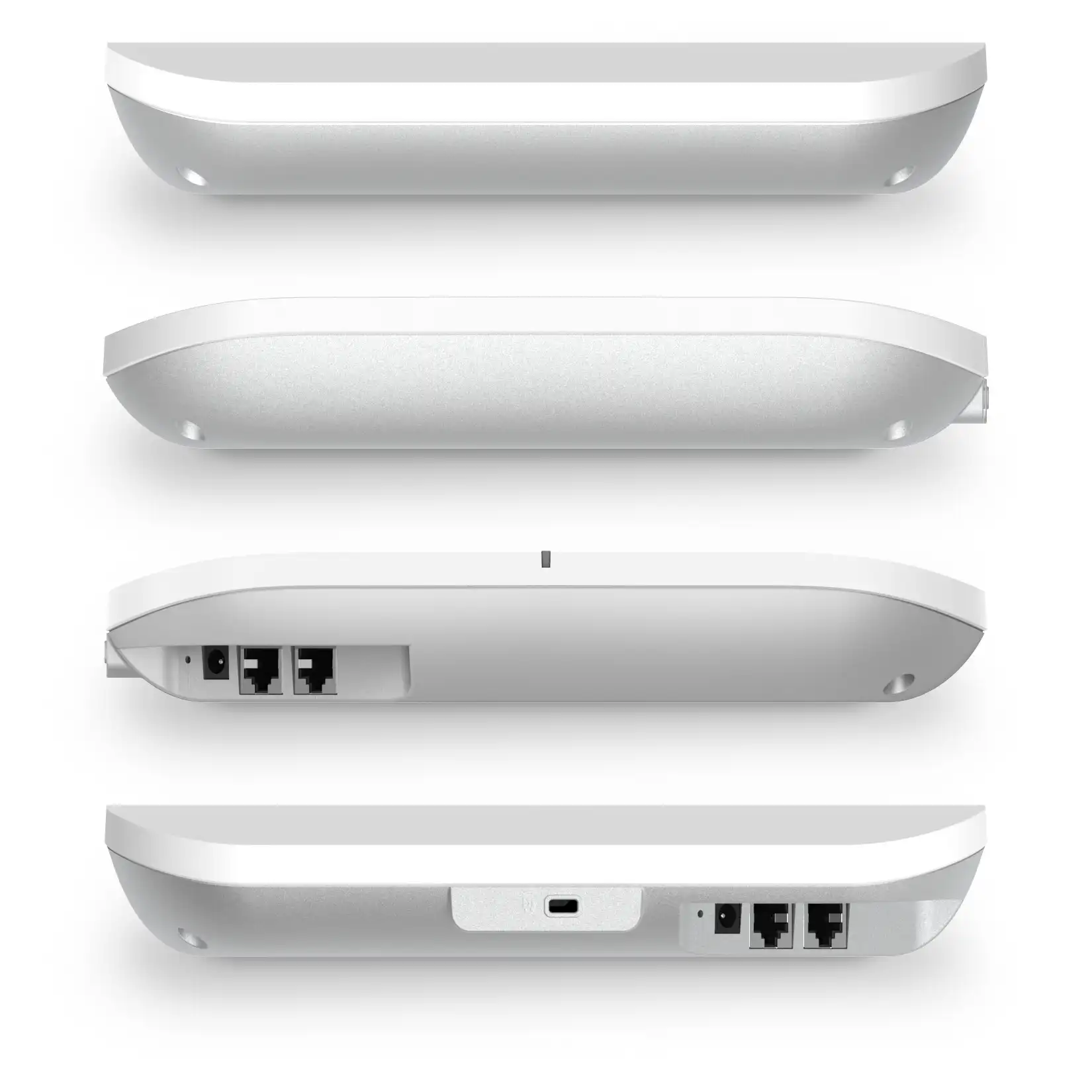

2 x 10/100/1000/2500/5000/10000 BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button

LED Indicators
1 x Multi-Color LED

Power Source
Power-over-Ethernet: 802.3bt Input
12VDC /3A Power Adapter (Not Included)
EPA5060XBT PoE++ Injector (Not Included)

Maximum Power Consumption
38W

Wireless & Radio Specifications

Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz

Operation Modes
AP, Mesh, Mesh AP

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz

Transmit Power
Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
4x4x4:4

SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 1,376 Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 11,529 Mbps wireless data rate with EHT320 bandwidth to a 4x4 wireless device under the 6GHz radio.

MU-MIMO
Four (4) spatial stream Multi-User (MU)-MIMO for up to 1,376Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 11,529 Mbps wireless data rate with EHT320 bandwidth to a 4x4 wireless device under the 6GHz radio simultaneously.

Supported Data Rates (Mbps):
802.11be:
6 GHZ: Max 11,600 (MCS0 to MSC13, NSS = 1 to 4)
5 GHz: Max 5,800 (MCS0 to MSC11, NSS = 1 to 4)
2.4 GHz: Max 1,440 (MCS0 to MCS11, NSS = 1 to 4)
802.11ax:
6 GHZ: 18 to 4,800 (MCS0 to MSC13, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11

Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 (6 GHz only) MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User
512 Per Radio

Management

Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
IEEE 802.11e compliant
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation

Environment & Physical

Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Protection Level
Surge Protection
L-L: 2KV, L-G: 4KV

ESD
Contact 4KV; Air: 8KV

Network Ethernet Ports
1x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data Input; RJ-45
1x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data & Power Output; RJ-45

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)

Device Dimensions & Weights

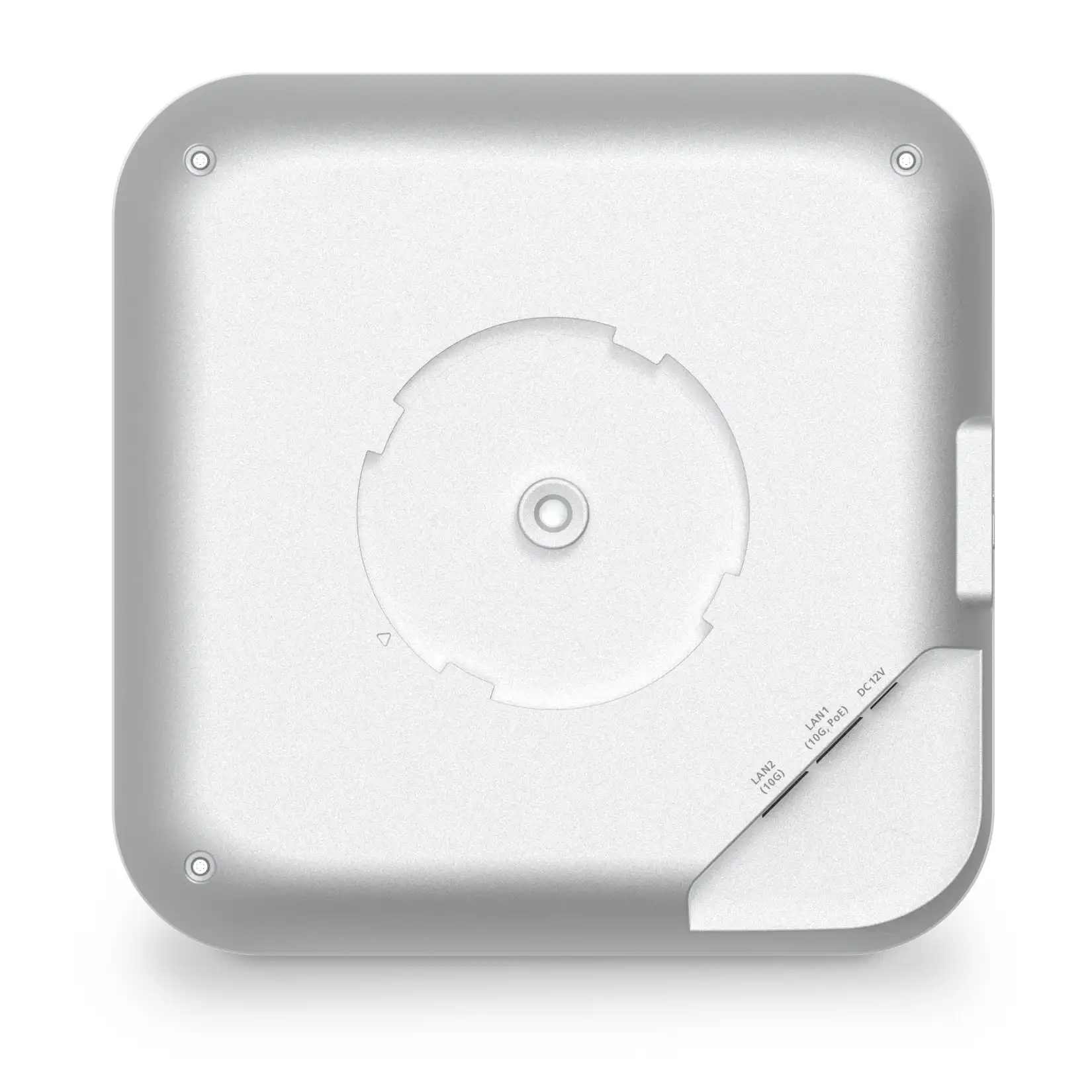

ECW536S Device
Weight: 2.79 lbs. (1270g)
Length: 9.06" (230 mm)
Width: 9.06" (230 mm)
Height: 1.56" (39.5 mm)

ECW536S Packaging
Weight: 3.63 lbs. (1646 g)
Length: 11.26" (286 mm)
Width: 10.91” (277 mm)
Height: 2.83" (72 mm)

Package Contents

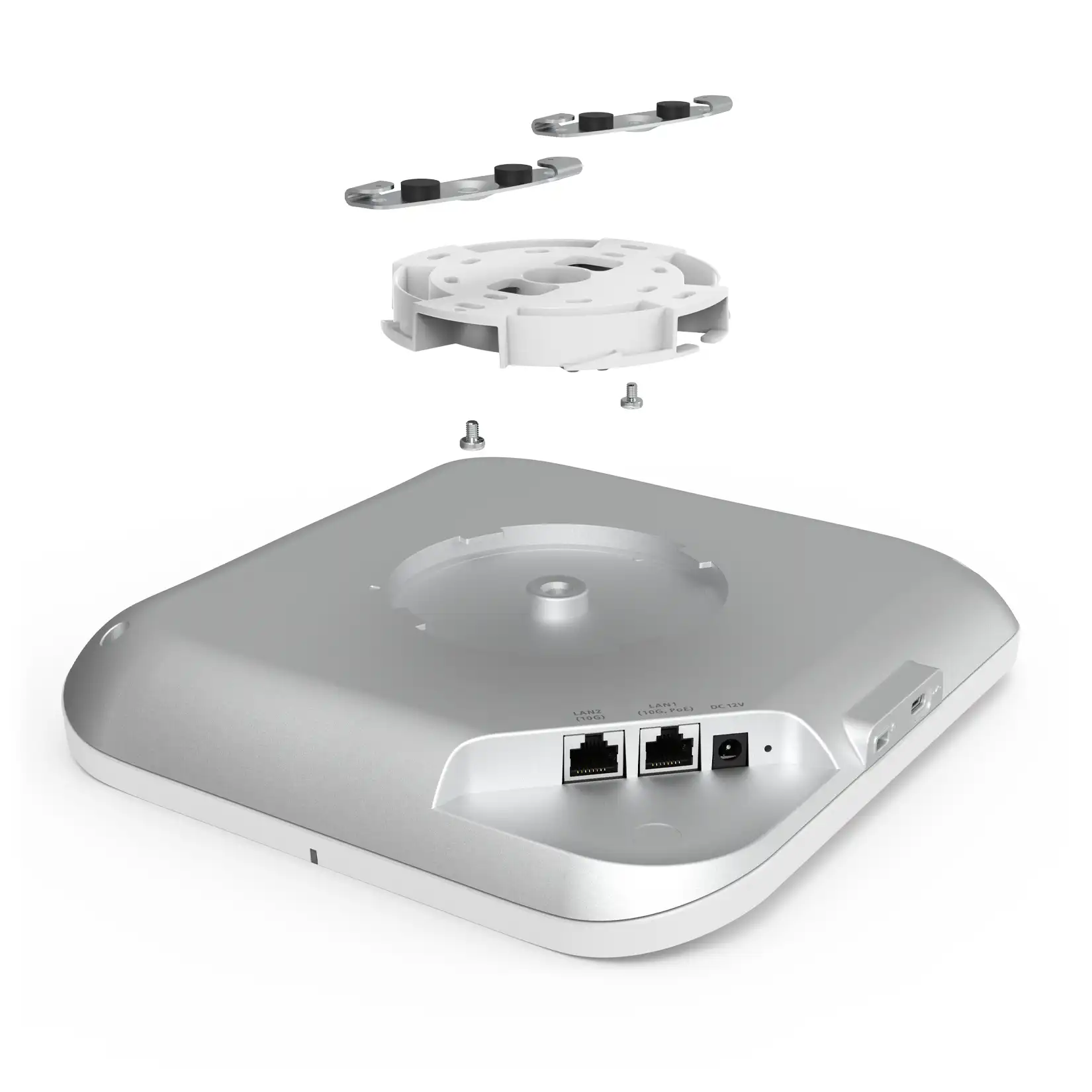

1 x ECW536S Cloud Managed Indoor Access Point
1 x Mount Base
1 x Ceiling and Wall Mount Screw Kits
1 x Quick Installation Guide

Certifications
FCC
CE
IC

Warranty:
5 Year
