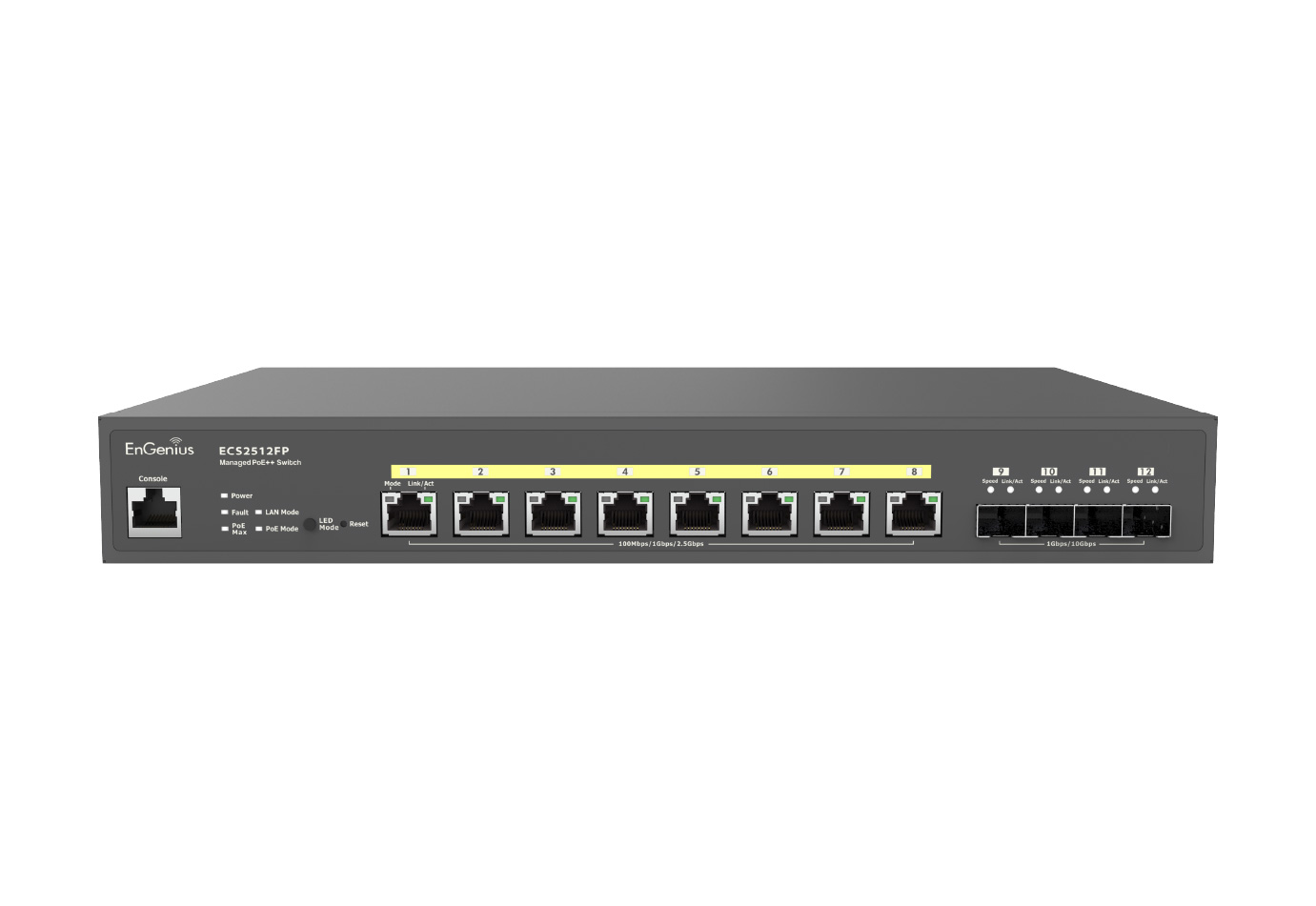

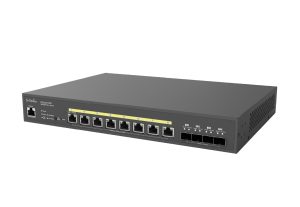

CloudSwitch MGPlus 8 Full PoE

Cloud Managed 8-Port 240W PoE++ Multi-Gigabit 2.5 Gb Switch with 4 x SFP+ Uplink Ports

ECS2512FP

Product Highlight

EnGenius Cloud Managed Layer 2+ Multi-Gigabit 2.5Gb Switch, ECS2512FP, provides SMBs with an easy-to-use and cost-effective network solution. With its 8-Port 2.5G PoE++ and 4-Port 10G SFP+ uplink with 240W budget, it ensures high-speed data transfer for bandwidth-intensive applications. With zero-touch provisioning and centralized cloud management, it simplifies network management and saves time.
  • 8 x 2.5G PoE++ Ports to unleash elevated speeds for NAS, workstations or WiFi 6 APs
  • 4 x 10G SFP+ (fiber) uplink ports to high-speed NAS and servers for a high-performance network
  • 8 x 802.3af/at/bt PoE++ ports with 240W power budget
  • Zero touch provisioning, centralized cloud management and visualized monitoring
  • Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
  • Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
  • Optimized for quality voice and video traffic with Voice-VLAN feature

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3bz 2.5G/5GBase-T Ethernet 802.3x Full-Duplex Flow Control

Network Port – Multi-Gigabit Ethernet Ports

8×100/1000/2500 Mbps Ports

Network Port – SFP+ Ports

4x SFP+ Ports

Switching Capacity

120Gbps

SDRAM

512MB

Flash Memory

128MB

FPoE Capable Ports

Ports 1-8 (802.3af/at/bt)

FTotal PoE Budget

240w

Power Source

100 to 240 VAC, 50/60Hz

Physical Interface

System Indicators

Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud Local Web GUI

MAC Address Table

16k

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

QoS Trust Mode

Cos/802.1p DSCP CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL IPv4/IPv6 Based ACL ACL Binding

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1w Rapid Spanning Tree 802.1S Rapid Spanning Tree Loopback Detection Multicast Filitering IGMP Snooping 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings/ IPv6 Settings IEEE 802. 3az Energy Efficeient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

Operating: 5% – 95%

Dimensions & Weight

Device Dimensions & Weights

Weight: 5.7Ibs (2.6 kg) Width: 9.05” (230 mm) Length: 12.99” (330 mm) Height: 1.73” (44 mm)”

Package Contents

1x Cloud Managed Gigabit Switch 1x Product Card 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit

Model Comparison

CloudSwitch MGPlus 8 Full PoE

CloudSwitch L2Plus 8 PoE

CloudSwitch L2Plus 8 Full PoE

ECS1528

CloudSwitch L2Plus 24 Full PoE

CloudSwitch L2Plus 48

CloudSwitch L2Plus 48 Full PoE

CloudSwitch MGPlus 8

CloudSwitch Aggregate 8XG

CloudSwitch Aggregate 8XG Full PoE

Model Number ECS2512FP ECS1008P ECS1112FP ECS1528FP ECS1552 ECS1552FP ECS2512 ECS5512 ECS5512FP
Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ports - 8 10 24 24 48 48 - - -
Multi-G Ports 8 x 2.5G - - - - - - 8 x 2.5G 8 x 10G 8 x 10G
SFP Ports - - 2 - - - - - - -
SFP+ Ports 4 - - 4 4 4 4 4 4 4
RJ45 Console Port Yes - Yes Yes Yes Yes Yes Yes Yes Yes
PoE Capable Port Ports 1 - 8 Ports 1 - 8 Ports 1 - 8 - Ports 1 - 24 - Ports 1 - 48 - - Ports 1 - 8
Power-over-Ethernet 802.3af/at/bt 802.3af 802.3af/at - 802.3af/at - 802.3af/at - - 802.3af/at/bt
Total PoE Budget 240W 55W 130W - 410W - 740W - - 420W
Form Factor 13”1U 9.45 (Desktop) 13”1U 19”1U 19”1U 19”1U 19”1U 13”1U 13”1U 13”1U
Switching Capacity 120 Gbps 16 Gbps 24 Gbps 128 Gbps 128 Gbps 176 Gbps 176 Gbps 120 Gbps 240 Gbps 240 Gbps
Packet Forwarding Rate - - - - - - - - - -
MAC Address Table Size 16K 8K 8K 16K 16K 32k 32K 16K 32K 32K
Continuous PoE Power - - - - - - - - - -
Dimensions 330 x 230 x 44 mm 240 x 105 x 27 mm 330 x 230 x 44 mm 440 x 200 x 44 mm 440 x 260 x 44 mm 440 x 260 x 44 mm 440 x 310 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 330 x 230 x 44 mm
Cloud Managed Mode Yes EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud Yes EnGenius Cloud EnGenius Cloud
On-premises Managed Yes Yes - - - - - Yes - -
Standalone Mode Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
