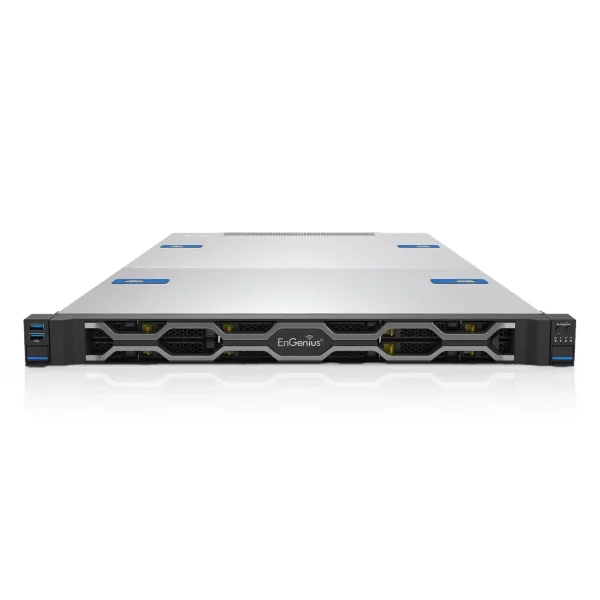

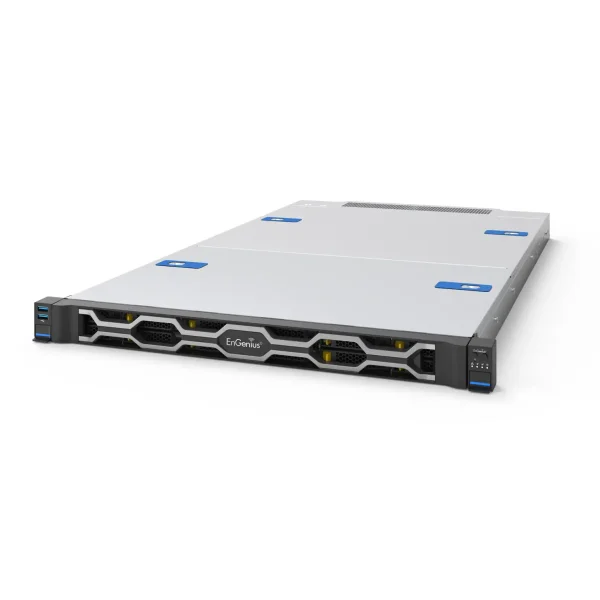

1U Data
Center Server
The EnGenius S11 is a 1U data center server that modernizes data center density with dual Intel Xeon 6 performance, OCP scalability, and centralized EDCC management for high-volume virtualization, databases, and private cloud infrastructures.
Enterprise Performance. Optimized For Density.
The S11 consolidates dual-socket Intel Xeon 6 performance, DC-MHS modularity, and PCIe Gen5 expandability into an ultra-compact 1U form factor ideal for local data centers, private cloud providers, and enterprise IT deployments.
OCP DC-MHS Modularity
Designed on open hardware standards to support scalable configurations and flexible interoperability across modern data center environments
AI & HPC Deployment-Ready
Powered by dual Intel Xeon 6 processors with PCIe Gen5 expansion to support the latest AI infrastructures and high-density workloads.
License-Free Central Management
EDCC provides a comprehensive management platform for remote monitoring, diagnostics, and centralized control without recurring software licensing fees.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Built for Next-Gen AI Workloads!
Enterprise servers engineered for performance and built to scale. Schedule a demo today to learn more.
Specifications
Technical
Form Factor
1U Rackmount
Processor
Intel Xeon 6 (6500/6700 Series)
P Core: Up to 144
E Core: Up to 86
Dual processor, TDP up to 350W
Socket Type
2 x LGA4710
PCH Chipset
No
Memory
Slot Count: 32 DIMM slots (16 DIMMs per CPU)
DDR5 ECC RDIMM
6400MT/s 1DPC
5200MT/s 2DPC
Capacity: 8TB with 256 GB DDR5
Drive Bays

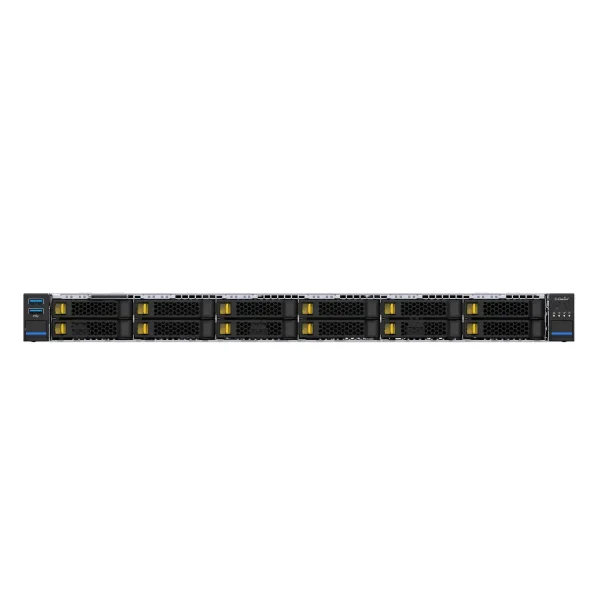

Up to 12x 2.5”NVMe PCIe Gen5 Hot-Swap drive bays
Intel VROC Key Header
System Cooling
Air Cooling
8 x Smart FAN (40 x 40 x 56 mm)
Expansion Slot
Rear:
1x PCIe Gen5 x8 HHHL
1x PCIe Gen5 x16 FHHL
2x OCP3.0 x8 SFF
I/O Port
Front:
2x USB3.0 Type A

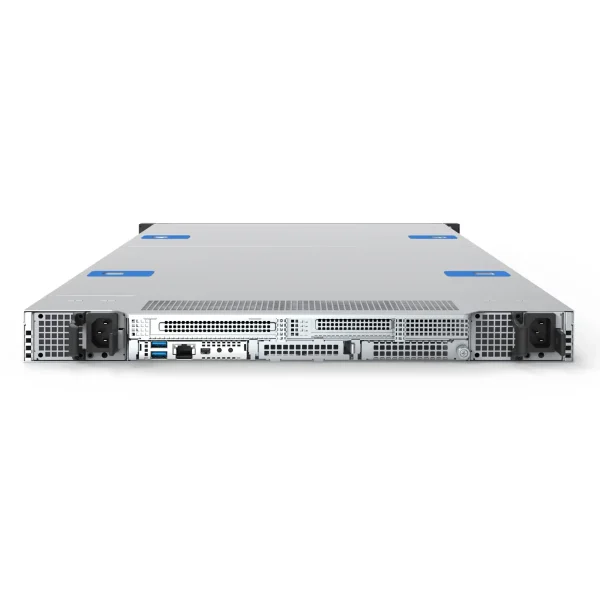

Rear:
1x USB3.0 Type A for BMC
1x Mini Display for BMC
1x USB3.0 Console for BMC
1x MGNT GE for BMC
Power Supply
M-CRPS
2000W
80 Plus Titanium Level (96%)
2x Hot Swap Redundant
AC Input 110V – 240V
Security
Trusted Platform Module(TPM) 2.0
Platform Firmware Resilience (PFR) 4.0
Intrusion Detection (Open Chassis Cover)
Chassis
Dimension (W x D x H):438 x 790 x 44 (mm)
Weight: around 18KG
Environment
Operating Temperature: 10°C to 35°C
Storage Temperature: -20°C ~60°C
Relative Humidity: 10%~90% (Non-Condensing)
System Management
IPMI 2.0 Management
Redfish Management
HTTPS Web Management
IPv4/ IPv6 Address
Dashboard
Hardware Sensor Monitor
KVM console
Serial over LAN
Media Redirection Settings
Event Log & Alert (SMTP/ SNMP/Syslog)
LDAP/ Windows AD/ Radius
User Account Management
System Firewall (IP Access Control)
Hardware Root of trust (RoT)
Backup & Restore Configuration
Protocol support: SNMP, SMTP, DHCP, NTP, DNS, Dynamic DNS
Intel Platform Feature: Platform Firmware Resilience (PFR), Autonomous Crash Dump (ACD), At-Scale Debug (ASD)
Central Management
EnGenius Data Center Controller
Configure Your EnGenius Server
Select a chassis, then configure processors, memory, storage, networking, and included server components.
*Barebone pricing only. Contact EnGenius for component and complete system pricing.
Begin Configuration
Enter your business information to access the Server Configuration Planner.
Available Components
Configuration Summary
Engineered for Performance.
Designed for Scale.
Explore how the EnGenius S Server Series is purpose-built to power the latest cloud AI and LLM workloads with DC-MHS architecture for simplified interoperability and scalability.
