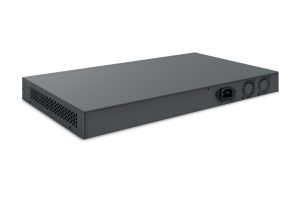

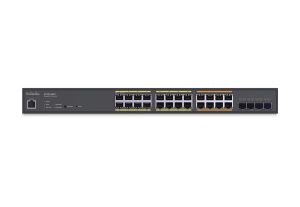

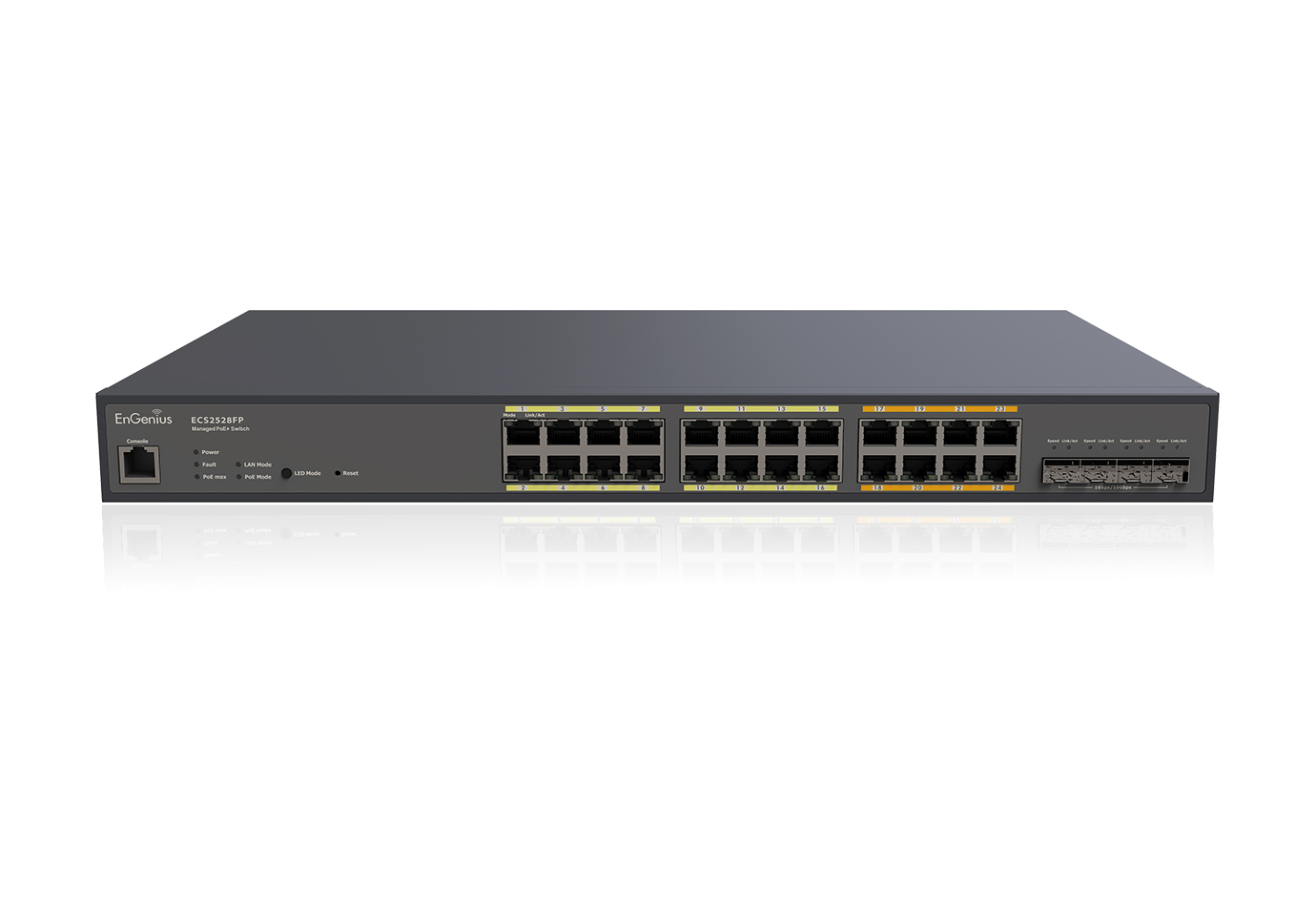

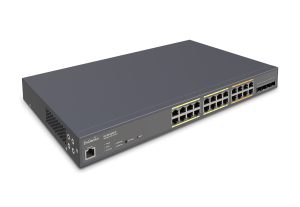

CloudSwitch MGPlus 24 Full PoE

雲端管理型 24埠 410W 2.5Gb PoE+ 及 4埠 SFP+ Multi-Gig 網路交換器

ECS2528FP

Product Highlight

EnGenius 網路交換器 ECS2528FP 是一款專為中小型企業設計的 Layer 2+ Multi-Gigabit 2.5Gb 網路交換器,它結合了易於操作和成本效益的特點。這款網路交換器配備了 16 個Gigabit和 8 個 2.5G 的 PoE+ 埠,以及 4 個 10G 的 SFP+ 上行連接埠,總供電量達 410W,保障高速數據傳輸,滿足頻寬密集型應用的需求。其雲端管理和零接觸配置功能,讓網路管理變得更加簡單,節省時間。

  • 8 個 2.5G PoE+ 埠,能為 NAS、工作站或 Wi-Fi 6 無線基地台提供更快的速度
  • 16 個Gigabit PoE+ 埠,適合連接各種網路設備,如 IP 攝影機、VoIP 電話和工作站等
  • 4 個 10G 的 SFP+ 光纖上行連接埠,為高速 NAS 和伺服器提供網路連接,確保高效運作
  • 24 個 802.3af/at 標準的 PoE+ 埠,提供高達 410W 的總供電量
  • 實現雲端集中管理和可視化監控,簡化網路操作
  • 靈活的管理選擇,支持 EnGenius 雲端或獨立運作模式
  • 全面的安全性能,包括連結埠和 MAC 地址控制列表、防止 DDoS 攻擊、802.1X 和 RADIUS 認證等
  • 針對語音和視訊流量進行優化,確保通訊品質的 Voice-VLAN 功能
  • PoE 延伸模式可將網路佈建的距離擴展至 250 公尺
  • PD 防護功能可即時監測並自動重啟失效的攝影機 PoE 電源
  • 在網路交換器升級期間持續穩定供應 PoE 電源,確保攝影機正常運作

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

16×10/100/1000 Mbps Ports
8×100/1000/2500 Mbps Ports
4x SFP+ Ports

Switching Capacity

152Gbps

SDRAM

512MB

Flash Memory

128MB

PoE Capable Ports

1-24

Total PoE Budget

410w

Power Source

100 ~ 240VAC, 50-60Hz

Physical Interface

System Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud
Local Web GUI

MAC Address Table

16K

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported/

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS1528FP Device

Weight: 4.7 Kg
Width: 260 mm
Length: 440 mm
Height: 44 mm

Package Contents

1x ECS Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

CloudSwitch MGPlus 24 Full PoE

CloudSwitch L2Plus 8 PoE

CloudSwitch MGPlus 48 Full PoE

CloudSwitch L2Plus 48 PoE

CloudSwitch L2Plus 24 PoE

CloudSwitch L2Plus 24 Full PoE

CloudSwitch L2Plus 8 Full PoE

CloudSwitch L2Plus 48 Full PoE

Model Number ECS2528FP ECS1008P ECS2552FP ECS1552P ECS1528P ECS1528FP ECS1112FP ECS1552FP
交換器等級 Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
千兆(Gigabit)連接埠 16 8 32 48 24 24 10 48
多兆(Multi-G)連接埠 8 x 2.5G - 16 x 2.5G - - - - -
SFP光纖連接埠 - - - - - - 2 x 1G -
SFP+光纖連接埠 4 - 4 4 4 4 - 4
RJ45網管介面連接埠 Yes - Yes Yes Yes Yes Yes Yes
PoE供電連接埠 Ports 1 - 24 Ports 1-8 Ports 1 - 48 Ports 1-48 Ports 1-24 Ports 1 - 24 Ports 1-8 Ports 1-48
PoE供電標準 802.3af/at 802.3af/at 802.3af/at 802.3af/at 802.3af/at 802.3af/at 802.3af/at 802.3af/at
PoE總功率預算 410W 55W 740W 410W 240W 410W 130W 740W
安裝形式 19”1U 9.45" (Desktop) 19”1U 19" 1U 19" 1U 19” 1U 13” 1U 19” 1U
交換能力 152 Gbps 16 Gbps 224 Gbps 176 Gbps 128 Gbps 128 Gbps 24Gbps 176 Gbps
Packet Forwarding Rate 113.10 Mpps 11.904Mpps 166.67 Mpps 130.95Mpps 95.23Mpps 95.23Mpps 17.856Mpps 130.95Mpps
MAC地址大小 16K 8k 32K 32K 16k 16k 8k 32K
Packet Buffer Memory 1.5MB 512KB 2MB 2MB 1.5MB 1.5MB 512KB 2MB
Full load Power consumption 499.85 Watts 62.05 Watts 913 Watts 476.3 Watts 297.6 Watts 500.46 Watts 152.8 Watts 885 Watts
Continuous PoE Power Yes Yes Yes Yes Yes Yes Yes Yes
尺寸 440 x 260 x 44 mm 240 x 105 x 27 mm 440 x 310 x 44 mm 440 x 310 x 44 mm 440 x 260 x 44 mm 440 x 260 x 44 mm 330 x 230 x 44 mm 440 x 310 x 44 mm
雲端管理模式 Yes Yes Yes Yes Yes Yes Yes Yes
本地管理模式 Yes Yes Yes Yes Yes Yes Yes Yes
單機運作模式 Yes Yes Yes Yes Yes Yes Yes Yes
