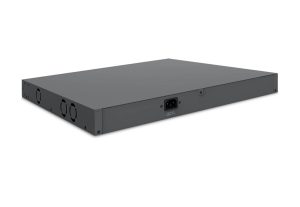

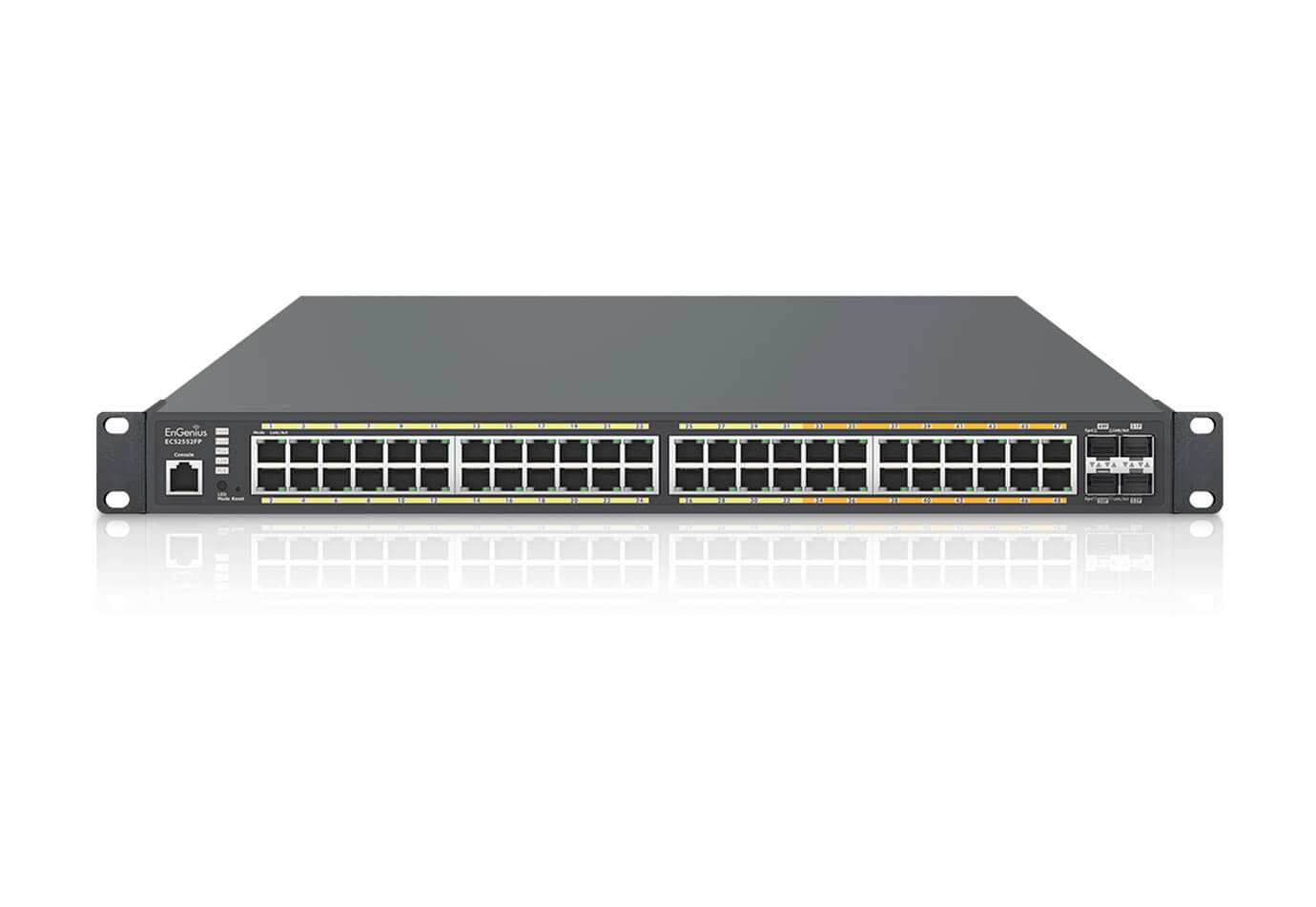

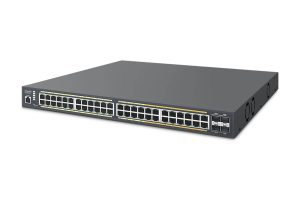

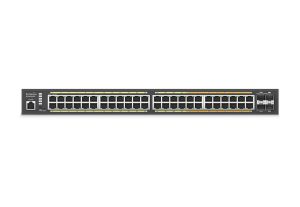

CloudSwitch MGPlus 48 Full PoE

雲端管理型 48埠 740W PoE 網路交換器

ECS2552FP

Product Highlight

EnGenius 雲端管理型 Layer 2+ Multi-Gigabit 2.5Gb 交換器 ECS2552FP 為中小企業提供易於使用且具成本效益的網路解決方案。配備 32 個 Gigabit PoE+ 埠、16 個 2.5G PoE+ 埠，以及 4 個 10G SFP+ 上行埠，並具備 740W PoE 預算，可確保高頻寬應用的高速資料傳輸。支援零接觸部署和集中式雲端管理，使網路管理更簡單、高效，節省時間與人力成本。

  • 16 個 2.5G PoE+ 埠，可提升 NAS、工作站或 WiFi 6 AP 的連線速度
  • 32 個 Gigabit PoE+ 埠，適用於 IP 攝影機、VoIP 電話、工作站等各類網路設備
  • 4 個 10G SFP+ 上行埠，連接高速 NAS 和伺服器，打造高效能網路
  • 48個 802.3af/at PoE+ 埠，具備 740W PoE 預算
  • 支援零接觸部署、集中式雲端管理及可視化監控
  • 混合雲交換器，提供 EnGenius Cloud 或獨立運作等靈活管理選項
  • 強大安全性，支援基於埠 / MAC 的 ACL 風暴控制、DHCP Snooping、DoS 攻擊防護、802.1X 及 RADIUS 認證等功能
  • 語音 VLAN功能，優化語音與視訊流量品質
  • PoE 延伸模式，可將 PoE 乙太網路佈線距離延長至 250 公尺
  • PD 自動修復機制，即時偵測並自動重啟故障攝影機的 PoE 電源

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

32×10/100/1000 Mbps Ports
16×100/1000/2500 Mbps Ports
4x SFP+ Ports

Switching Capacity

224 Gbps

SDRAM

512 MB

Flash Memory

128 MB

PoE Capable Ports

1-48

Total PoE Budget

740W

Power Source

100 ~ 240VAC, 50-60Hz

Physical Interface

System Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud
Local Web GUI

MAC Address Table

32K

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported/

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS1552FP Device

Weight: 5.9Kg
Width: 310mm
Length: 440mm
Height: 44mm

Package Contents

1x ECS Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

CloudSwitch MGPlus 48 Full PoE

CloudSwitch MGPlus 24 Full PoE

CloudSwitch L2Plus 8 PoE

CloudSwitch L2Plus 8 Full PoE

CloudSwitch L2Plus 24

CloudSwitch L2Plus 24 PoE

CloudSwitch L2Plus 24 Full PoE

CloudSwitch L2Plus 48

CloudSwitch L2Plus 48 Full PoE

Model Number ECS2552FP ECS2528FP ECS1008P ECS1112FP ECS1528T ECS1528P ECS1528FP ECS1552 ECS1552FP
交換器等級 Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
千兆(Gigabit)連接埠 32 16 8 10 24 24 24 48 48
多兆(Multi-G)連接埠 16 x 2.5G 8 x 2.5G - - - - - - -
SFP光纖連接埠 - - - 2 x 1G - - - - -
SFP+光纖連接埠 4 4 - - 4 4 4 4 4
RJ45網管介面連接埠 Yes Yes - Yes Yes Yes Yes Yes Yes
PoE供電連接埠 Ports 1 - 48 Ports 1 - 24 Ports 1-8 Ports 1-8 - Ports 1-24 Ports 1 - 24 - Ports 1-48
PoE供電標準 802.3af/at 802.3af/at 802.3af/at 802.3af/at - 802.3af/at 802.3af/at - 802.3af/at
PoE總功率預算 740W 410W 55W 130W - 240W 410W - 740W
安裝形式 19”1U 19”1U 9.45" (Desktop) 13” 1U 13"1U 19" 1U 19” 1U 19"1U 19” 1U
交換能力 224 Gbps 152 Gbps 16 Gbps 24Gbps 128 Gbps 128 Gbps 128 Gbps 176 Gbps 176 Gbps
Packet Forwarding Rate 166.67 Mpps 113.10 Mpps 11.904Mpps 17.856Mpps 95.23Mpps 95.23Mpps 95.23Mpps 130.95Mpps 130.95Mpps
MAC地址大小 32K 16K 8k 8k 16K 16k 16k 32K 32K
Packet Buffer Memory 2MB 1.5MB 512KB 512KB 1.5MB 1.5MB 1.5MB 2MB 2MB
Full load Power consumption 913 Watts 499.85 Watts 62.05 Watts 152.8 Watts 24.41 Watts 297.6 Watts 500.46 Watts 43.92 Watts 885 Watts
PD Lifeguard - - - - - - - - -
Continuous PoE Power Yes Yes Yes Yes - Yes Yes Yes Yes
尺寸 440 x 310 x 44 mm 440 x 260 x 44 mm 240 x 105 x 27 mm 330 x 230 x 44 mm 330 x 230 x 44 mm 440 x 260 x 44 mm 440 x 260 x 44 mm 440 x 260 x 44 mm 440 x 310 x 44 mm
雲端管理模式 Yes Yes Yes Yes Yes Yes Yes Yes Yes
本地管理模式 Yes Yes Yes Yes Yes Yes Yes Yes Yes
單機運作模式 Yes Yes Yes Yes Yes Yes Yes Yes Yes
