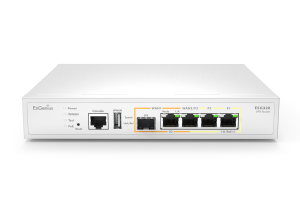

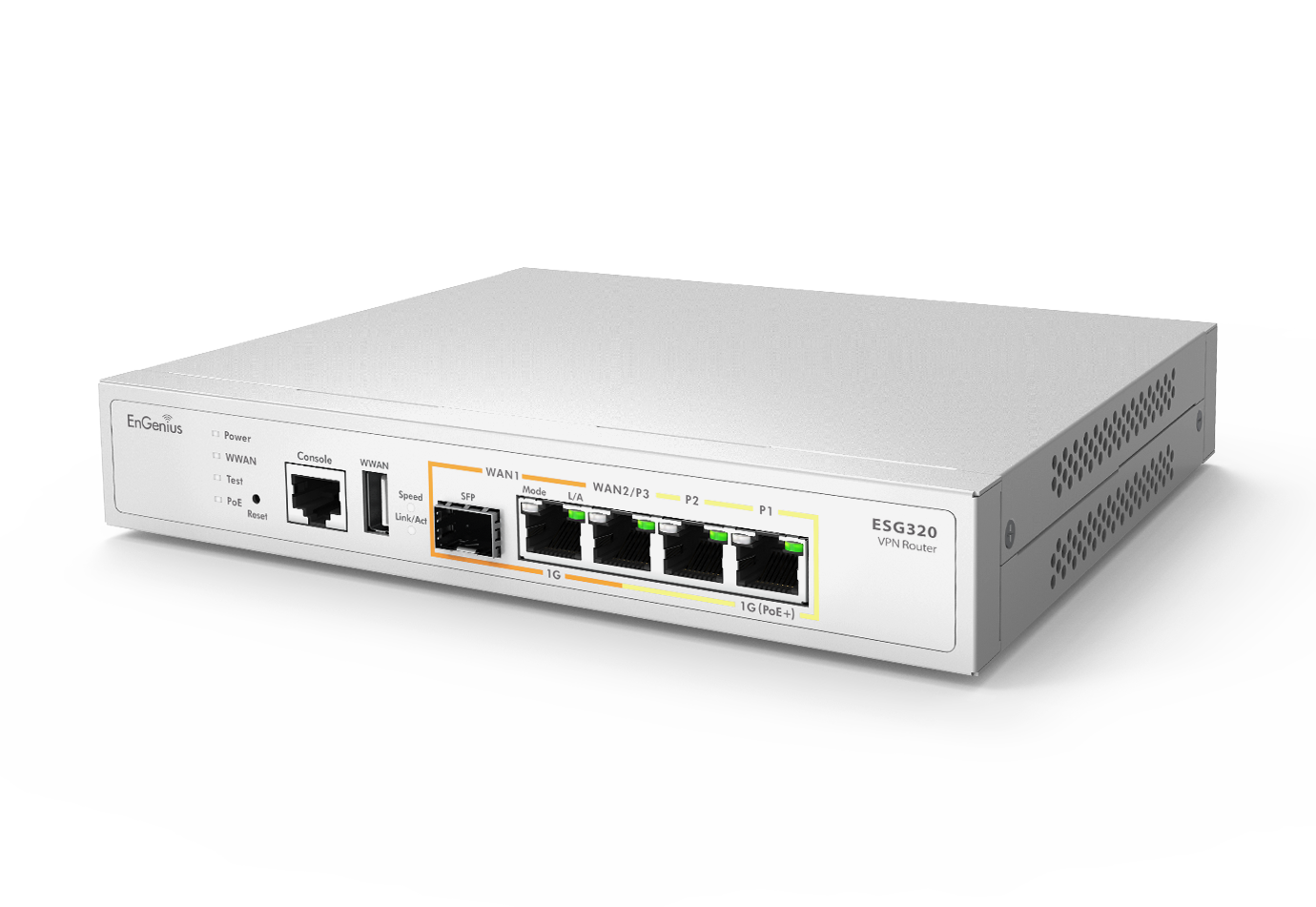

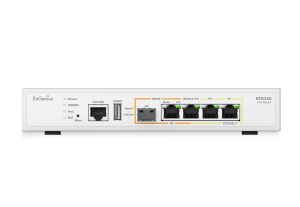

Gateway3 4G 1SFP

雲端管理型 VPN 防火牆，配備 4 個 Gigabit 乙太網路埠（1 個 PoE+）及 1 個 SFP 插槽

ESG320

雲端管理型VPN防火牆 VPN防火牆功能介紹

Product Highlight

EnGenius ESG320 雲端管理型 VPN 防火牆專為注重成本的中小型企業設計，提供負載平衡、雙 WAN 和安全的站對站 VPN 等進階功能。無縫整合 EnGenius 雲端平台，簡化配置並可隨時隨地提供集中管理。此高性能解決方案結合強大的安全性、卓越的連接性及隨業務需求成長的彈性，提供卓越的價值。

簡單且統一的雲端管理，適用於各規模企業

直覺式集中設備可視化，隨時隨地掌控

雙 GE WAN 和雙 GE LAN 提供最大效能

雙核心 2.1 GHz 處理器，提供更快速度與更高效能

內建負載平衡與雙 WAN 及行動網路故障轉移保護

PoE+ 埠可為 Wi-Fi 基地台、IP 攝影機或 IP 電話供電

具狀態檢查功能的防火牆，提供高效過濾與檢測以提升安全性

高速且安全的站對站 VPN 和用戶端 VPN

快速自我修復的 VPN 和 VLAN 設置，簡化部署流程

免接觸系統維護與自動更新

多種直通與路由選項

支持外部 Radius 的認證頁面

整合 CloudBrink 服務，提供零信任網路存取（ZTNA）解決方案

支援高可用性（HA）機制與自動故障切換（Failover），確保網路持續穩定運作

內建 IDS／IPS 入侵偵測與防禦機制，即時偵測威脅並主動防範網路攻擊

Hardware

CPU Processor

Dual Core

Operating Frequency

2.1GHz

Memory

4GB

Flash Storage

8GB

RJ-45 Interface

4x1G

SFP Interface

1xSFP

PoE Ports

1

PoE Standard

802.3 af/at

Total PoE Budget

30W

I/O Interfaces

1 x RJ-45 console
1 x USB 3.0

Mounting Method

Wall mount

Security

TPM

2

Perfomance & Capacity

Firewall (SPI throughput)

3 Gbps

VPN throughput

900 M

Max. Concurrent VPN Tunnels

100

Max. Concurrent VPN Users

50

Max. TCP Concurrent Sessions

1,000,000

Max VLAN

16

IPS Throughput

650 M

Firewall

Firewall Features

Stateful Packet Inspection
Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services
Layer 7 Application Firewall

VPN

Site-to-Site VPN

Mesh VPN / Hub-and-Spoke

Encryption

3DES, AES (256/192/128-bit)

Authentication

MD5, SHA1, SHA2 (256-bit)

Key Management

IKEv1 (x-auth, mode-config)
IKEv2 (EAP, configuration payload)

VPN Features

Site-to-Site VPN
Client VPN (IPsec / SecuPoint SSL)
Policy-based VPN
IPSec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal

Networking

Operation mode

Routed / Passthrough

Multiple WANs

Dual

Bandwidth Limit

Per client / Per Interface

Traffic Load Balancing

WAN load balancing with WRR

Networking Features

Static Route
Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Dynamic Routing
Bandwidth Limit
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
Policy Based Routing
Application Bandwidth Control
High Availability

Security Service

CloudBrink
IDS/IPS

Environmental & Physical

Power

54V / 1.2A

Operation Temperature

0°C to 40°C

Humidity (non-condensing)

5 to 95% non-condensing

Dimensions & Weight

Dimensions

Weight: 2.14 lbs. (0.97k g)
Length: 8.27” (210 mm)
Width: 7.07” (179.5 mm)
Height: 1.38” (35 mm)

Package Contents

Power adapter
Power cord
RJ-45 Console Cable
Wall Mount Kit
Product Card

Regulatory Compliance

FCC Part 15 (Class B)
IC
CE EMC
CB
UL

Model Comparison

	Gateway3 4G 1SFP	Gateway5 4mG	Gateway6 4mG	Gateway6 8mG 2SFP+
Model Number	ESG320	ESG510	ESG610	ESG620
中央處理器	雙核心	四核心	四核心	四核心
運行頻率	2.1GHz	1.6GHz	2.2GHz	2.2GHz
記憶體	4GB	4GB	8GB (v1);4GB (v2)	8GB (v1);4GB (v2)
快閃儲存	8GB	8GB	8GB	16GB
RJ-45 網路埠	4 x 1G	4 x 2.5G	4 x 2.5G	8 x 2.5G
SFP 光纖模組	1 x SFP	-	-	2 x SFP+
PoE供電埠	1	1	1	4
PoE供電標準	af/at	802.3af/at	802.3af/at	802.3af/at
PoE總功率預算	30W	30W	30W	120W
安裝方式	Wall mount	Wall mount	Wall mount	Rack mount
防火牆(SPI 傳輸能力)	3G	4G	6.8G	7.7G
VPN傳輸能力	900 M	970M	1.5G	1.5G
最多同時VPN連線	100	200	300	300
IPS Throughput	650 M	700 M	1.2G	1.2G
