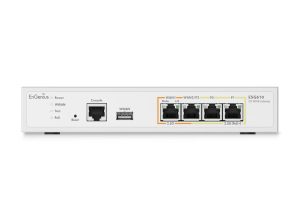

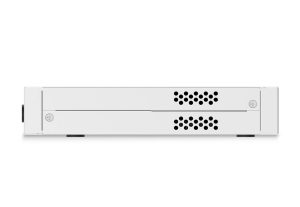

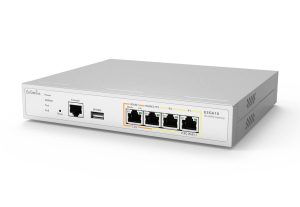

Gateway6 4mG
EnGenius ESG610 VPN 防火牆提供具有高級功能的高性能網路解決方案，包括負載平衡、雙 WAN 和站點到站點 VPN。該產品通過EnGenius Cloud提供統一管理，可以在任何地方輕鬆配置和管理。它為尋求增強網路性能和安全性的企業提供全面的點對點解決方案。
Quad Core
2.2GHz
8GB (v1)
4GB (v2)
8GB
4×2.5G
–
1
802.3 af/at
30W
1 x RJ-45 console/1 x USB 3.0
Wall mount
TPM
6.8G*
1.5G*
300*
380*
1,250,000 (v1)
1,000,000 (v2)
160*
1.2G*
Stateful Packet Inspection
Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services
Layer 7 Application Firewall
Mesh VPN/ Hub-and-Spoke
3DES, AES (256/192/128-bit)
MD5, SHA1, SHA2 (256-bit)
IKEv1 (x-auth, mode-config),
IKEv2 (EAP, configuration payload)
Site-to-Site VPN
Client VPN(IPsec/SecuPoint SSL)
Policy-based VPN
IPSec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal
Routed / Passthrough
Dual
Per client/ Per Interface
WAN load balancing with WRR
Static Route
Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Dynamic Routing
Bandwidth Limit
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
Policy Based Routing
Application Bandwidth Control
High Availability
External Syslog Server Support
CloudBrink
IDS/IPS
54V/1.2A
0°C to 40°C
5 to 95% non-condensing
Weight: 2.31 lbs. (1.05k g)
Length: 8.27” (210 mm)
Width: 7.07” (179.5 mm)
Height: 1.38” (35 mm)
Power adapter
Power cord
RJ-45 Console Cable
Wall Mount Kit
Product Card
FCC Part 15 (Class B)
IC
CE EMC
CB
UL
Gateway6 4mG |
Gateway3 4G 1SFP |
Gateway5 4mG |
Gateway6 8mG 2SFP+ |
|
|---|---|---|---|---|
| Model Number | ESG610 | ESG320 | ESG510 | ESG620 |
| 中央處理器 | 四核心 | 雙核心 | 四核心 | 四核心 |
| 運行頻率 | 2.2GHz | 2.1GHz | 1.6GHz | 2.2GHz |
| 記憶體 | 8GB (v1);4GB (v2) | 4GB | 4GB | 8GB (v1);4GB (v2) |
| 快閃儲存 | 8GB | 8GB | 8GB | 16GB |
| RJ-45 網路埠 | 4 x 2.5G | 4 x 1G | 4 x 2.5G | 8 x 2.5G |
| SFP 光纖模組 | - | 1 x SFP | - | 2 x SFP+ |
| PoE供電埠 | 1 | 1 | 1 | 4 |
| PoE供電標準 | 802.3af/at | af/at | 802.3af/at | 802.3af/at |
| PoE總功率預算 | 30W | 30W | 30W | 120W |
| 安裝方式 | Wall mount | Wall mount | Wall mount | Rack mount |
| 防火牆(SPI 傳輸能力) | 6.8G | 3G | 4G | 9.5G* |
| VPN傳輸能力 | 1.5G | 900 M | 970M | 1.7G* |
| 最多同時VPN連線 | 300 | 100 | 200 | 300 |
| IPS Throughput | 1.2G | 650 M | 700 M | 1.2G |
|
