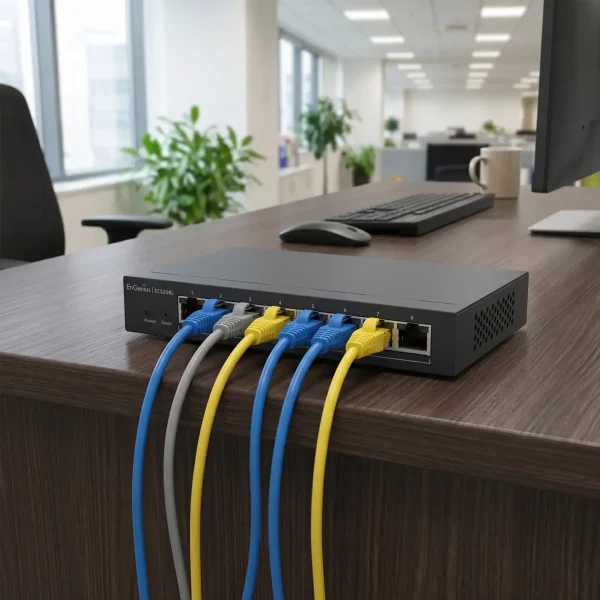

8-Port Non-PoE
Cloud Lite Switch
The EnGenius ECS2510 multi-gigabit cloud-managed switch delivers high-speed 2.5GbE connectivity, advanced Layer 2+ features, and centralized management for business environments.
Faster Connectivity for Modern Business
The EnGenius ECS208L provides reliable 2.5GbE switching, advanced Layer 2+ functionality, and centralized cloud visibility for growing business networks.
8 x Multi-Gigabit Ports with 10G Fiber
Support bandwidth-intensive devices with faster wired network performance.
Full-Featured Layer 2+ Switching
Enhance network performance, security, and scalability with advanced traffic management and segmentation features.
Flexible Management, Simplified
Manage switches with EnGenius Cloud, Private Cloud, Standalone Mode, or remotely via GUI and CLI.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Port Standards
802.3u 100Base-T Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports (Copper Ports)
8 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports
Switching Capacity
40 Gbps
Flash Memory
32 MB
Power Source
100 ~ 240VAC, 50-60Hz
Performance & Capacity
MAC Address Table
4K
Jumbo Frame
12K
Multicast Group
Max. 8 groups
Switch Features
QoS-Number of Priority
Queues Supported
Queue 8
Trust Mode
CoS/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR
Bandwidth Control
Port-based bandwidth control
(Ingress/Egress)
Web Graphical User Interface (GUI)
HTTP IPv4
HTTPS IPv4
System Time
Time Setting / Daylight Saving
Layer 2 Features
802.1w Rapid Spanning Tree
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x Flow Control
Voice VLAN
Port-based VLAN
CoS Mapping
IPv4 Settings
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast
Environmental & Physical
Operating Temperature
32°F to 104°F (0°C to 40°C)
Humidity (non-condensing)
5 to 95% non-condensing
Dimensions & Weights
Package Contents
1 x Cloud Lite Multi-Gigabit Switch
1 x Wall Mount Kit
1 x Quick Installation Guide
1 x Rubber Feet Cushion
ECS208L Device
Weight: 0.99 lbs. (0.45 kg)
Width: 4.13” (105 mm)
Length: 6.69” (170 mm)
Height: 1.06” (27 mm)
ECS208L Packaging
Weight: 1.25 lbs. (0.57 kg)
Width: 6.57” (167 mm)
Length: 7.87” (200 mm)
Height: 3.54” (90mm)
Compliance & Warranty
Regulatory Compliance
FCC Part 15 (Class B)
IC
CE EMC (Class B)
RCM
Cloud Lite Warranty
2 Years
Certifications
CE
FCC
IC
